Pinnacle Systems, Inc. TARGA 3000 Cookbook

TARGA 3000 Configuration Cookbook
11/25/2002 36

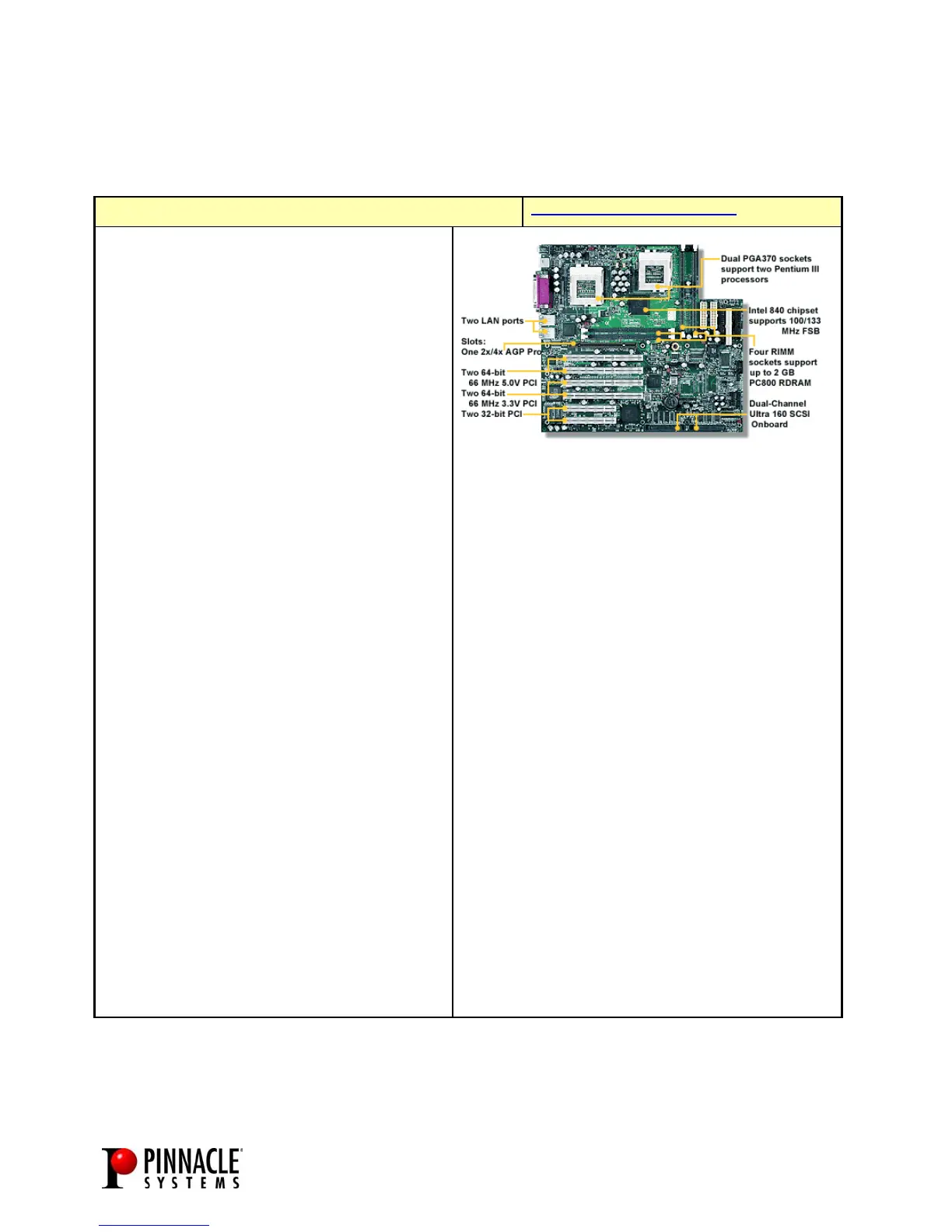

4.10 TYAN THUNDER i840 (S2520)
THUNDER i840 (S2520)
THUNDER i840 HOMEPAGE
PERFORMANCE RATING:
3 streams YUV uncompressed
TESTED CONFIGURATION:
+Dual PIII 1GHz 133 Mhz FSB
+512 MB PC800 RDRAM
+Matrox G400 32MB AGP VGA
+Adaptec 29160 SCSI host adapter BIOS
v2.55.0
+Adaptec 39160 Dual Channel SCSI host
adapter
+Qlogic Dual Channel SCSI QLA12160 Host
Adapter
+IWILL DU3160 Dual Channel SCSI Host
Adapter(Dual Channel external connection
requires an additional internal to external
adapter cable.)
+Integrated Intel 82559 Network Controller
+8 Quantum Atlas 10K 9WLS Ultra160m 9 GB
drives
SLOT ASSIGNMENTS:
AGP : Matrox G400 AGP VGA
PCI64-4: Empty
PCI64-3: Empty
PCI64-2: TARGA 3000
PCI64-1: Empty
PCI32-2: Empty
PCI32-1: Empty
Note: PCI64-4 is closest to AGP slot
CONFIGURATION NOTES:
Use PCILOCK boot option when running under
Windows NT 4.0
FEATURES AND SPECIFICATIONS:
Form Factor:
Extended ATX footprint (13" x 12")
Supported Processors:
Dual PGA370 ZIF sockets
Supports two Intel Pentium III processors (FC-PGA)
Onboard VRMs (VRM 8.4 spec)
Front-Side Bus support for 100MHz and 133
Memory Type:
Dual-channel memory bus
Four 184-pin RIMM sockets
Supports up to 2GB PC800 RDRAM
3.2GB/sec maximum memory bandwidth
Chipset:
Intel 840 chipset
MCH + ICH2 + P64H + FWH (4Mb)
Intel P64H to support 64-bit / 66MHz slots
National PC87366 LPC Super I/O chip
I/O Expansion Slots:
One AGP Pro slot supports 2x/4x modes
Two 64-bit / 66MHz (3.3-volt) PCI slots
Two 64-bit / 66MHz (5.0-volt) PCI slots
Two 32-bit / 33MHz (5.0-volt) PCI slots
Integrated Devices:
Adaptec® AIC-7899 Dual channel Ultra160 SCSI
Two Intel® 82559 10/100 LAN controllers
10/100Mbps data transfer rate per controller
Two Ultra DMA (UDMA/100) bus master/EIDE
channels that support an IDE drive data transfer rate of 100 MHz
4 USB (Universal Serial Bus) ports (two onboard connectors and
two headers)
PS/2 keyboard and PS/2 mouse connectors
Two fast UART 16550 compatible serial ports
One ECP/EPP parallel port
One floppy port
Chassis Compatibility:
Extended ATX chassis
