Pioneer PDP-507XA User Manual

PDP-507XD
100
1234
1234
C
D
F
A
B
E

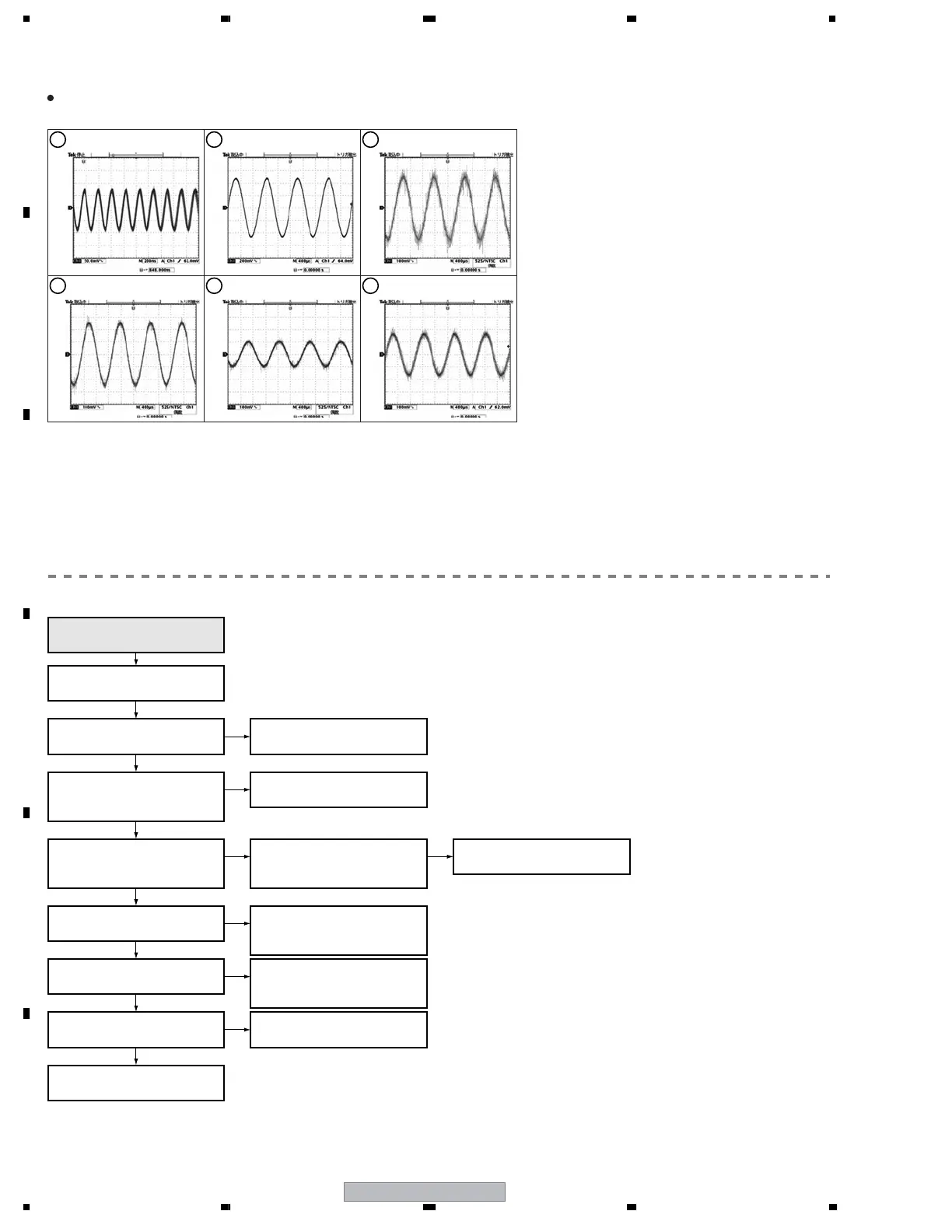

33
IC4402 - pin 21
V: 50 mV/div H: 200 nsec/div
34
IC4402 - pin 29, 30 (AC)
V: 200 mV/div H: 400 µsec/div
35
IC4701 - pin 19, 20 (AC)
V: 100 mV/div H: 400 µsec/div
36
IC4701 - pin 35, 36 (AC)
V: 100 mV/div H: 400 µsec/div
37
IC7101 - pin 1, 2 (AC)
V: 100 mV/div H: 400 µsec/div
38
IC4007 - pin 3, 5 (AC)
V: 100 mV/div H: 400 µsec/div
Waveforms
Input signal: 1kHz
Sound volume is fixed to 25.
Is the power-supply voltage of
CN4002 normal?
Check between CN4002 and
P8 (POWER SUPPLY Unit).
No
Check between IC6301 and
IC7201. Exchange IC6301 if there
is no problem.
No
Check between IC8401 (pin 102,
103) and IC6301 (pin 305, 406).
Exchange IC6301.
No
NG
Replace the MAIN Assy.
Yes
Is the signal from IC6301 to
IC7201?
Yes
Is the signal input from IC7201 to
IC8001?
Yes
Has the symptom been settled
when the MAIN Assy is replaced?
Yes
When power ON, is RESET_DT
(IC8401 - pin 159) Low after
D+3.3V standing up?
Check around IC6902.
No
The panel is defective.
No
Yes
Check between IC7201 and
IC8001. Exchange IC6301 if there
is no problem.
No
Do you communicate by TXD_DT
(IC8401: 103) and RXDDT
(IC8401: 102)?
Yes
Yes
DTV (Digital Terrestrial Video)
doesn't operate.
⇒ DTV
DTV doesn't work
Finishing troubleshooting.

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
