Pioneer PDP-507XA User Manual

PDP-507XD
103
5678
56
7
8
C
D
F
A
B
E

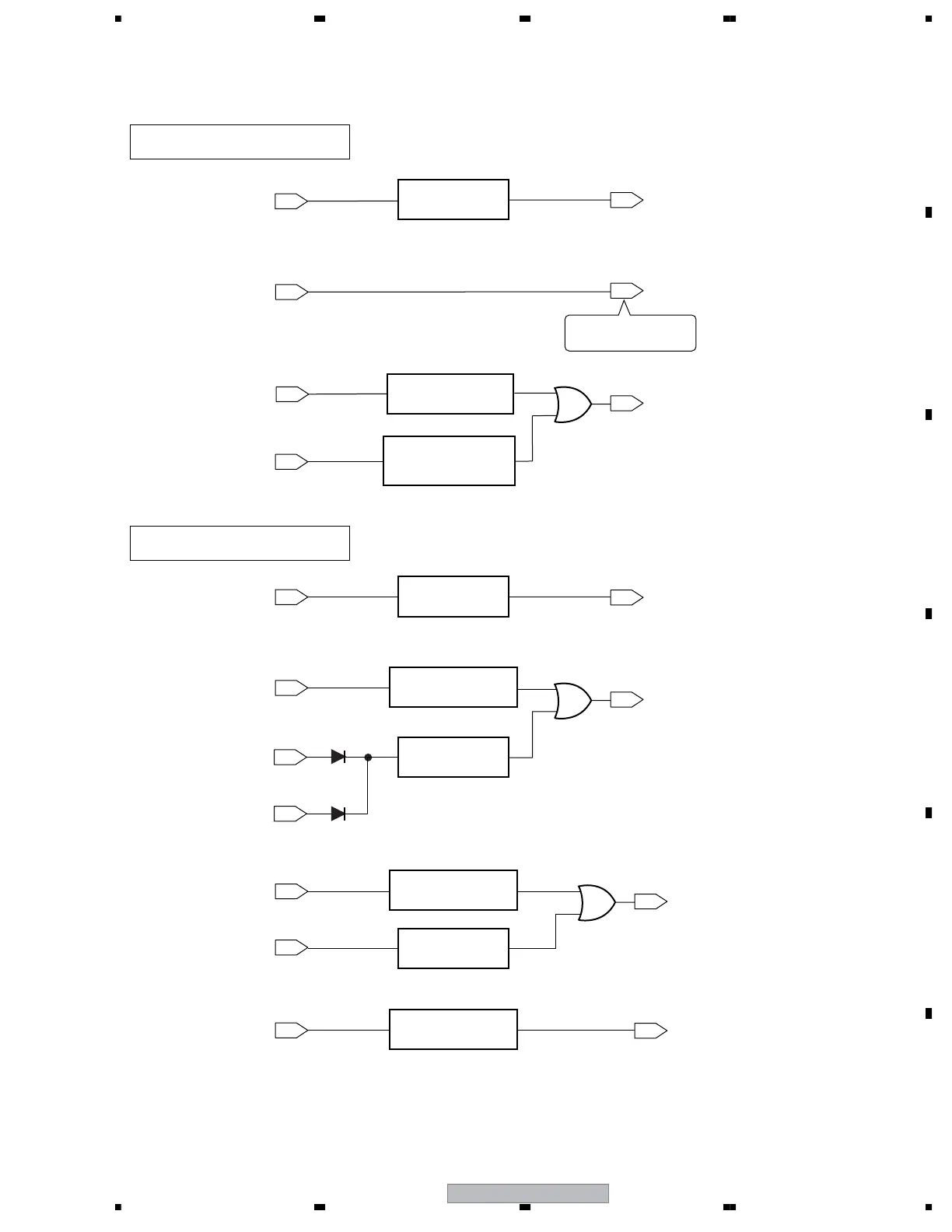

Resonance center
electric potential
Resonance center
electric potential
Operation detection
(Increase or decrease
voltage detection)
16.5V
VRN
VF15V
XSUS_PD
XDRIVE_PD
XDD_PD
X Drive PD system
Y Drive PD system
IC5V
SCAN bridge (upper)
connector disconnection
detection
SCAN bridge (lower)
connector disconnection
detection
VOFS
VPrst
VH
Y_DD_PD
SCAN_PD
SCN5V_PD
YSUS_PD
Detects disconnection
of flexible cables.
Increase or decrease
voltage detection
Increase or decrease
voltage detection
Increase or decrease
voltage detection
Increase or decrease
voltage detection
Overvoltage
detection
Voltage
detection
Reference voltage
comparison
Reference voltage
comparison

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
