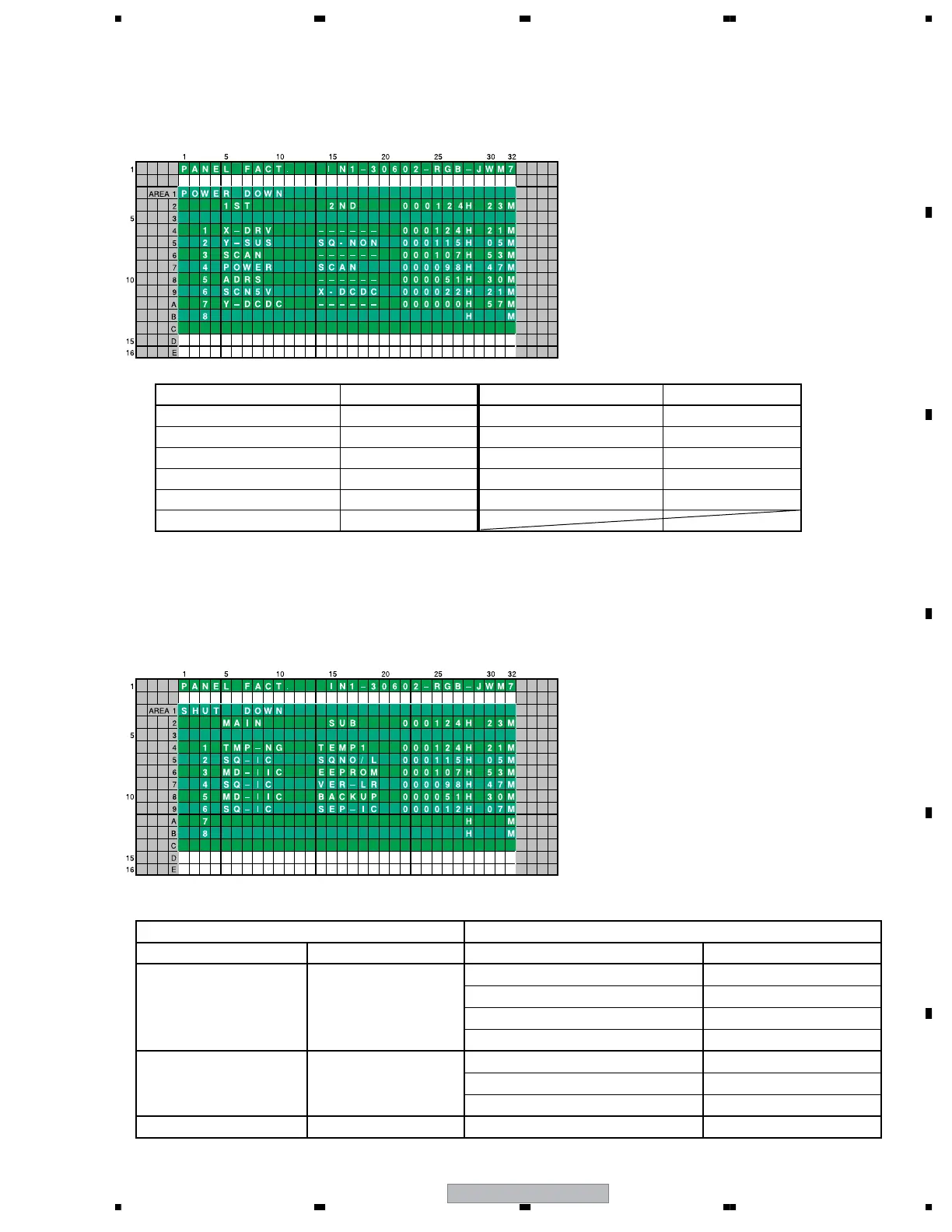

8.2.2.3 POWER DOWN
8.2.2.4 SHUT DOWN
• The power-down history is displayed. The last most 8 power-down histories are displayed with the hour-meter values
that indicate the hours when power-downs occurred. No other layers are nested below this layer, and there are no
adjustment items.
• The shutdown history is displayed. The last most 8 shutdown histories are displayed with the hour-meter values
that indicate the hours when shutdowns occurred. No other layers are nested below this layer, and there are no
adjustment items.
<DOWN> : Shifting to SHUT DOWN
<UP> : Shifting to PANEL WORKS
<L/R> : Updating displayed information
7 Key operation
<DOWN> : Shifting to PANEL-1 ADJ (+)
<UP> : Shifting to POWER DOWN
<L/R> : Updating displayed information
7 Key operation
<Causes of power-down and corresponding OSD indications>
Cause of power-down OSD Indication Cause of power-down OSD Indication
POWER SUPPLY Unit P-PWR
X DRIVE Assy XDRV
SCAN Assy SCAN
DC/DC converter for X drive X-DCDC
5V power for SCAN Assy SCAN5V
YDRV X-drive SUS circuit X-SUS
Y DRIVE Assy
DC/DC converter for Y drive Y-DCDC
Y-drive SUS circuit Y-SUS
Specification inability UNKNOWN
ADDRESS Assy ADRS
* When power-down is confirmed, the factor is displayed as "1st", "2nd", according to the accuracy order.
* The power-down history is not recorded when the power-down occurred at the same place and same time.
* When there is detail information when shutdown occurred, the possible defective part is displayed as Sub information.
Cause of shut-down (MAIN)
Item
OSD Indication
Item OSD Indication
Subcategory of Cause of shut-down (SUB)
Drive Sequence Processing IC
MDU-IIC
High temperature of the panel TMP-NG
MD-IIC
SQ-IC
Communication Error
Drive Sequence Stop
Communication Busy
Version Mismatching
MAIN EEPROM Communication Error
BACKUP EEPROM Communication Error
DAC Communication Error
Temperature NG
RTRY
SQNO
BUSY
VER-HS
EEPROM
BACKUP
DAC
TEMP
<Causes of shut-down and corresponding OSD indications>
