Pioneer PDP-507XA User Manual

PDP-507XD
144
1234
1234
C
D
F
A
B
E

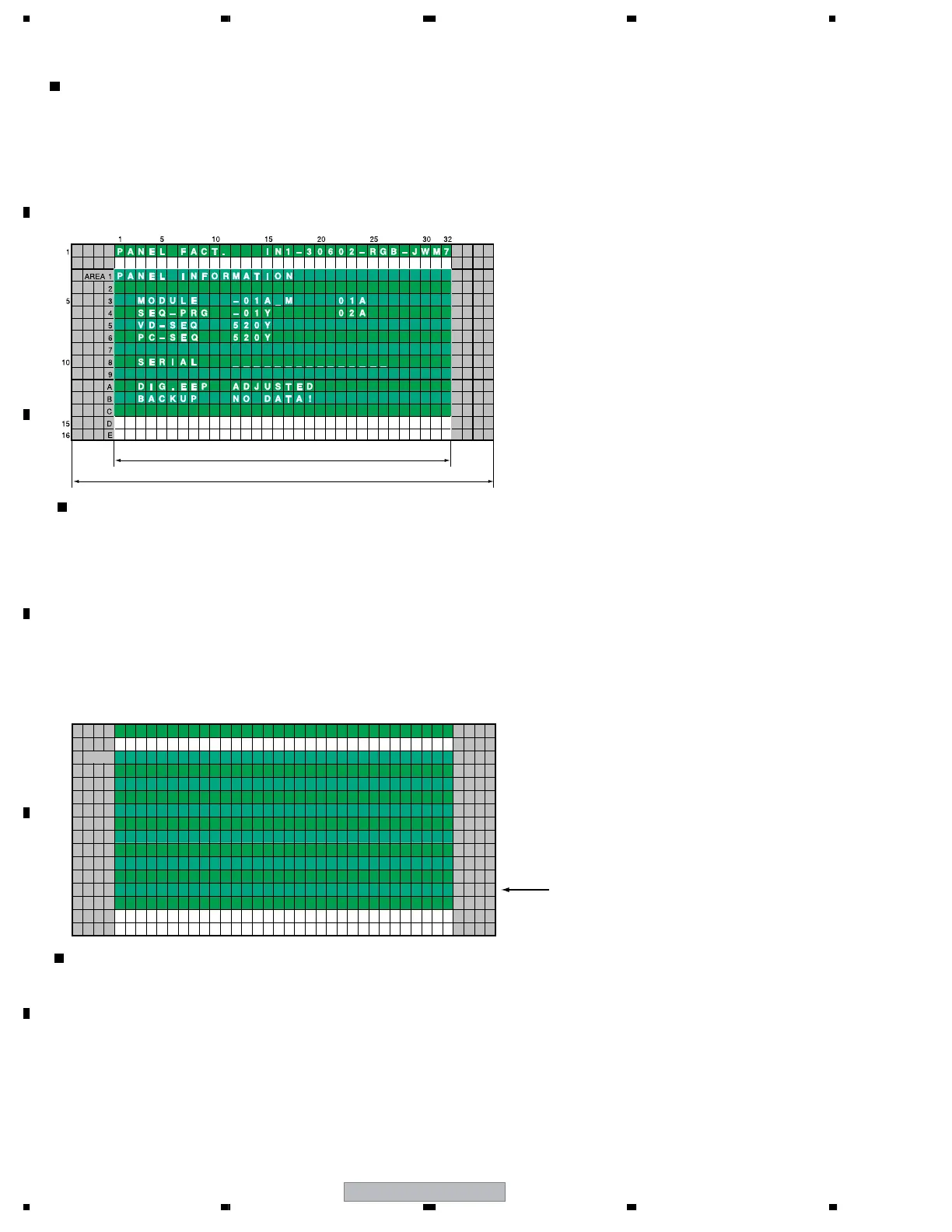

8.2.2.1 PANEL INFORMATION
• Data, such as the version of the microcomputer of the panel, product serial number, and statuses of memories for
adjustment values for the main unit and for backup, are displayed. No other layers are nested below this layer, and
there are no adjustment items.
MODULE : The version of data written in the Module microcomputer (IC3151) is indicated.
SEQ-PRG : The version of data written in the Sequence Program Storage Memory (IC3301) is indicated.
VD-SEQ : The Drive Sequence version for Video mode is indicated.
PC-SEQ : The Drive Sequence version for PC mode is indicated.
SERIAL : The serial number of the module is indicated.
DIG.EEP : The adjusted status of the EEPROM that is mounted on the DIGITAL Assy is indicated.
BACKUP : The adjusted status of the EEPROM for backup that is mounted on the SENSOR Assy is indicated.
• In the following examples, GUI images for a 50-inch model are indicated. Although the display areas for the menu for
42-inch and 50-inch models are different, the items to be displayed are the same.
<DOWN> : Shifting to PANEL WORKS
<UP> : Shifting to COMBI MASK SETUP
(+)
<L/R> : Updating displayed information
7 Key operation
Details of indications in each layer
Display items:
Contents of the Display item
Display area for 42-inch model
Display area for 50-inch model
• PM-B1 to B5: The accumulated pulse-meter counts for the 5 blocks on the screen are indicated.
(the lowest-order digit represents millions of pulses.)
• HR-MTR: The hour-meter value (accumulated power-on hours) is indicated.
• P-COUNT: The accumulated power-on count is indicated.
• TEMP1: The current panel temperature and the historical maximum temperature recorded in memory are indicated.
The range of temperature indication is from -50.0 to +99.9. (The temperature unit is " °C (Centigrade) ".)
• Data on operations, such as the accumulated pulse-meter counts, hour-meter count, power-on count, and temperature
detected by the sensor, are sent back. No other layers are nested below this layer, and there are no adjustment items.
8.2.2.2 PANEL WORKS
<DOWN> : Shifting to POWER DOWN
<UP> : Shifting to PANEL INFORMATION
<L/R> : Updating displayed information
7 Key operation
A.PNEL
APNEL OWRKS
MP–B1 000 00
MP–B2 000 00
751
67
M
M0
000 00
000 00
825
68
M
M6
000 0073M3
000 205 0M2H
MP–B3
MP–B4
MP–B5
–PCOU TN00000059ITMSE
ETMP1 +2 4.7+78.0/
RH–MTR
FACT
I–N1 3 2060 –RGB WJ–M7
1
5
10
15
16
15 10 15 20 25 30 32
1
2
3
4
5
6
7
8
9
A
B
C
D
E
AREA
Temperature unit is " °C (Centigrade) ".

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
