BT37 MarkII: Service Manual MA200606 1.0.0
Component replacement

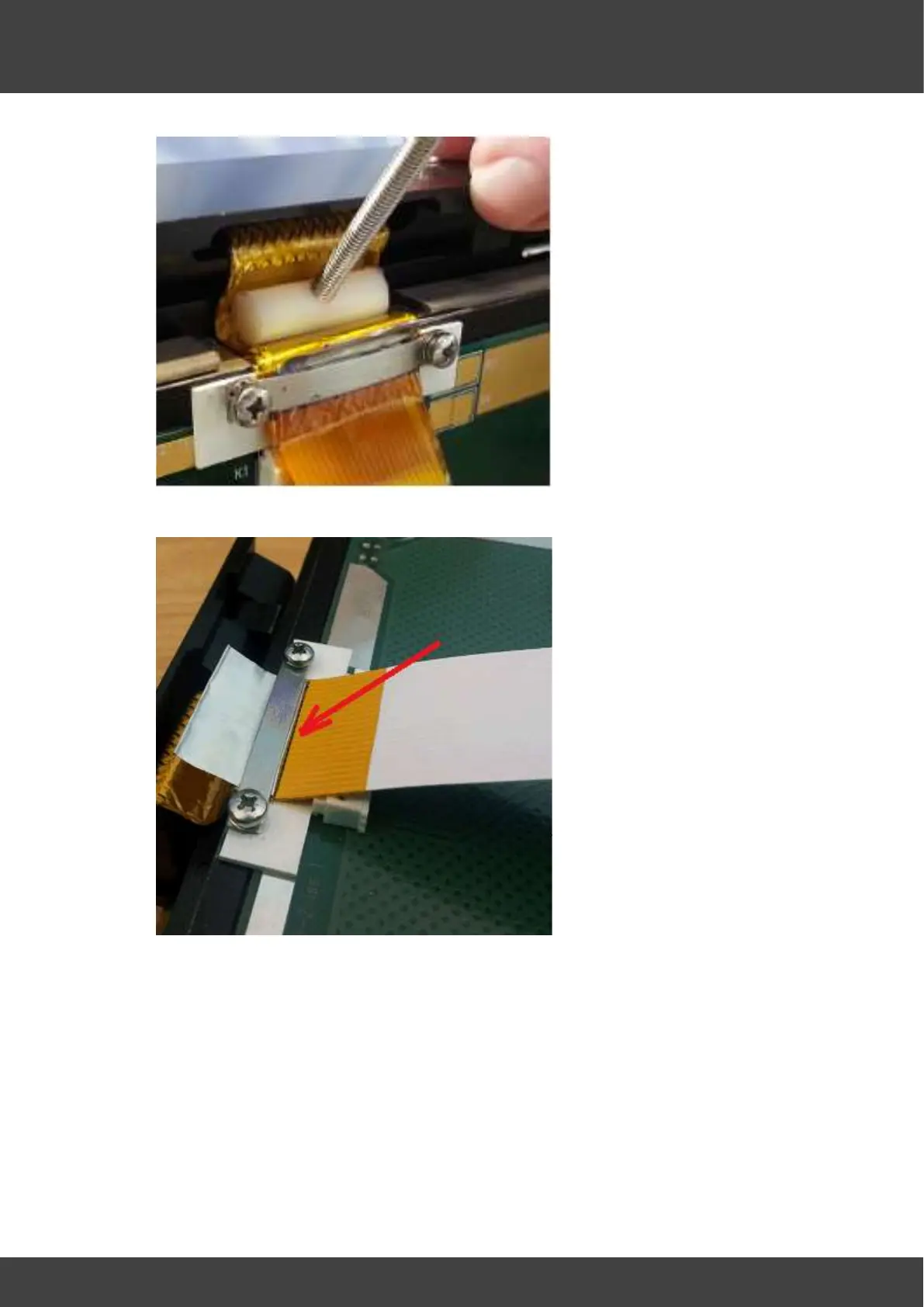

Fig.11 - Showing how to route ribbon cable
Fig.12 - Position of FCC cable mark (tinned copper fold)
18. Tear off excess tinned copper tab as shown in fig.13
