Planet HDVR-430 User Manual

 HybridDigitalVideoRecorder
HDVRseries


14

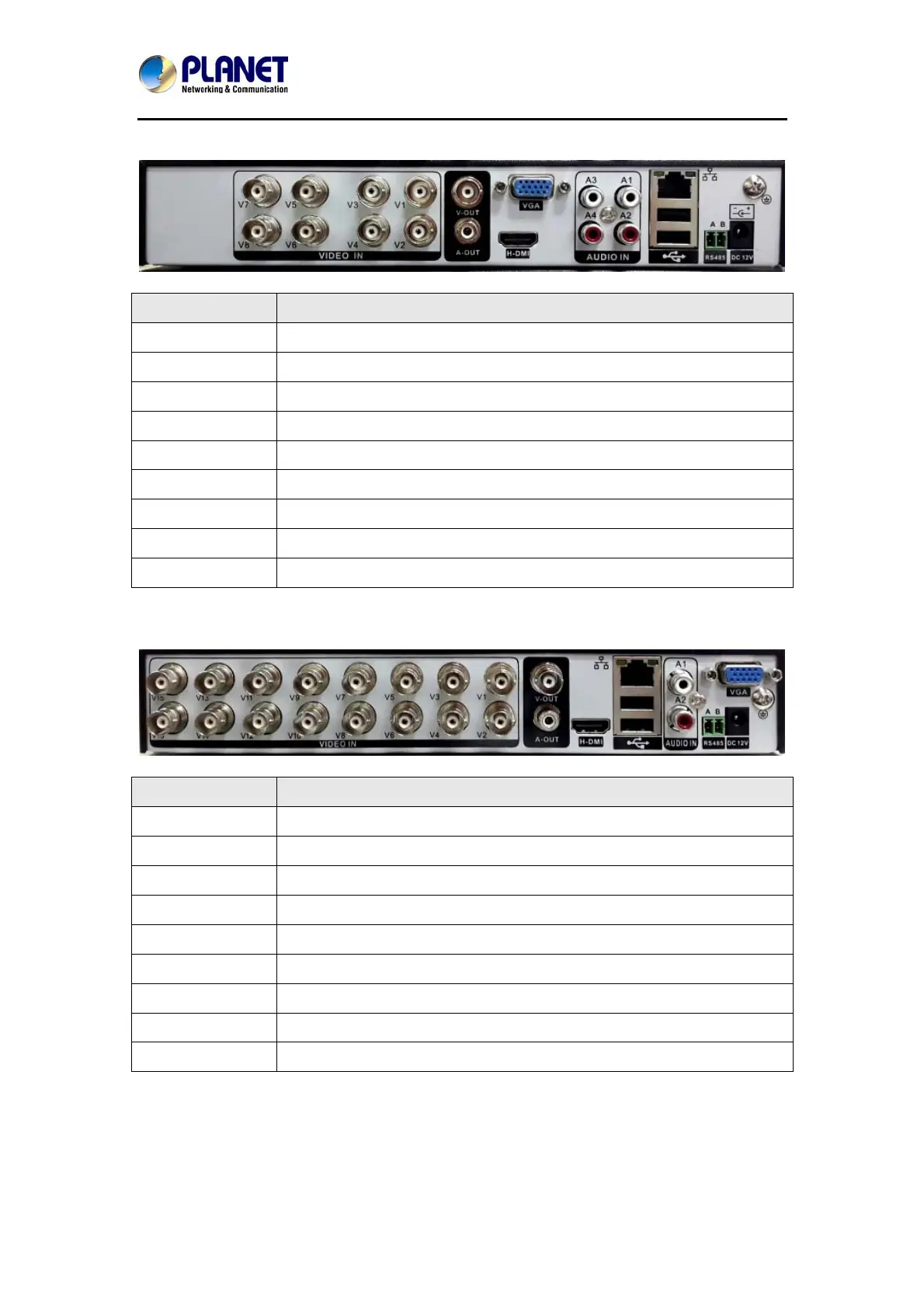

HDVR-830 Real Panel
Co nector n Description
V1 V8 ‐
Composite video signal（CVBS) input interface
A1‐A4
The input interface of the audio signal
V-OUT
Composite video（CVBS) output interface
A-OUT The output interface of the audio signal
LAN The network interface of RJ-45
HDMI The output interface of the HDMI video signal
VGA The output interface of the VGA video signal
DC 12V 12V/ 2A DC power
485+/485‐
The interface of the alarm input, the alarm output and RS-485
HDVR-1630 Real Panel
Co nector n Description
V1 V16 ‐
Composite video signal（CVBS) input interface
A1‐A4
The input interface of the audio signal
V-OUT
Composite video（CVBS) output interface
A-OUT The output interface of the audio signal
LAN The network interface of RJ-45
HDMI The output interface of the HDMI video signal
VGA The output interface of the VGA video signal
12V DC 12V/ 2A DC power
485+/485‐
The interface of the alarm input, the alarm output and RS-485
