HybridDigitalVideoRecorder
HDVRseries
13
Chapter 2. Hardware Interface

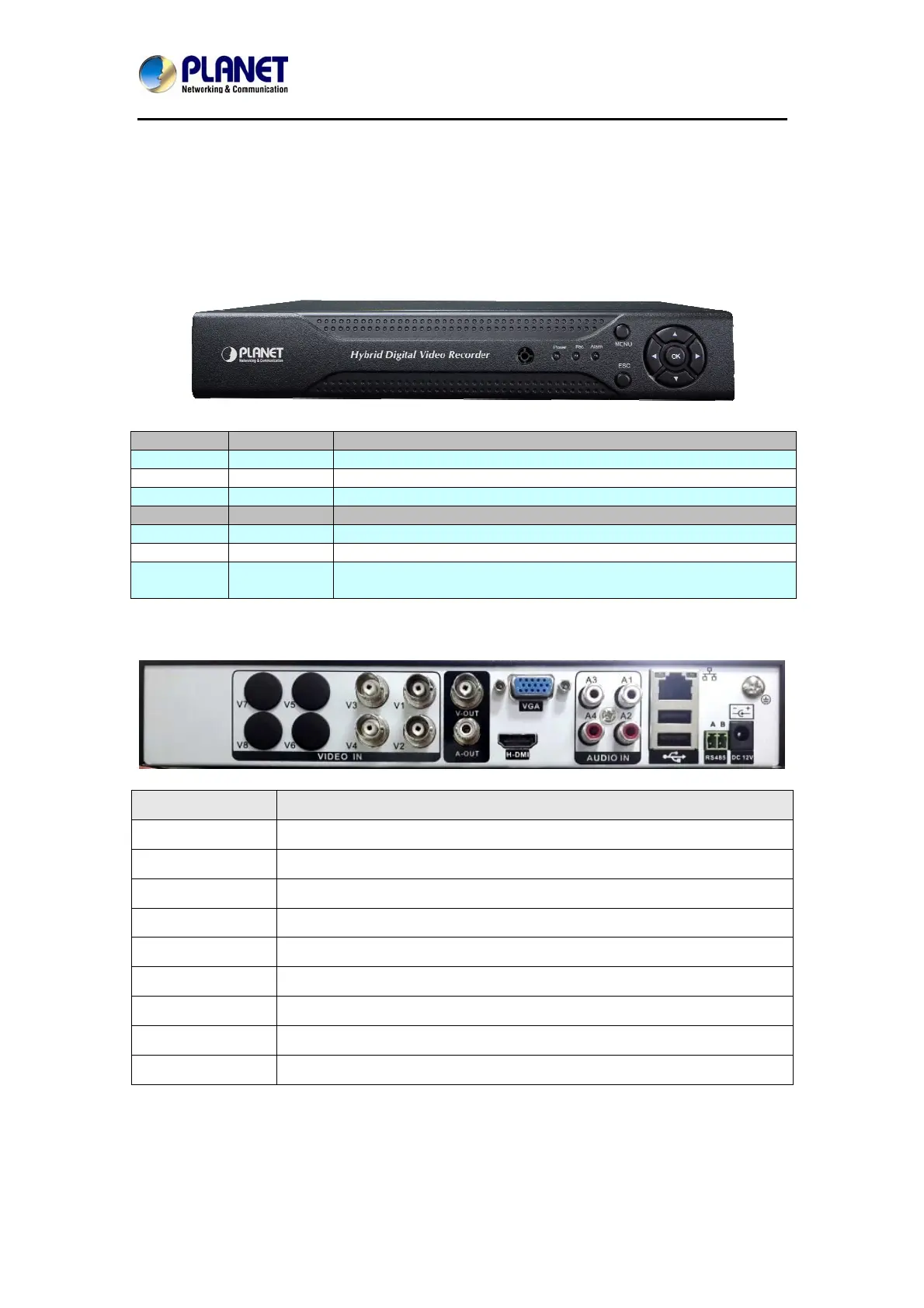

2.1 Physical Descriptions
Front Panel
LEDs
Status Definitions
Alarm Red Event action
Rec Green Normal operation
Power Red System on
Buttons
Status Definitions
Menu Setup Press to enter main menu
ESC Return Press to return to previous page
Direction &
OK
Control and
Enter
Press to select and enter
HDVR-430 Real Panel
Co nector n Description
V1 V4 ‐
Composite video signal（CVBS) input interface
A1‐A4
The input interface of the audio signal
V-OUT
Composite video（CVBS) output interface
A-OUT The output interface of the audio signal
LAN The network interface of RJ-45
HDMI The output interface of the HDMI video signal
VGA The output interface of the VGA video signal
12V DC 12V/ 2A DC power
485+/485‐
The interface of the alarm input, the alarm output and RS-485
