User Manual of VDR-300NU
STEP 2. Connect the Power Adapter to the VDR-300NU. Check whether the PWR LED on the front panel
are on accordingly. Figure3-1 shows the power adapter connection diagram.

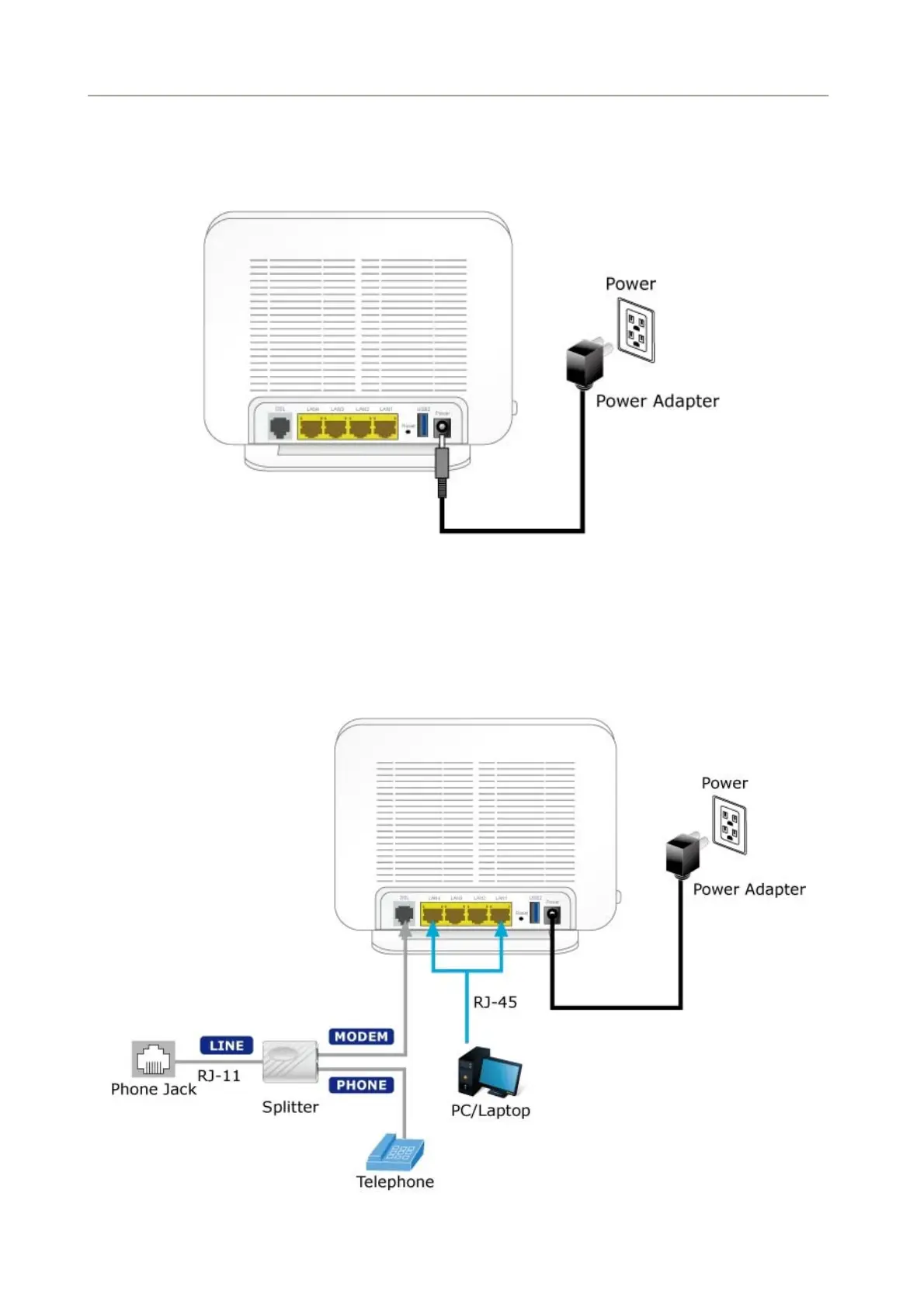

Figure 3-1: VDR-300NU Power Adapter Connection Diagram
STEP 3. Use Ethernet cable to connect “LAN” port of the router and “LAN” port of your computer.
Follow Figure 3-2 to connect the network devices.
Figure 3-2: VDR-300NU Connection Diagram
