User Manual of VDR-300NU
Chapter 3. Connecting to the Router
3.1 System Requirements
 Broadband Internet Access Service (Cable/xDSL/Ethernet connection)
 One Cable/xDSL Modem that has an RJ-45 connector (not necessary if the Router is connected
directly to the Ethernet.)
 PCs with a working Ethernet Adapter and an Ethernet cable with RJ-45 connectors
 PCs running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC OS 9 or later, Linux,
UNIX or other platforms are compatible with TCP/IP protocols
 The above PCs are installed with Web browser
1. The Router in the following instructions is named as PLANET VDR-300NU.
2. It is recommended to use Internet Explorer 8.0 or above to access the Router.
3.2 Installing the Router
Please connect the device to you computer as follows:
STEP 1. Connect the DSL port of the router and the Modem port of the splitter with a telephone cable;
connect the phone to the phone port of the splitter through a cable; and connect the incoming line
to the Line port of the splitter.

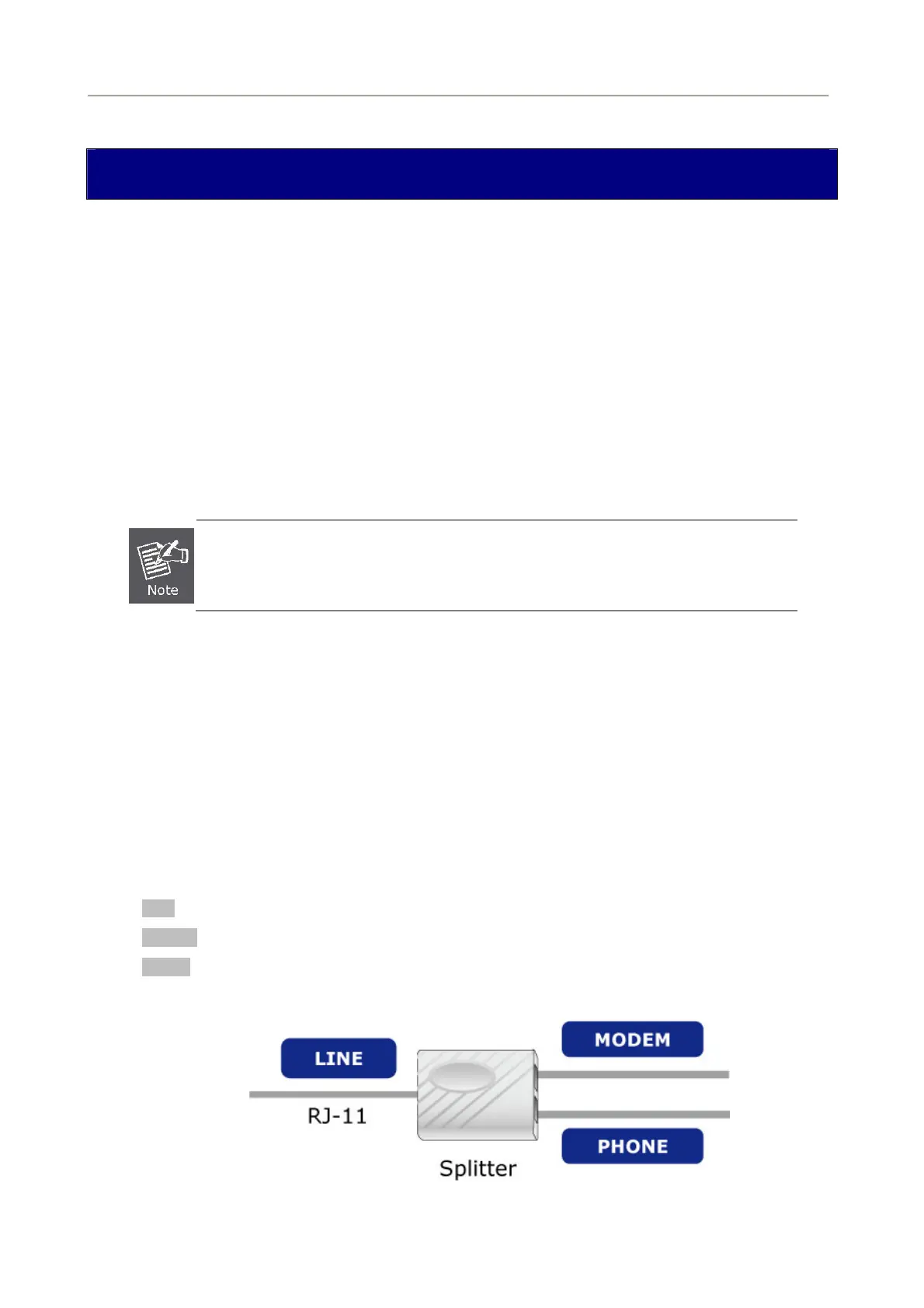

The spliiter has three ports:
Line: Connect to a wall phone jack (RJ-11 jack)
Modem: Connect to the Line interface of the router
Phone: Connect to a telephone set
