User Manual of VDR-300NU

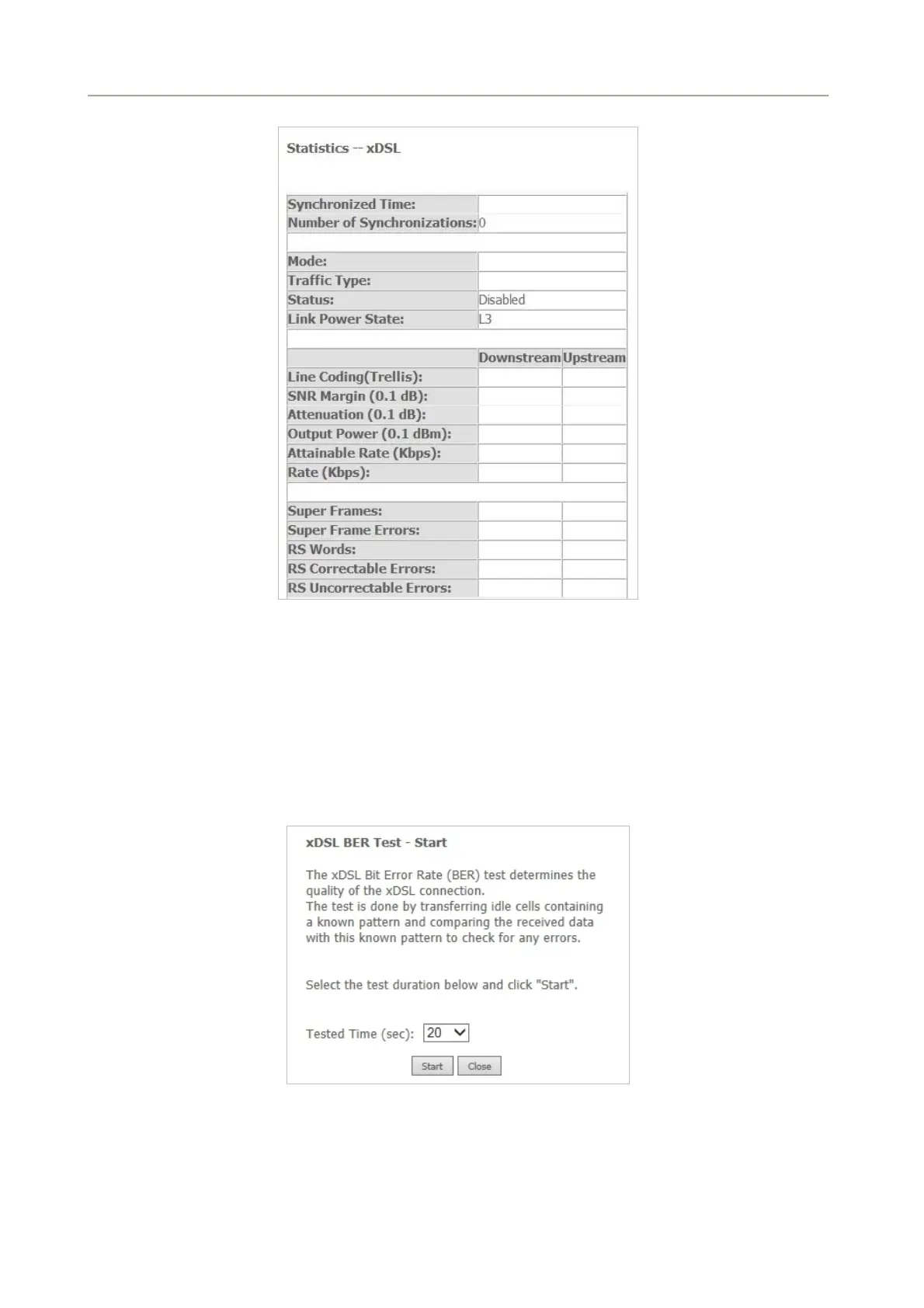

Figure 5-1-7
On this page, you can view the statistical information about the received and transmitted data packets of
the xDSL interfaces.
 xDSL BER Test
Click xDSL BER Test to perform a bit error rate (BER) test on the DSL line. The test page is as follows:
Figure 5-1-8
The Tested Time (sec) can be 1, 5, 10, 20, 60, 120, 180, 240, 300, or 360. Select a time in the drop-down list
and click Start. The following pages appear.
33
