User Manual of VDR-300NU

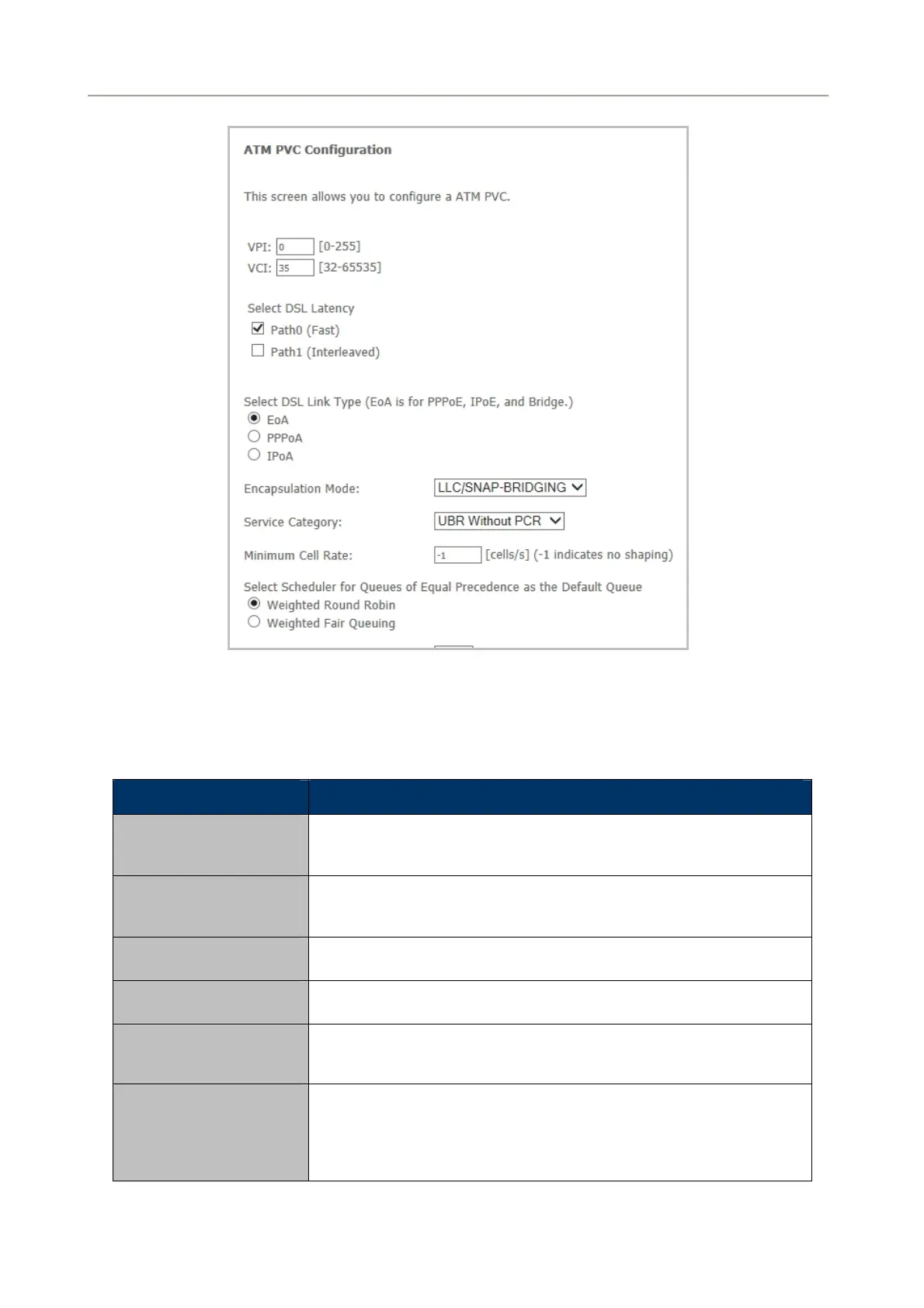

Figure 5-2-3
On this page, you can enter this PVC (VPI and VCI) value, and select DSL link type (EoA is for PPPoE,
IPoE, and Bridge.), encapsulation mode and service category.
Object Description
VPI (Virtual Path
Identifier)
The virtual path between two points in an ATM network, and its valid
value is from 0 to 255.
VCI (Virtual Channel
Identifier)
The virtual channel between two points in an ATM network, ranging
from 32 to 65535 (1 to 31 are reserved for known protocols).
DSL Link Type
EoA (It is for PPPoE, IPoE, and Bridge), PPPoA, or IPoA
Encapsulation Mode
LLC/SNAP-BRIDGING, or VC/MUX
Service Category
UBR Without PCR, UBR With PCR, CBR, Non Realtime VBR,
Realtime VBR.
Select Scheduler for
Queues of Equal
Precedence as the
Default Queue
Weighted Round Robin or Weighted Fair Queuing.
Click Apply/Save to save the configuration.
