2.1.3 The Bottom Panel – Port
The Bottom panel provides the physical connectors connected to the power adapter and any other network

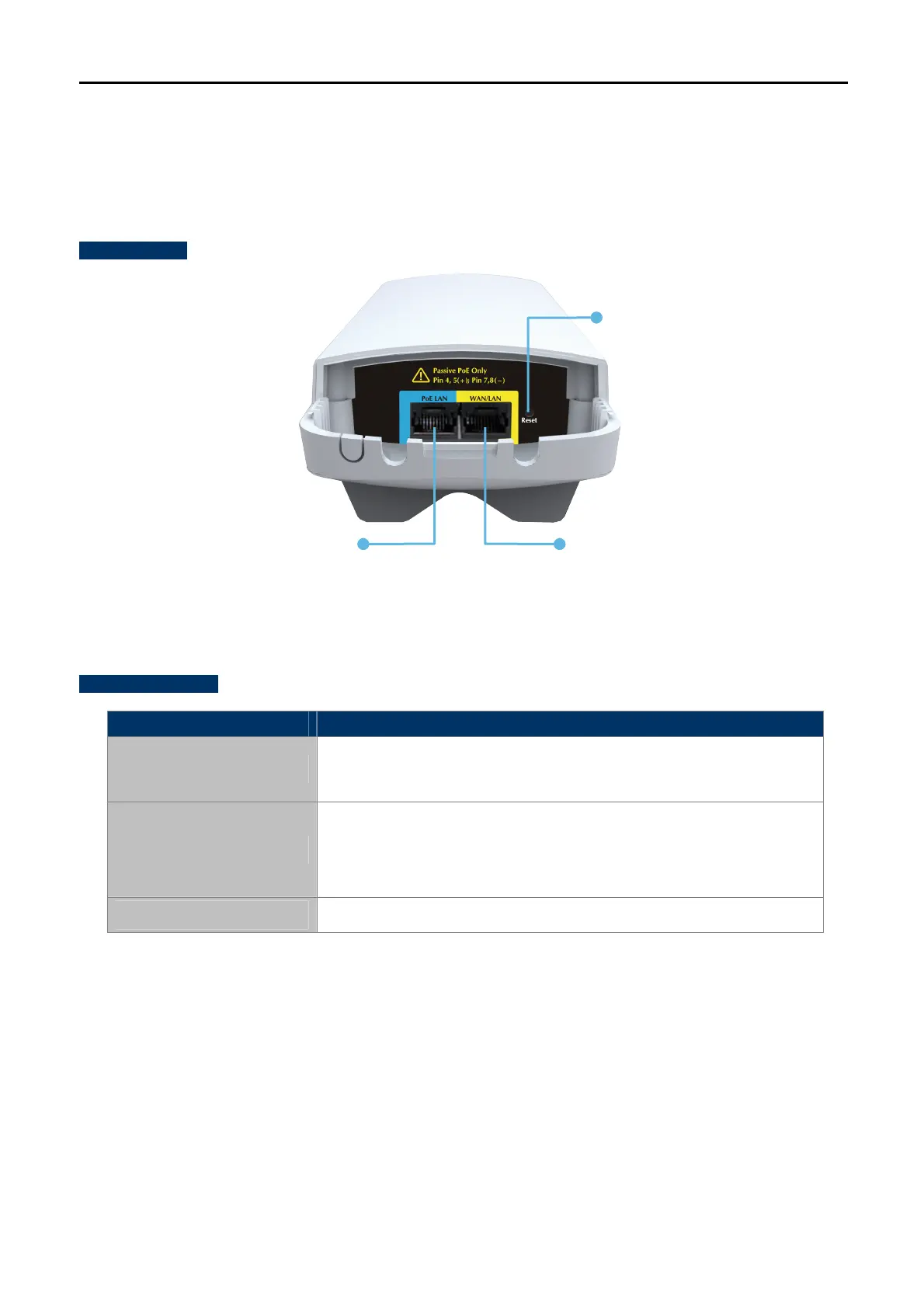

devices. Figure 2-5 shows the Bottom panel of WNAP-7320.
Bottom Panel
Figure 2-5 Bottom Panel
Interface definition
Interface Description
LAN (Passive PoE)
10/100Mbps RJ-45 port , Auto MDI/ MDI-X & Passive PoE supported
Connect LAN port to the PoE injector to power on the device.
WAN/LAN
10/100Mbps RJ-45 port , Auto MDI/ MDI-X
Connect this port to the xDSL modem in router mode.
Connect this port to the network equipment in bridge mode.
Reset Press Reset button over 5 seconds to return factory default setting.
Table 2-2 The Interface indication
Reset
WAN (Router Mode)
LAN (Bridge Mode)
LAN (Passive PoE)
Pin4,5(+); Pin 7, 8(-)
