5.3.3.1. AP Router (AP+Router)
In the Access Point Mode with Router Function, WNAP-7320 acts as central connection point, which wireless
clients can connect to. The DHCP & NAT is enabled, so the clients wirelessly connected to WNAP-7320 can
share the internet connection by connecting WNAP-7320 to a DSL/Cable modem.
1. Connect the LAN port of WNAP-7320 to the POE port of the PoE Injector with an Ethernet cable.
2. Connect the DSL/Cable Modem to the WAN port of the WNAP-7320.
3. Plug one end of the power cord into the PoE Injector, and the other end in electrical socket.
4. Go to “Advanced-> Operation Mode” to configure it to AP Router Mode.

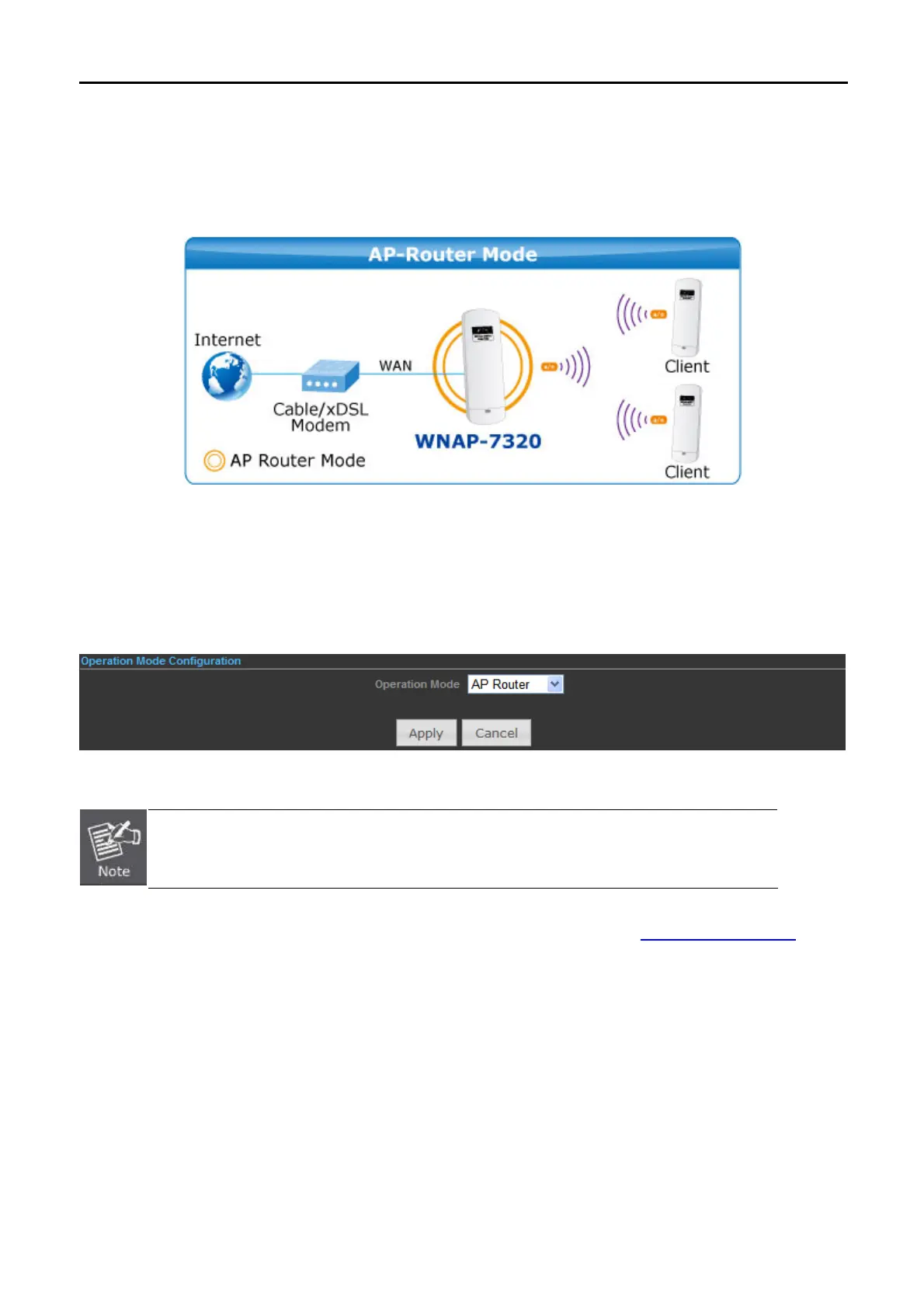

Figure 5-3-22
In this mode, the LAN2 of the WNAP-7320 works as the WAN port.
To configure the Wireless Settings of AP Router Mode, please refer to the section 5.6 Wireless Settings
.
5.3.3.2. AP Bridge (AP+WDS)
In the Access Point Mode with WDS Function, WNAP-7320 function likes a central connection for any stations or
clients. Stations and Client must configure the same SSID and Security Password to associate within the range.
WNAP-7320 supports 2 different SSIDs to separate different clients at the same time.
