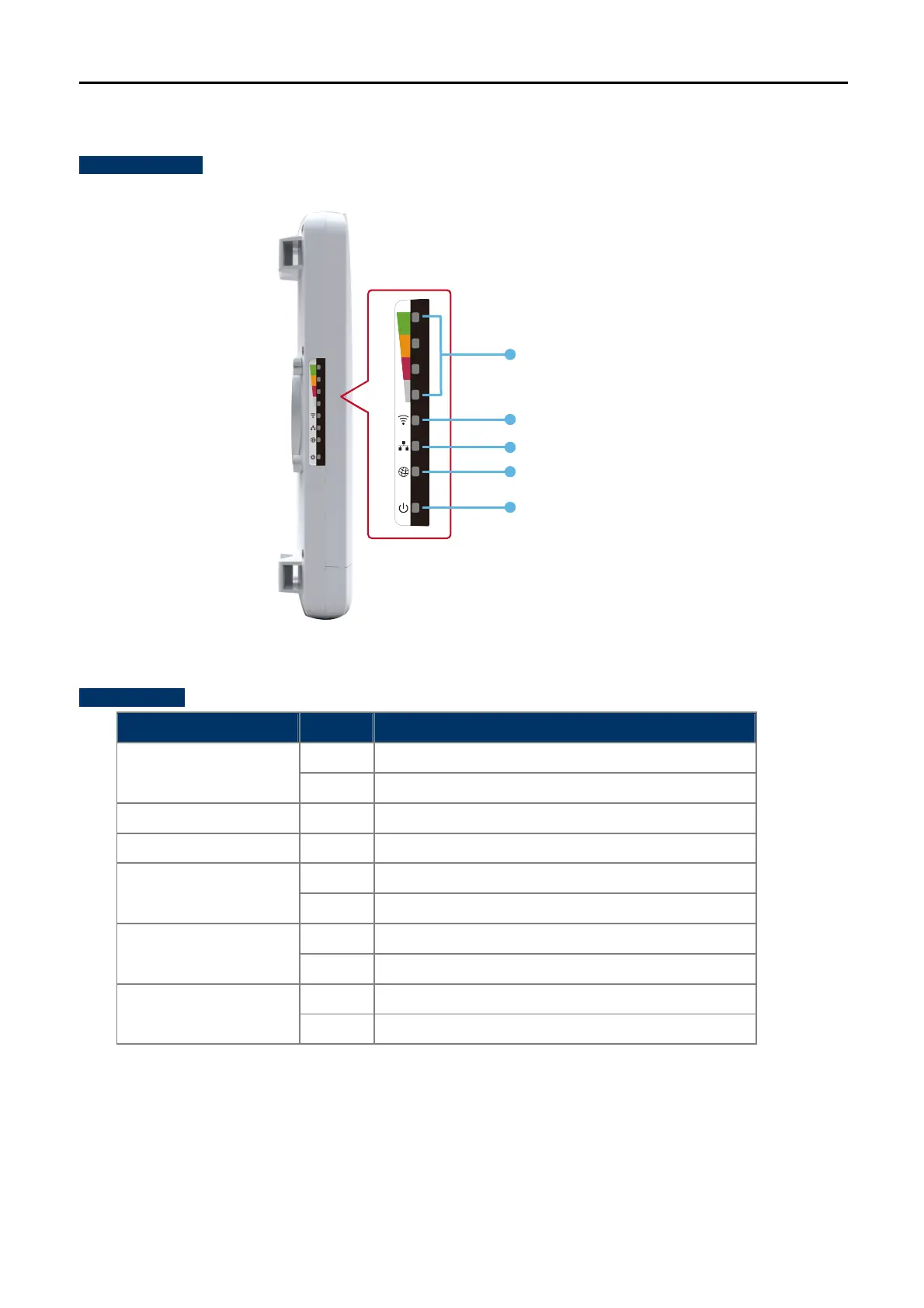

2.1.1 The Side Panel – LED
Side Panel - LED
Figure 2-2 LED
LED definition
LED State Meaning
On System On
Power
Off System Off
Signal Indicator
On Indicates the wireless signal strength of remote AP
(Client/Repeater Mode)
Off No remote wireless signal
On Wi-Fi On
Wireless
Off Wi-Fi Off
On Port linked.
WAN Port
Off No link.
On Port linked.
LAN Port
Off No link.
Table 2-1 The LED indication
Signal Indicator
Wireless LED
LAN Port LED
WAN Port LED
Power LED
