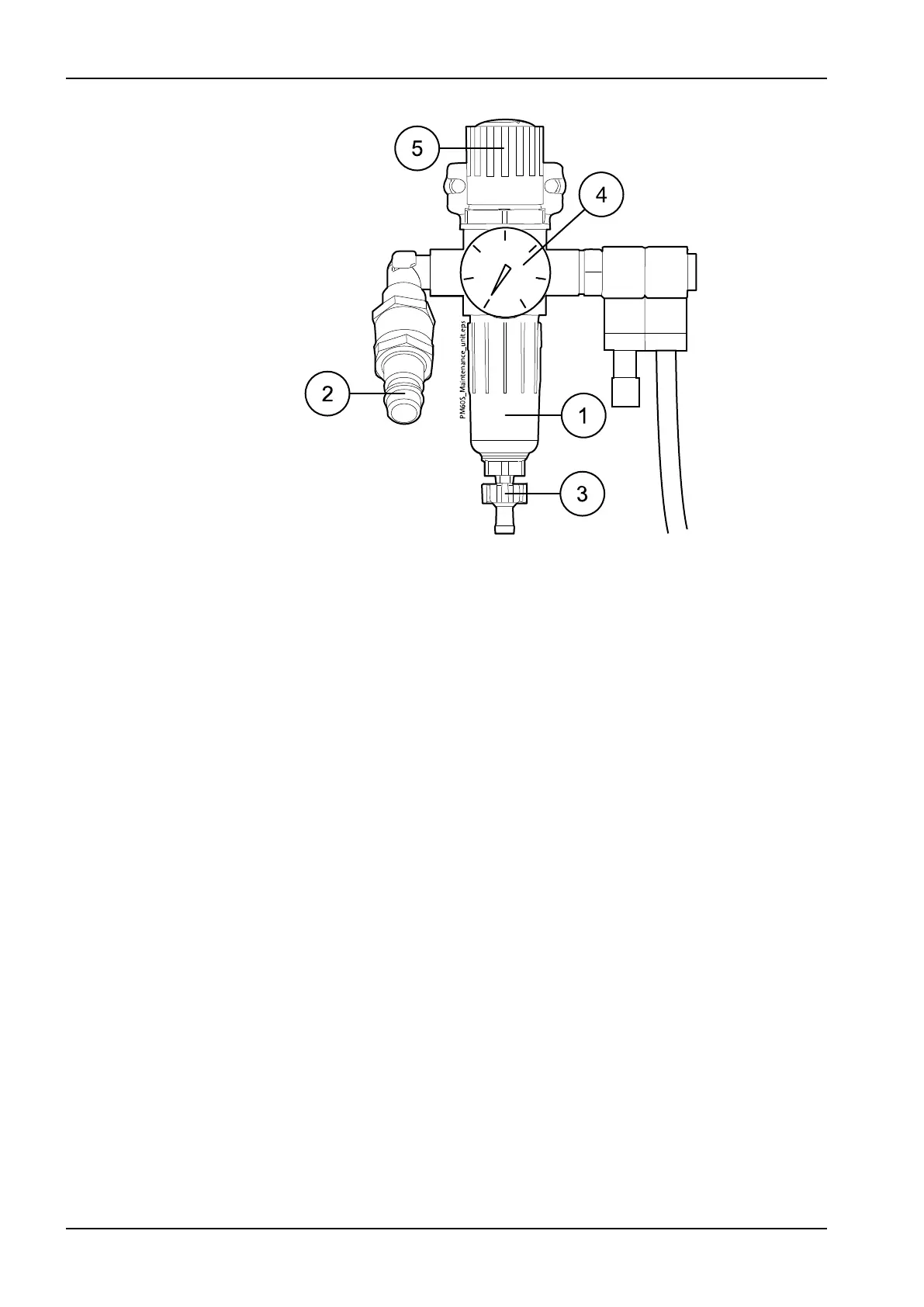

1 Condensate container
2 Compressed air connection (plug-in nipple NW 7.2 (quick
connection)
3 Condensate outlet (tightens/loosens manually)
4 Pressure display (bar)
5 Pressure regulator
9 Planmeca 60 S milling unit
28 Planmeca PlanMill 60 S User's manual
