21.3 Space requirements
21.3.1 Operating space requirements
Operating space (dry milling used)

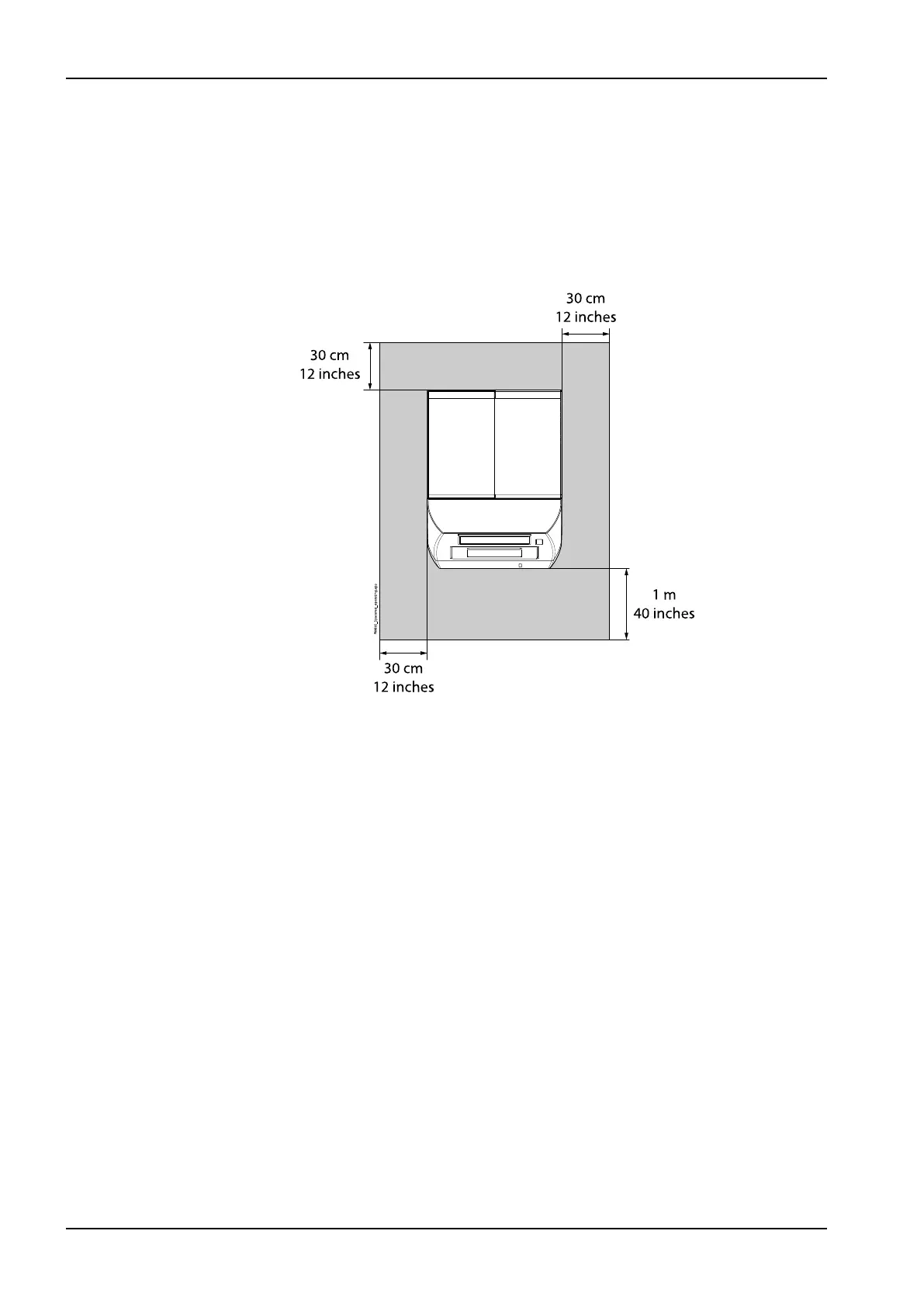

If dry milling is used, the milling unit must be positioned for operation as
shown in the figure below; distance of 1 meter (40 inches) in front, and 30
cm (12 inches) on other sides of the unit must be available as a minimum.
21 Technical information
96 Planmeca PlanMill 60 S User's manual
