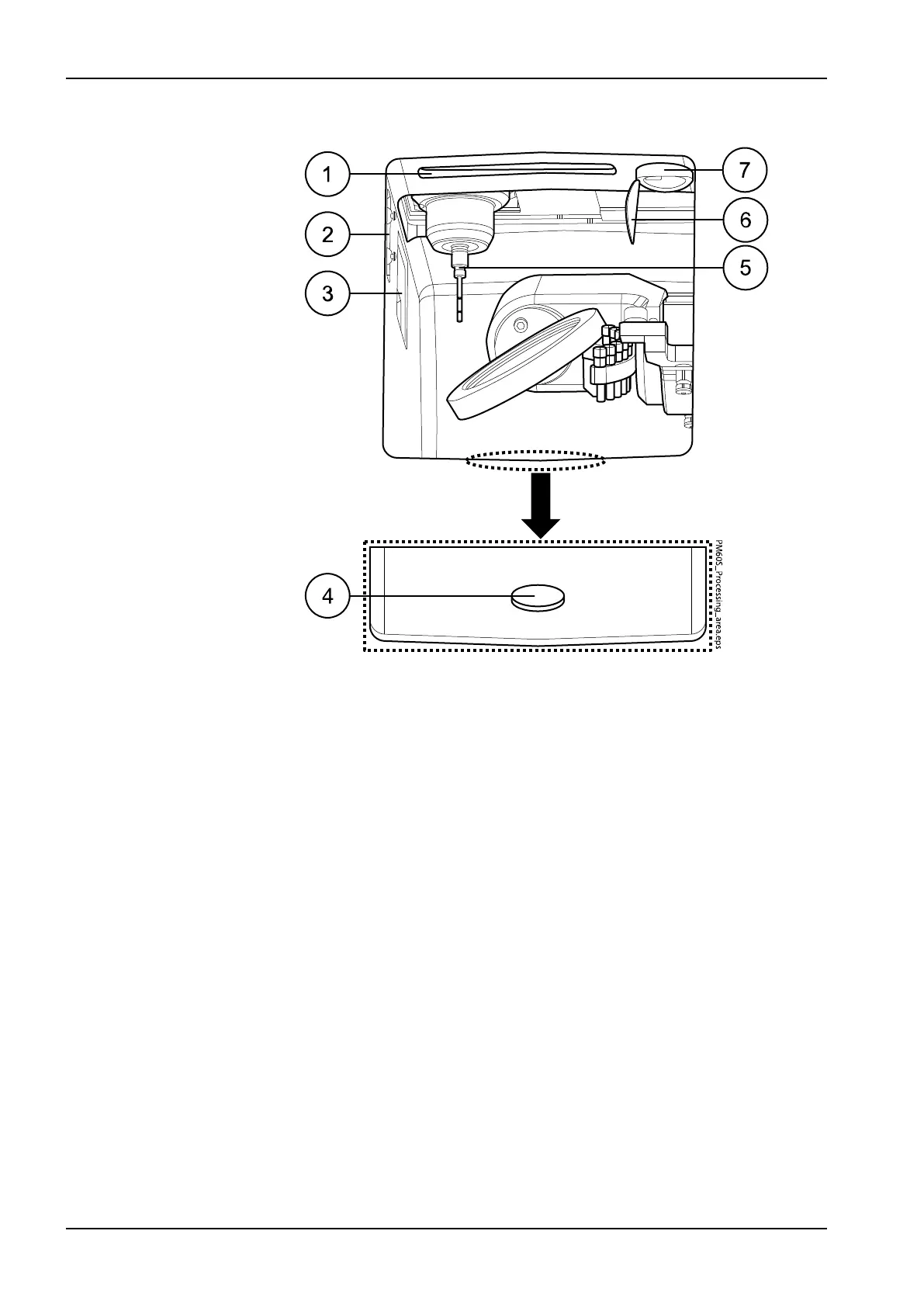

9.4 Processing area
1 Workspace lighting
2 Electronic connections for automatic calibration
3 Suction nozzles
4 Coolant lubricant runoff
5 Machining spindle
6 Ionizer seal
7 Ionizer
9.5 Workpiece holder with tool magazine
The milling unit’s tool magazine contains a total of 10 tool positions for
ready-ringed tools. The arrangement of the tool positions (1) is shown in
the figure below. Next to the tool positions is a length measuring probe
(3), which is used to measure the length of the tool currently in use. The
workpiece holder (2) and the tool magazine are structurally combined in one
assembly.
9 Planmeca 60 S milling unit
30 Planmeca PlanMill 60 S User's manual
