9.7 Axis arrangement

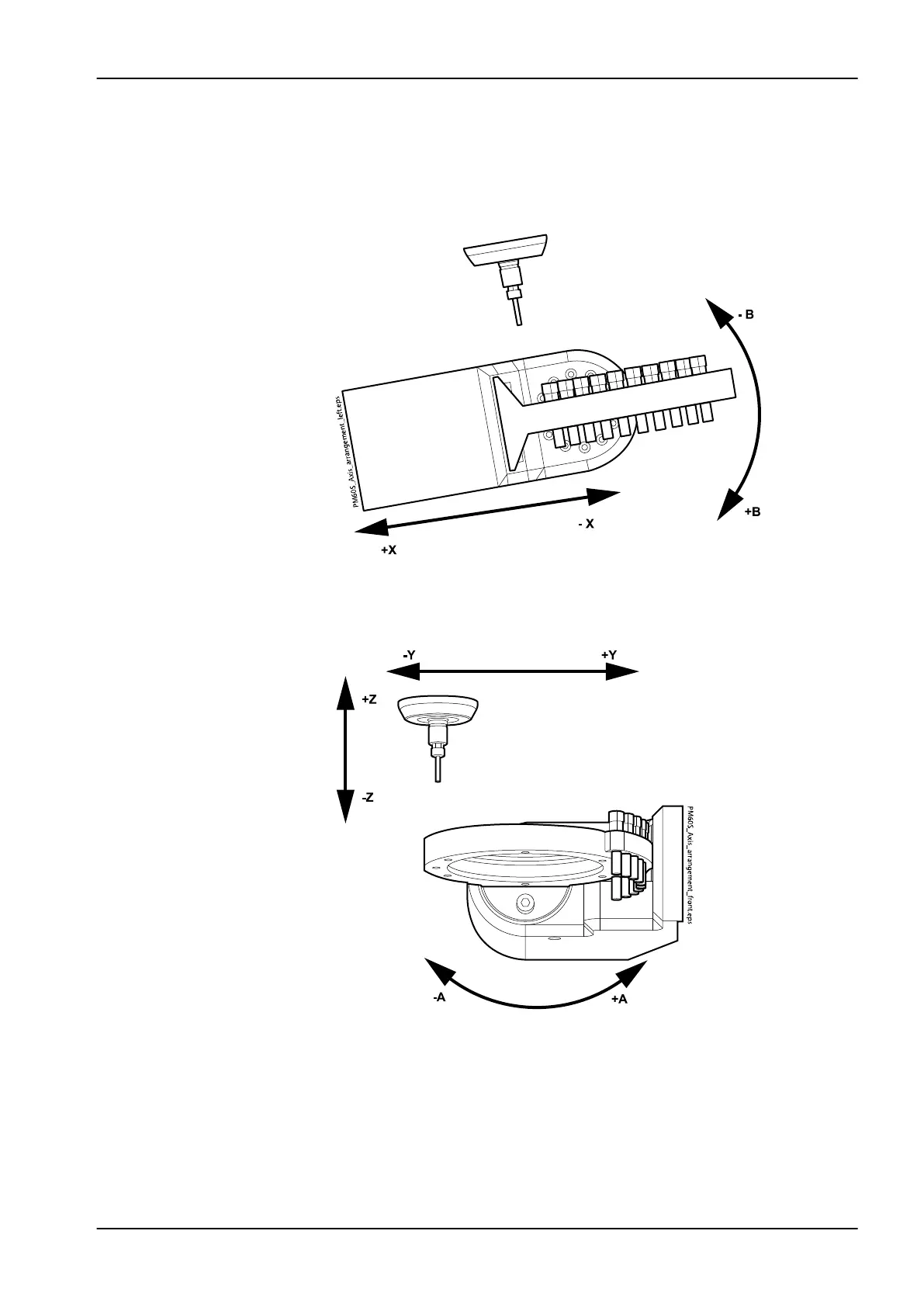

9.7.1 View of axis arrangement
View from left
View from front
9.7.2 Coordinate system
The linear axes are labelled with the letters X, Y and Z.
Rotary axes and swivel axes are generally labelled with the letters A, B, and
C.
