Planmeca Proline CC - Page 84

Chapter D - ADJUSTMENT & CALIBRATION
D-42 Planmeca Proline CC panoramic x-ray
Technical Manual

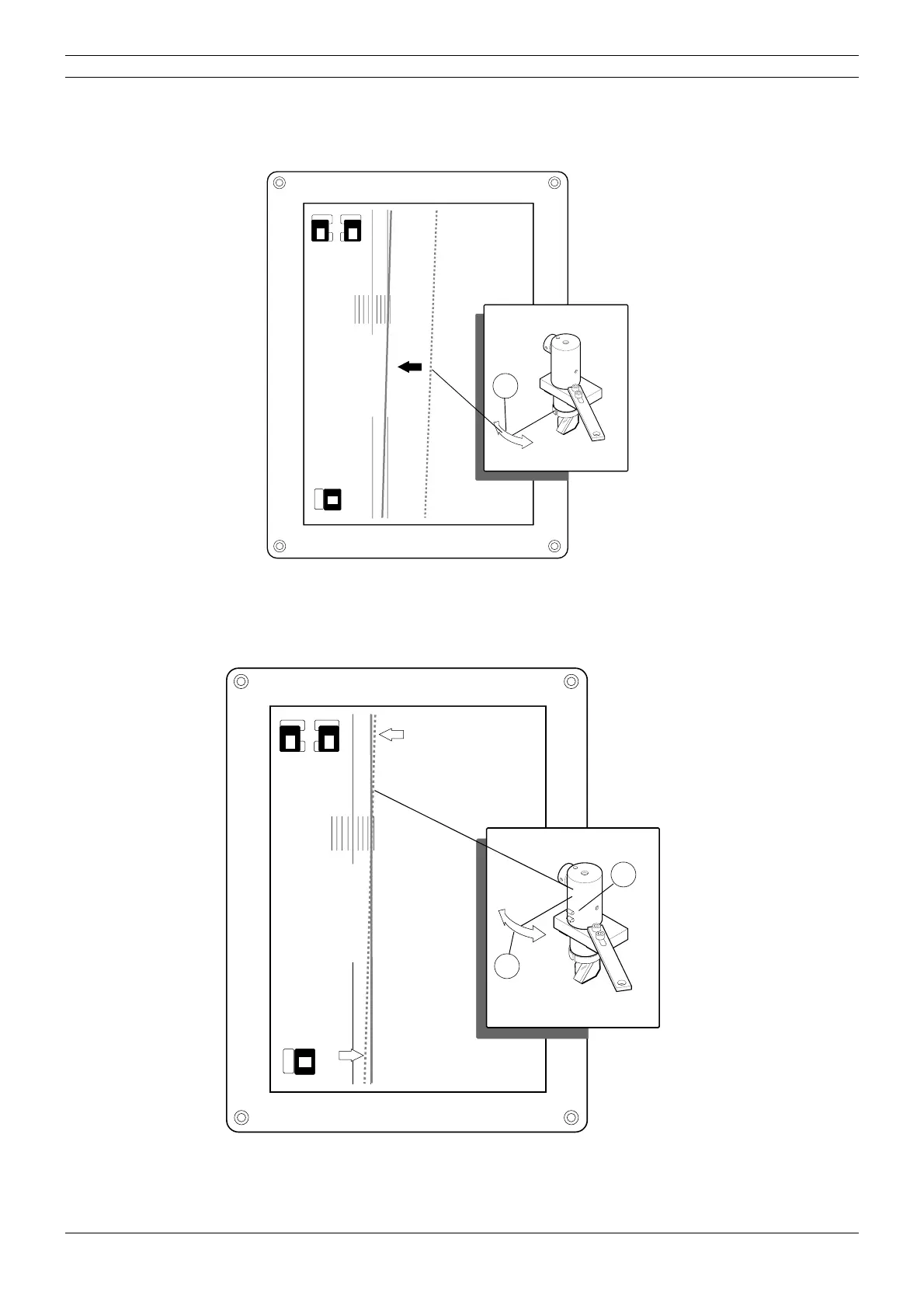

Turn the mirror bracket (Fig. 48, 1) until the light beam is in right position.
Figure 48
Turn the bulb housing (Fig. 49, 1) until the light beam is vertical. Fasten the screws of the bulb
fixing plate (Fig. 49, 2).
Figure 49
45
6
PLANMECA PM 2002 Proline CC Cephalostat 18x24
No.652232
Posiotioning light 0mm
1
45
6
PLANMECA PM 2002 Proline CC Cephalostat 18x24
No.652232
Posiotioning light 0mm
1
2
