Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-44 Planmeca Proline EC X-ray unit
CEPHALOSTAT ADJUSTMENT
Technical Manual

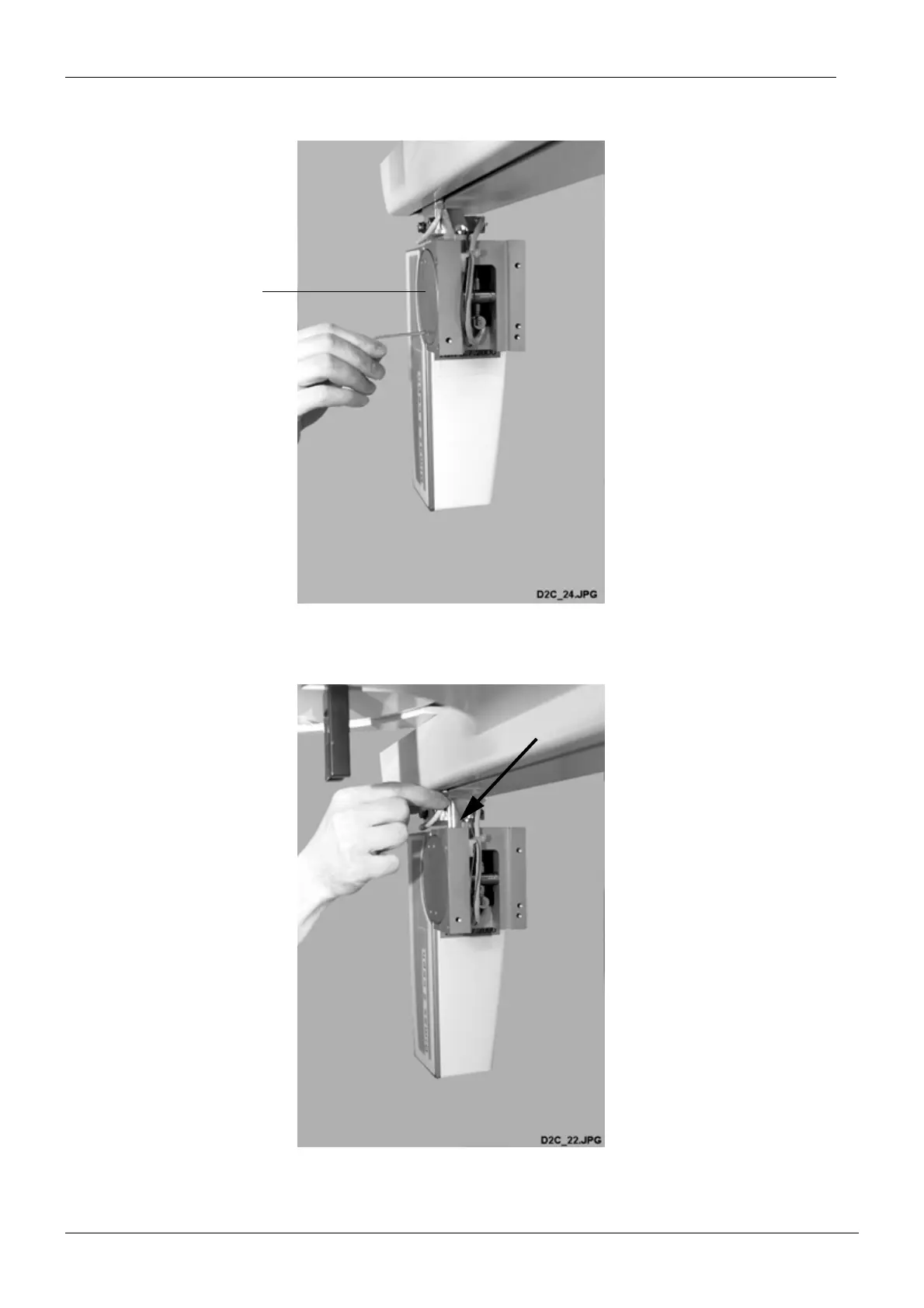

Loosen the four screws located on the lock disc.
Figure 79
Loosen the lock disc attachment screw with the 3mm allen key and remove the lock disc.
Figure 80
Lock disc
