CEPHALOSTAT ADJUSTMENT
Technical Manual
9 CEPHALOSTAT ADJUSTMENT
9.1 Removing the cassette holder cover
Loosen the two M4x8 BN 5950 bolts on the top of the cover with a 5.5 mm ring spanner.
Loosen the two M4x4 DIN 7985 screws on the bottom of the cover. Pull the cover away from
the cassette holder.

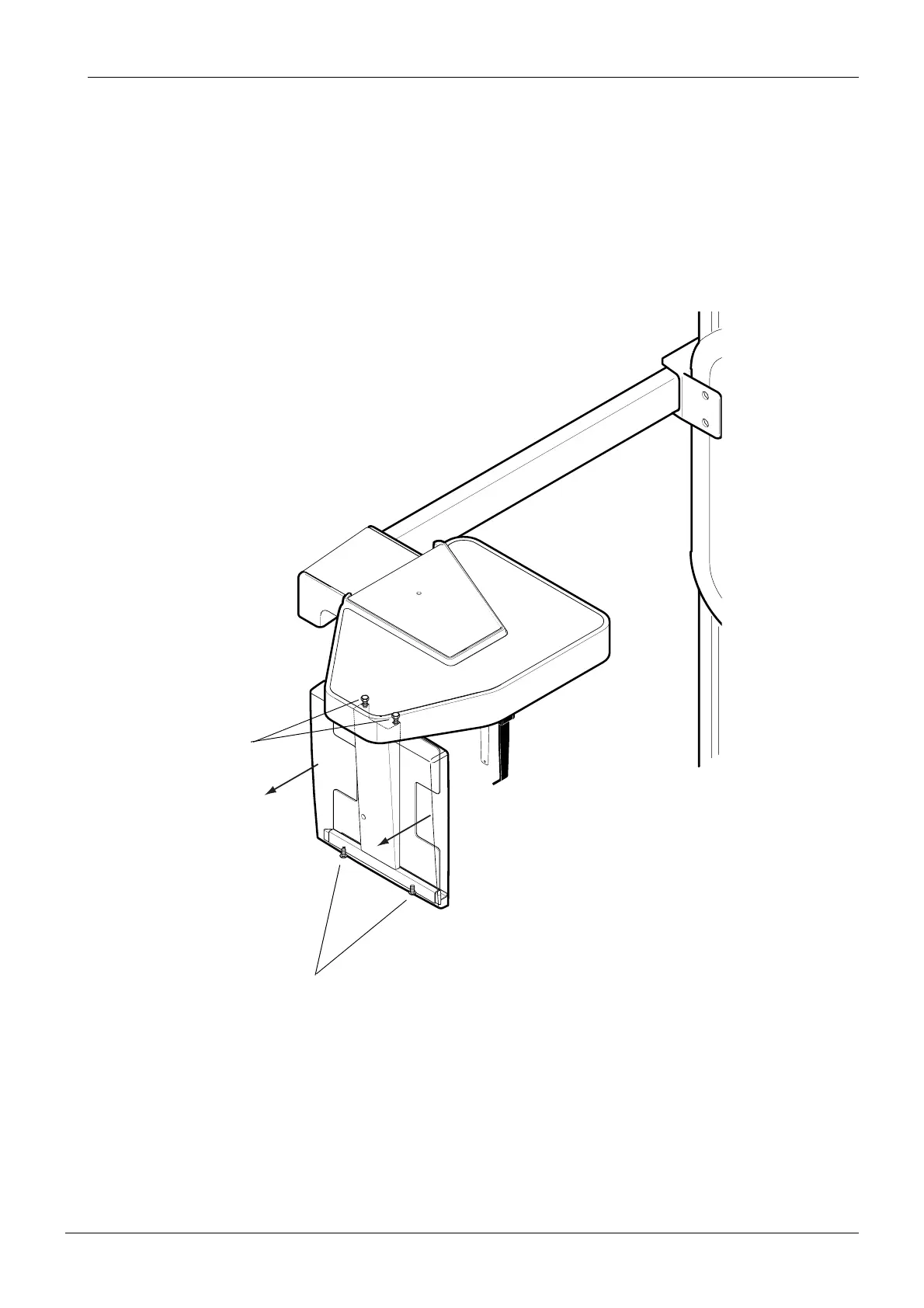

Figure 36
RemCephCover2.eps
M4x8 BN 5950
M4x4 DIN 7985
