Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-66 Planmeca Proline EC X-ray unit
IMAGE AREA SHIFTING
Technical Manual
8 IMAGE AREA SHIFTING
The image area has been too short for some larger patients. With these instructions the
image area can be shifted forwards to avoid cutting the patient’s nose in the image.
NOTE The Image area shifting is possible from software versions PK 5.12 and PG 5.12.
Upgrade the software, if needed.
8.1 Adjusting the position of the frame cover fastening flat
spring

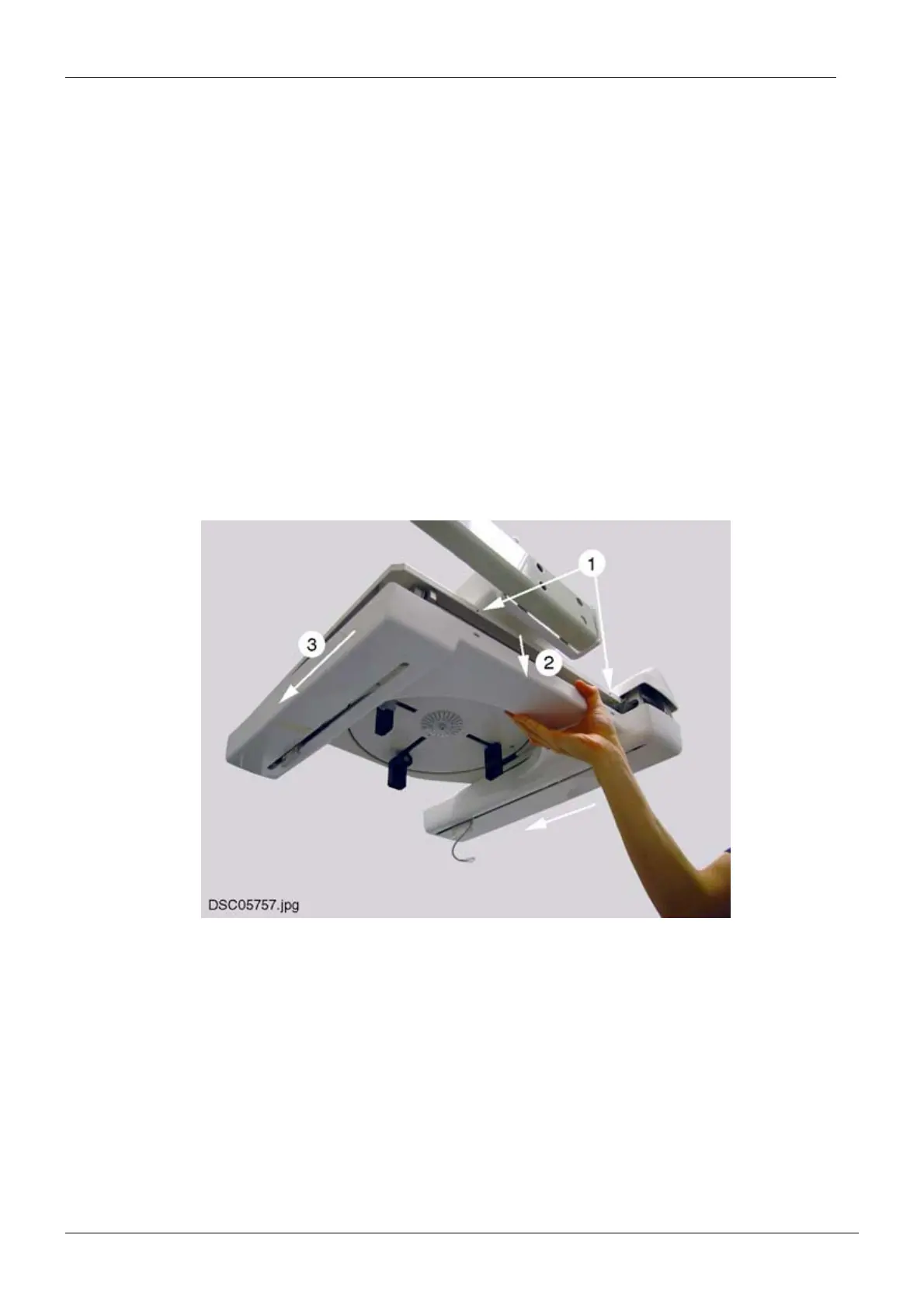

Remove the frame cover as follows. Unscrew the two attachment screws using the 2.5mm
Allen key. Remove the attachment screws and the washers (figure below, 1). Pull the frame
cover carefully downwards as shown on the figure below (2). Slide the frame cover away from
the cephalostat head support (3).
Figure 119
