Chapter D - ADJUSTMENT & CALIBRATION
D-24 Planmeca Proline EC X-ray unit
FOCAL TROUGH POSITIONING LIGHT
Technical Manual
5.2 Positioning light adjustment

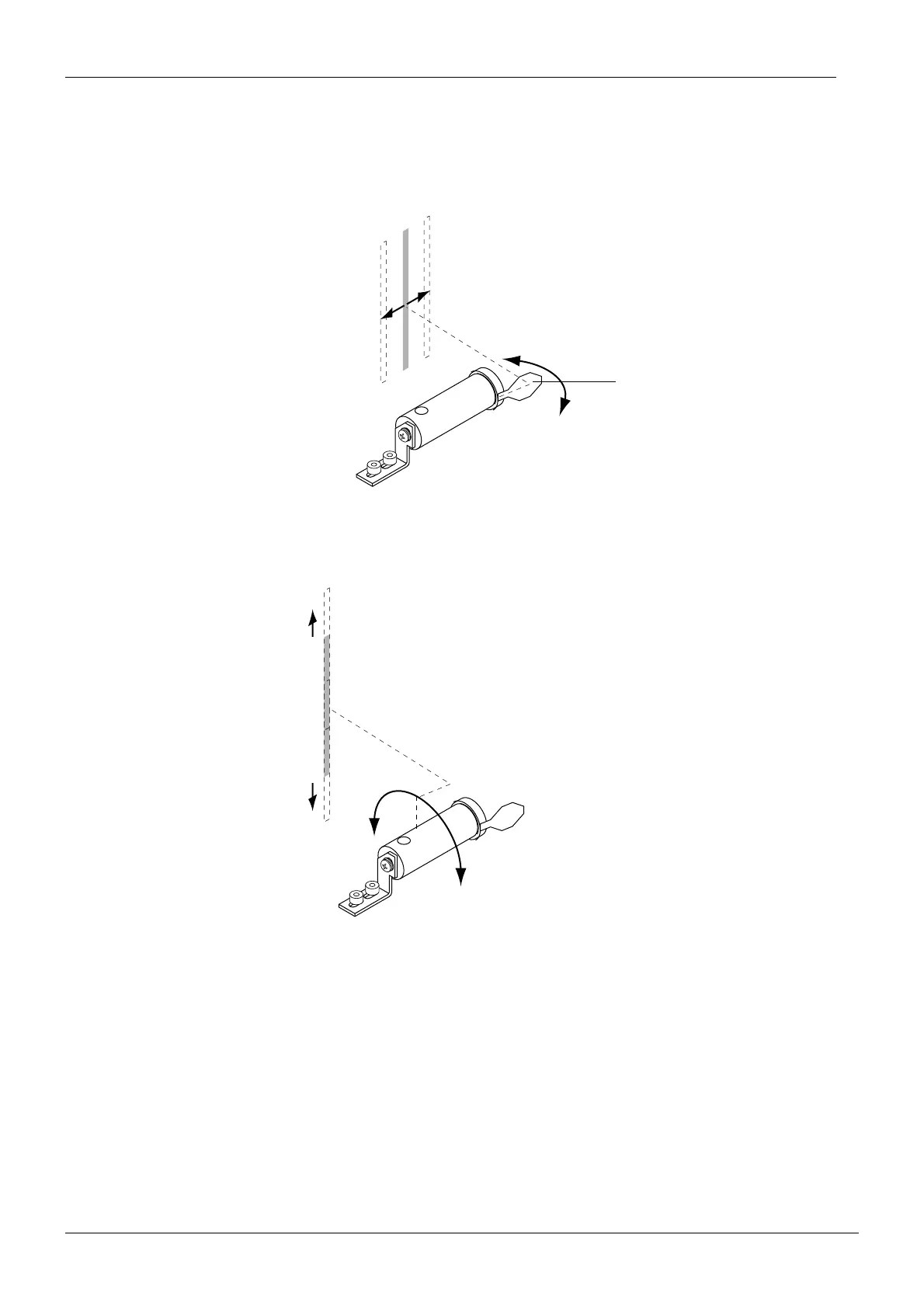

Bending the mirror bracket backwards or forwards will position the light beam.
Figure 31
Rotating the mirror bracket will adjust the light beam in vertical direction.
Figure 32
Adj.beam rightleft.eps
Mirror bracket
Adj.beam updown.eps
