Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-63
CEPHALOSTAT ADJUSTMENT
Technical Manual
The beam image should appear within the borders of the rectangle marked on the beam
alignment tool. If it does not adjust the second primary slot position. Refer to section
“Second
primary slot adjustment” on page E-64.

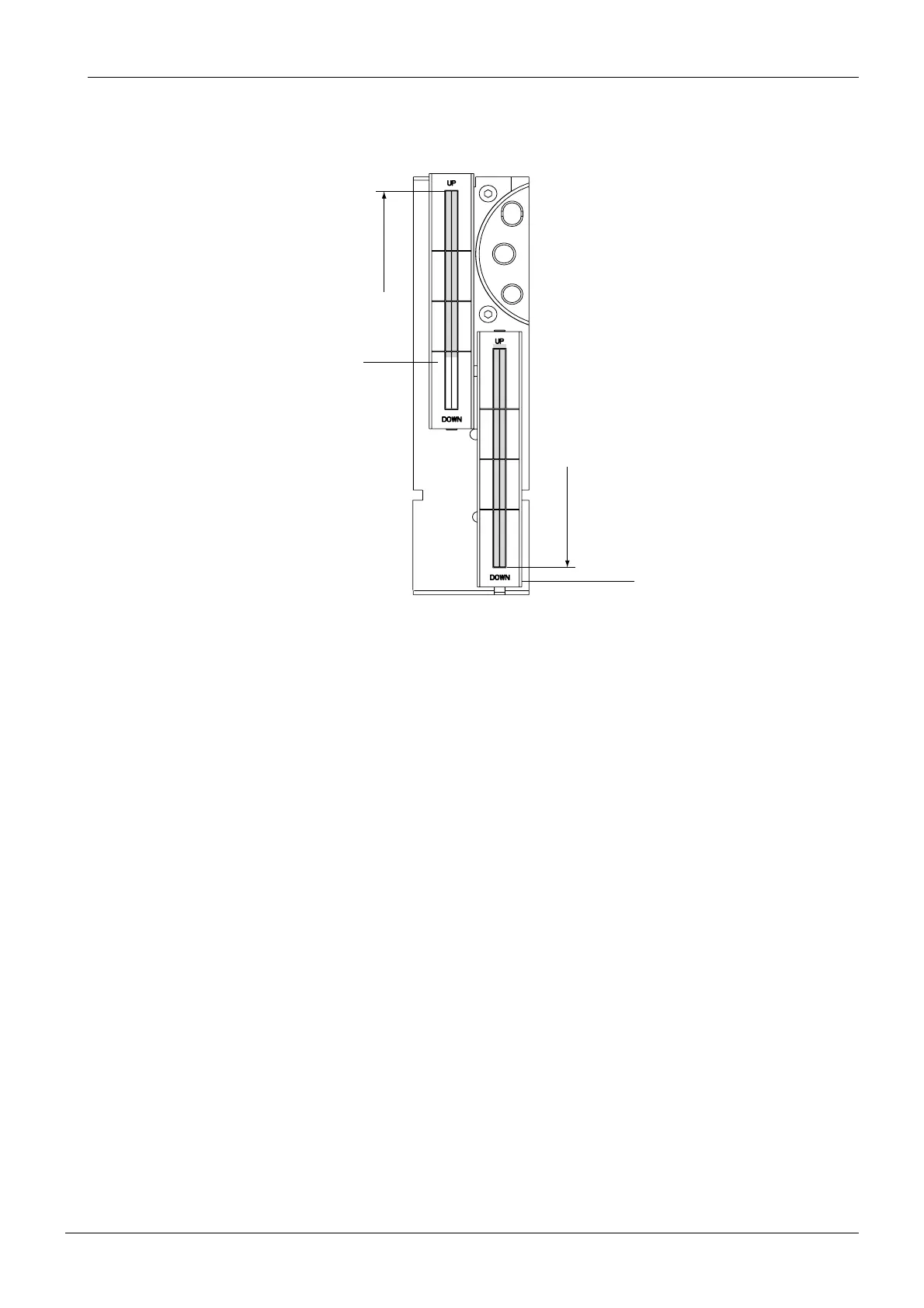

Figure 114
Move the beam alignment tool to the upper position on the sensor alignment tool as shown on
the figure above.
Stand behind the tubehead and protect yourself from radiation. Press and hold down the
exposure button. The image of the radiation beam will appear on the alignment tool.
The beam image should appear within the borders of the rectangle marked on the beam
alignment tool as shown on the figure above. If it does not adjust the second primary slot posi
-
tion. Refer to section “Second primary slot adjustment” on page E-64.
NOTE After checking and adjusting the second primary slot position the cephalostat sensor
head must be calibrated according to the instructions given in section
“Calibrating the
cephalostat sensor head” on page E-52.
D2filt_D.eps
Beam alignment
Beam alignment
tool in upper
position
tool in lower
position
