Chapter A - GENERAL & TECHNICAL DATA
A-10 Planmeca Proline EC X-ray unit
USER’S STATEMENT FOR PLANMECA PROLINE EC PANO-
Technical Manual

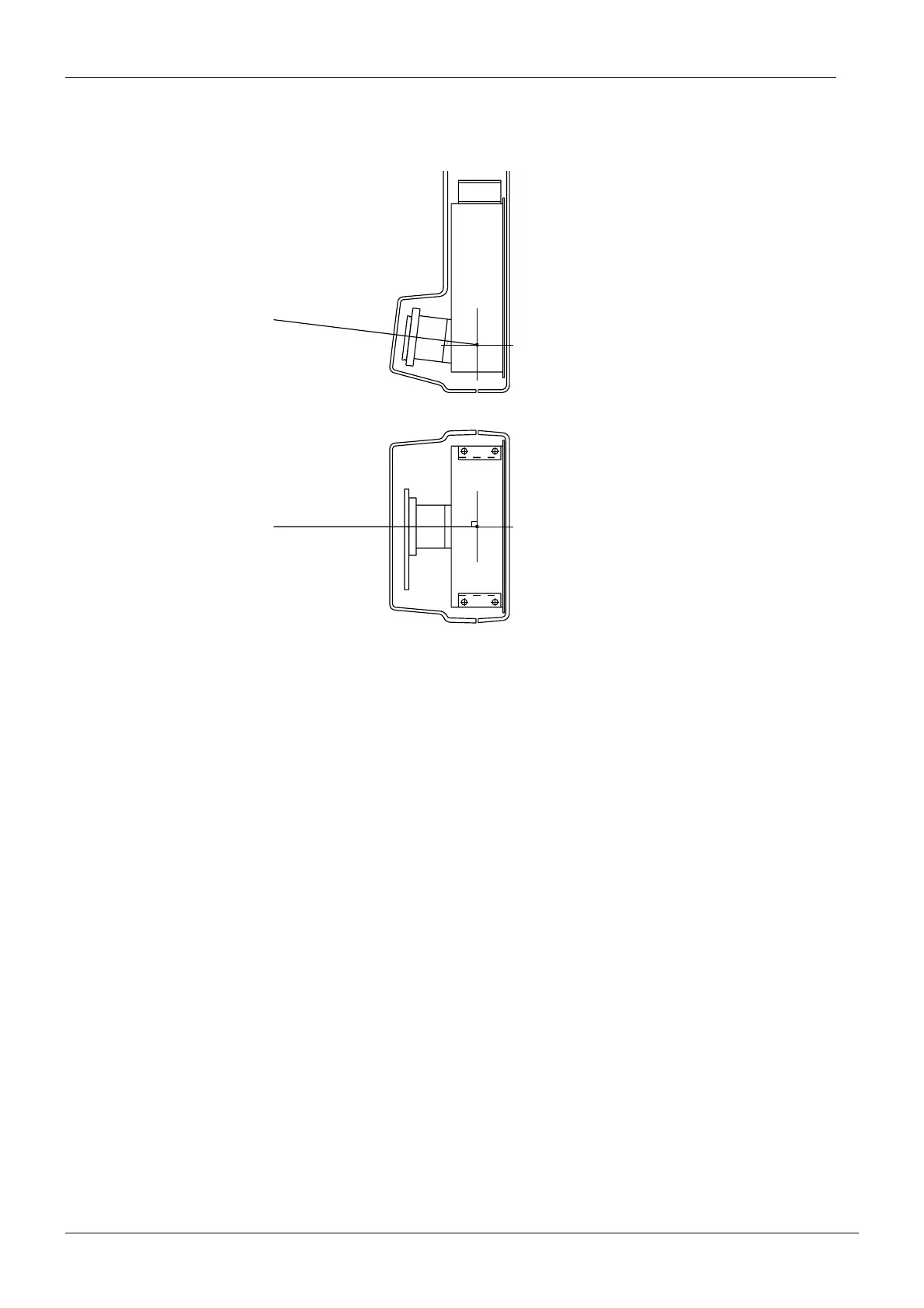

Reference axis to which the target angle and the focal spot
characteristics of the tube head assembly refer
Target angle with respect to the reference axis
5°
Dimensions of the tube head assembly
(WxHxD) 245 mm x 275 mm x 135 mm
Weight of the tube head assembly
10.4 kg without collimator assembly
11.3 kg with collimator assembly
Values of loading factors concerning leakage radiation
80 kV, 12 mA
Tolerances of the focal spot on the reference axis
X= ±0.5 mm (sideways)
Y= ±0.5 mm (in depth)
Z= ±0.5 mm (in height)
7°
90°
