Chapter D - ADJUSTMENT & CALIBRATION
Planmeca Proline EC X-ray unit D-7
PANORAMIC X-RAY BEAM ADJUSTMENT
Technical Manual
Radiation beam not vertical
If the beam is not vertical loosen the four screws that hold the slot frame in position and rotate
the frame until the beam is correctly positioned. Tighten the screws and recheck the beam.
Repeat the above procedure until the beam is correctly positioned.

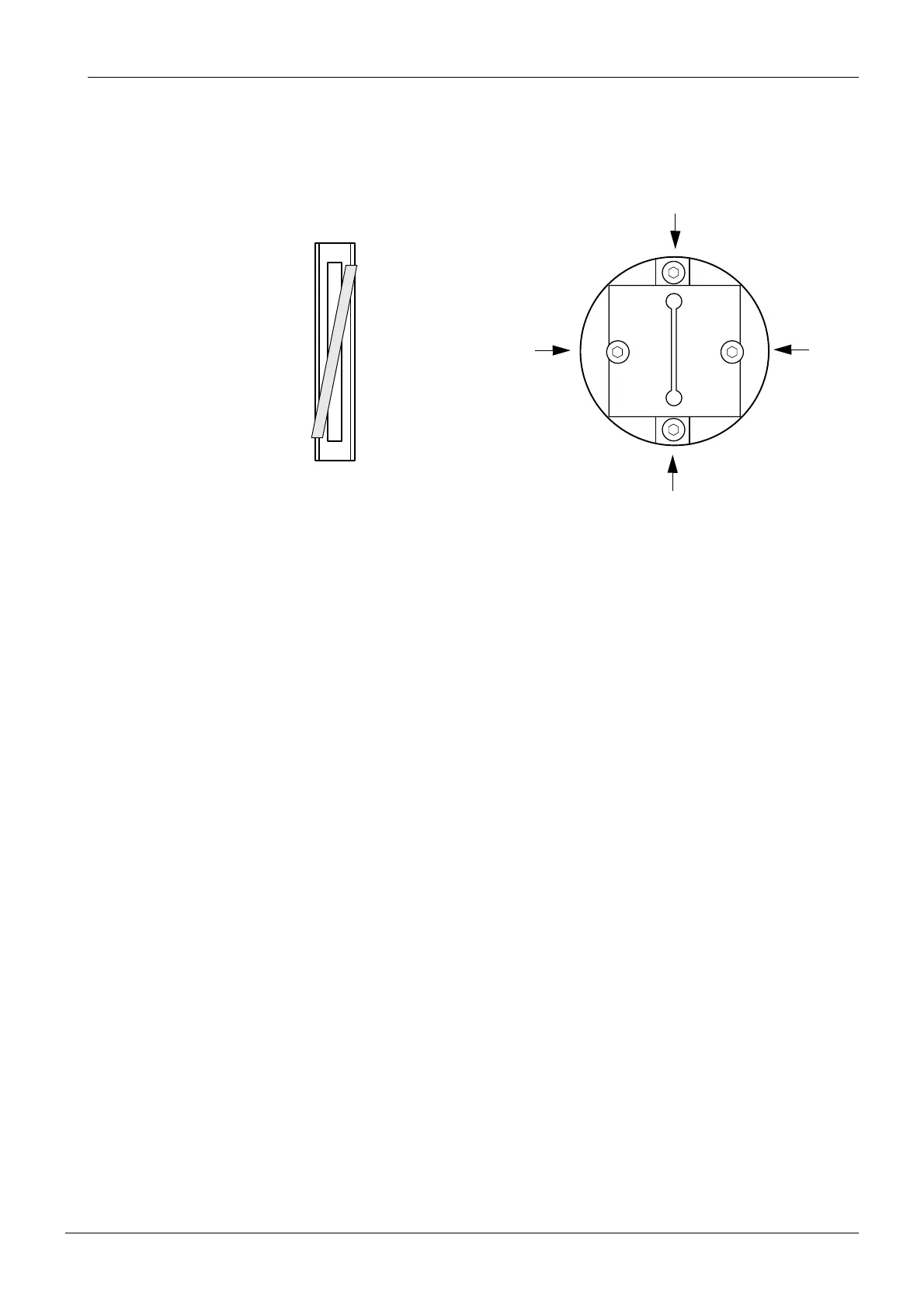

Figure 6
Beam not vertical
Securing screws
