Chapter D - ADJUSTMENT & CALIBRATION
Planmeca Proline EC X-ray unit D-15
PATIENT POSITIONING MECHANISM
Technical Manual

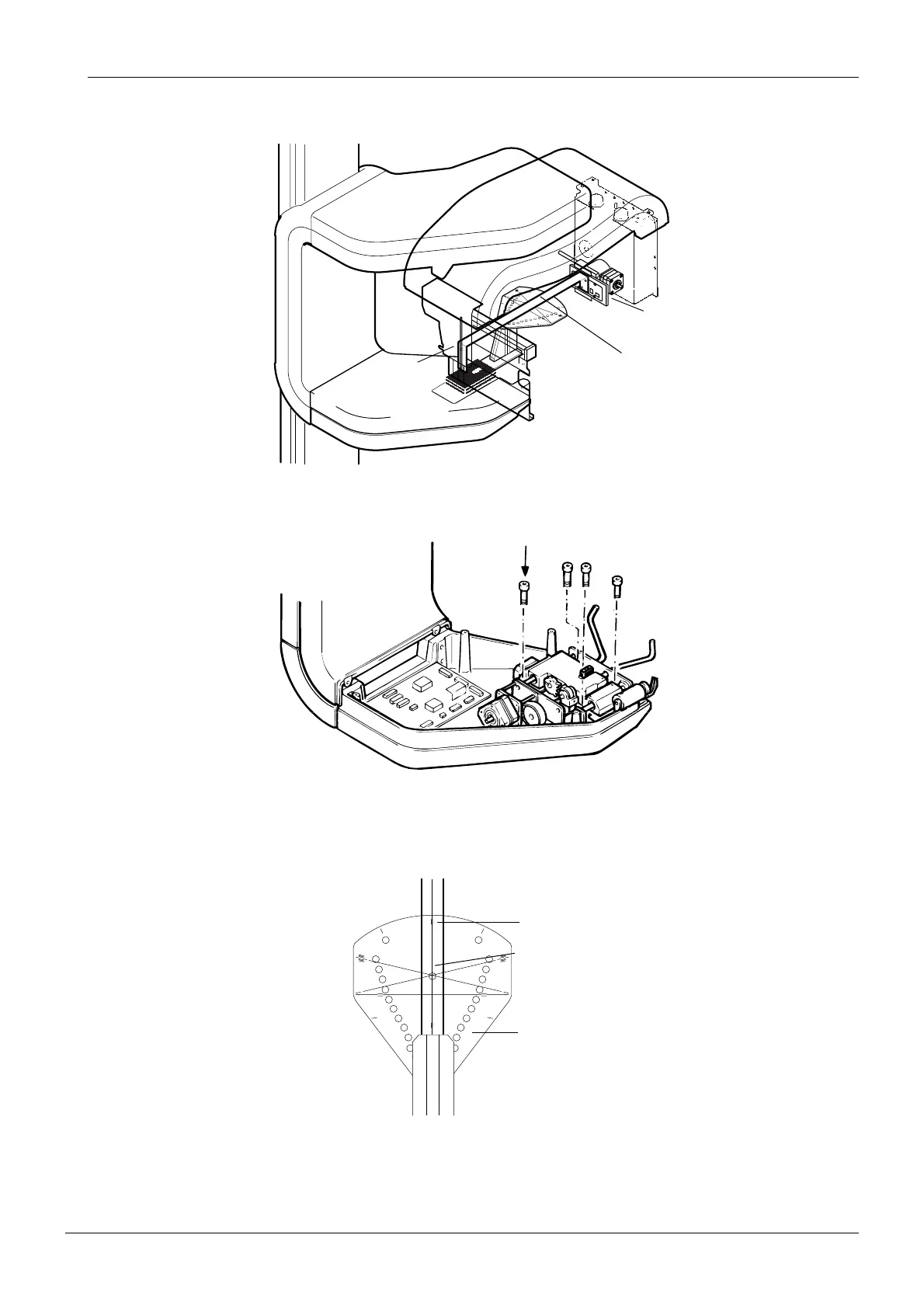

Leave the ball phantom tool in position and place one end of the alignment ruler in the primary
slot and the other end in the secondary slot.
Figure 20
Loosen the four screws that hold the patient position mechanism in place and adjust its posi-
tion to the left or right until the mechanism is centered.
Figure 21
Make sure that the y-line on the ball phantom is parallel to the line on the underside of the
alignment ruler. Note that the line on the ball phantom and the line on the alignment rule do
not have to coincide, but they must be parallel.
Figure 22
Tighten the screws, and remove the alignment pin.
Take another ball phantom picture to check the alignment again. Readjust if necessary.
START
END
PLANMECA No.50971
X-LINE
Y-LINE
Primary slot
Alignment ruler
Secondary slot
Tubehead
Screws
START
END
PLANMECA No.50971
X-LINE
Y-LINE
Y-lineca.EPS
Alignment ruler
Lines must not coincide
but they must be parallel
Ball phantom
