Trimmer
Installation
TRIMMER INSTALLATION
[A]

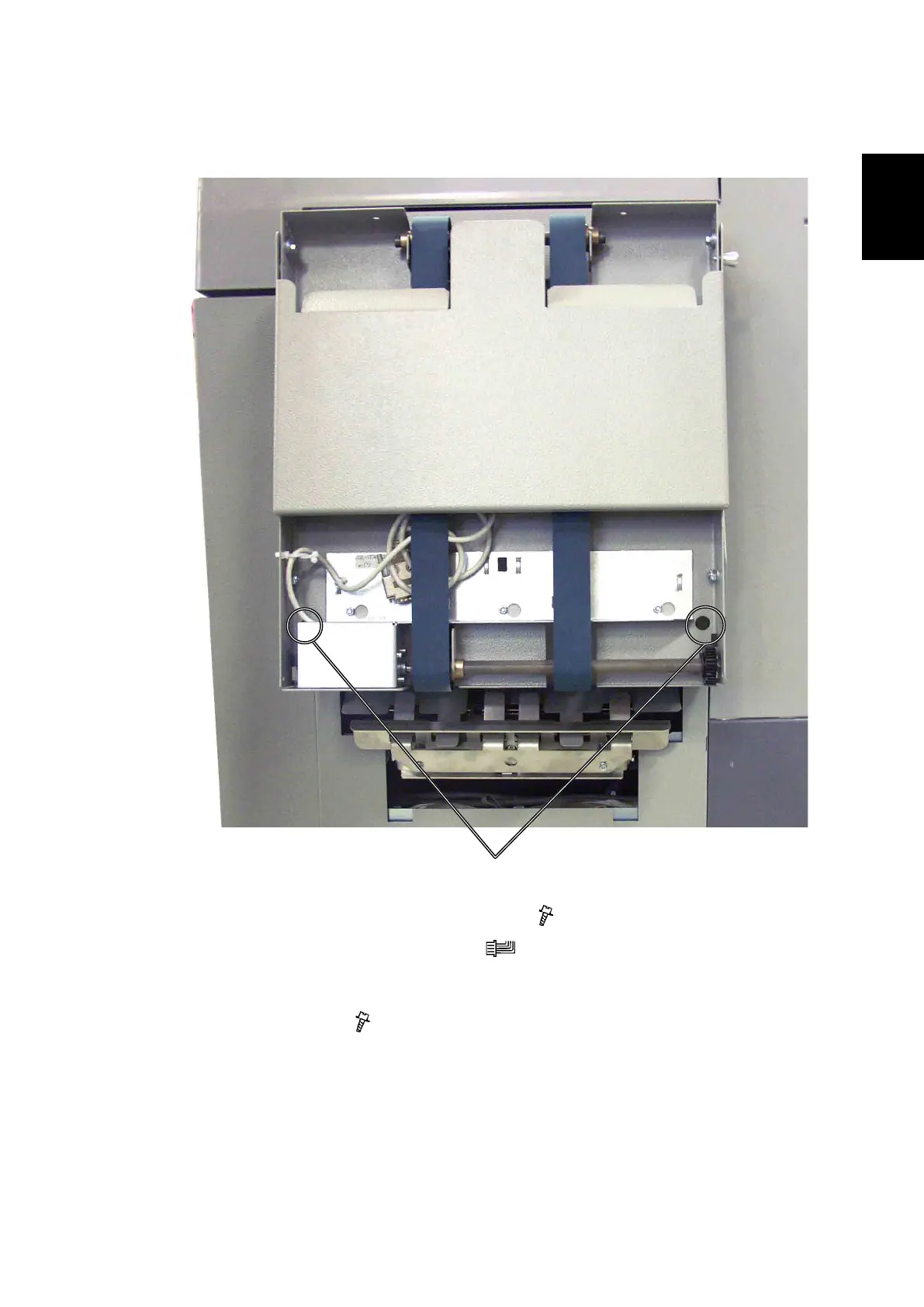

Remove the belt stacker
1. Loosen screws [A] on the Booklet Maker ( x 2 ).
2. Disconnect the Belt stacker cable ( x 1).
3. Remove belt stacker from the Booklet maker.
4. Secure screws [A] ( x 2 ).
Booklet Maker
