Plockmatic BLM 35 - Cables, Plugs, and Jumpers

105
8

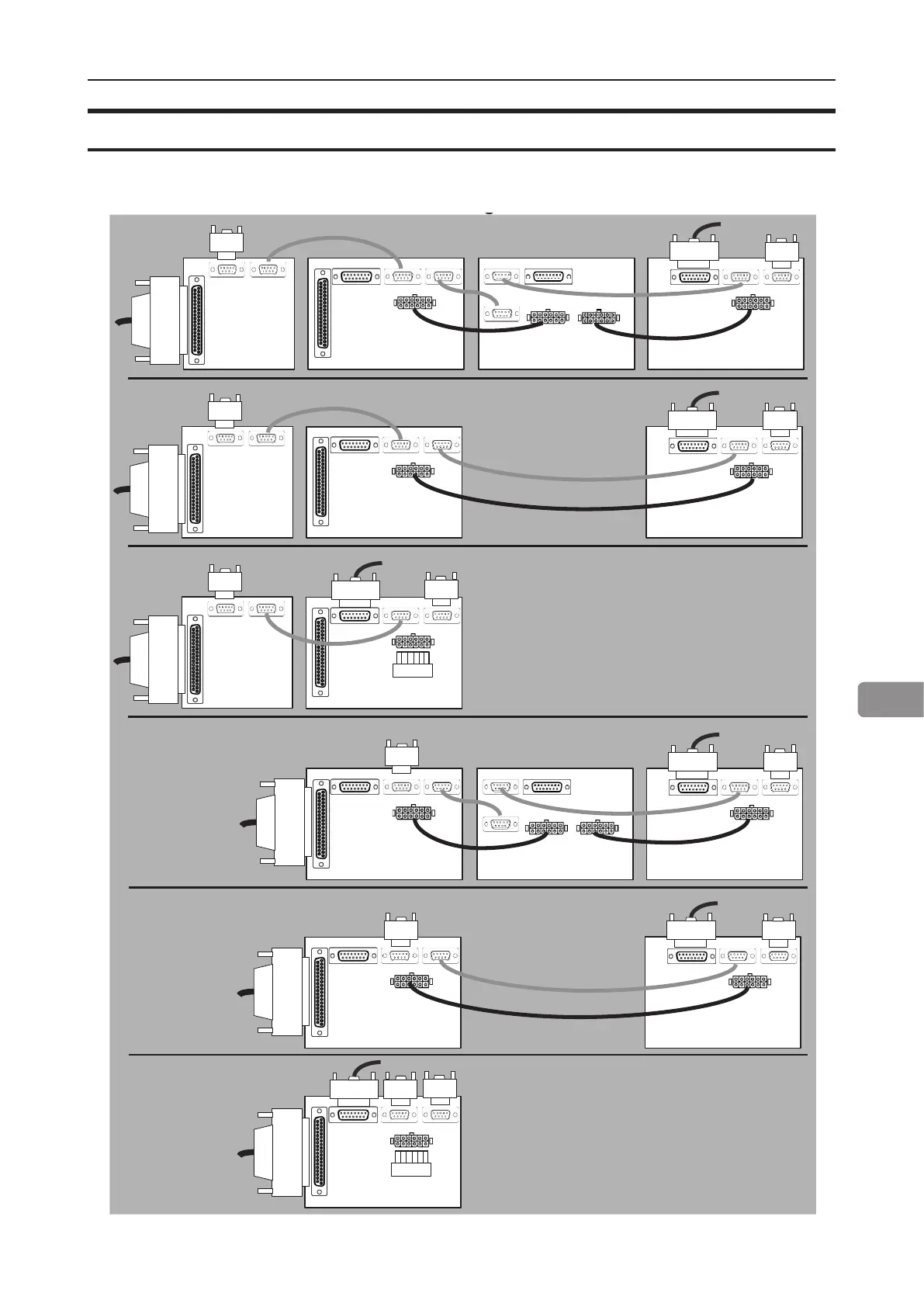

Schematical description of how to connect communication cables, termination plugs and interlock
jumpers on all possible system congurations.
Cables, plugs and jumpers
