Plockmatic BLM 35 - Access to Machine

81
7
2700-2910 mm
106.7-114.6”
420-630 mm
17-26”
360 mm
14”
360 mm
14”
850 mm
33.5”
400 mm
16”
710 mm
28”
530 mm 21”
860 mm 33.8”
750 mm 29.5” 700 mm 27.5” 660 mm 26”
1835 mm 72.2”
550 mm 22”
90 mm 3.5”
105 mm 4”

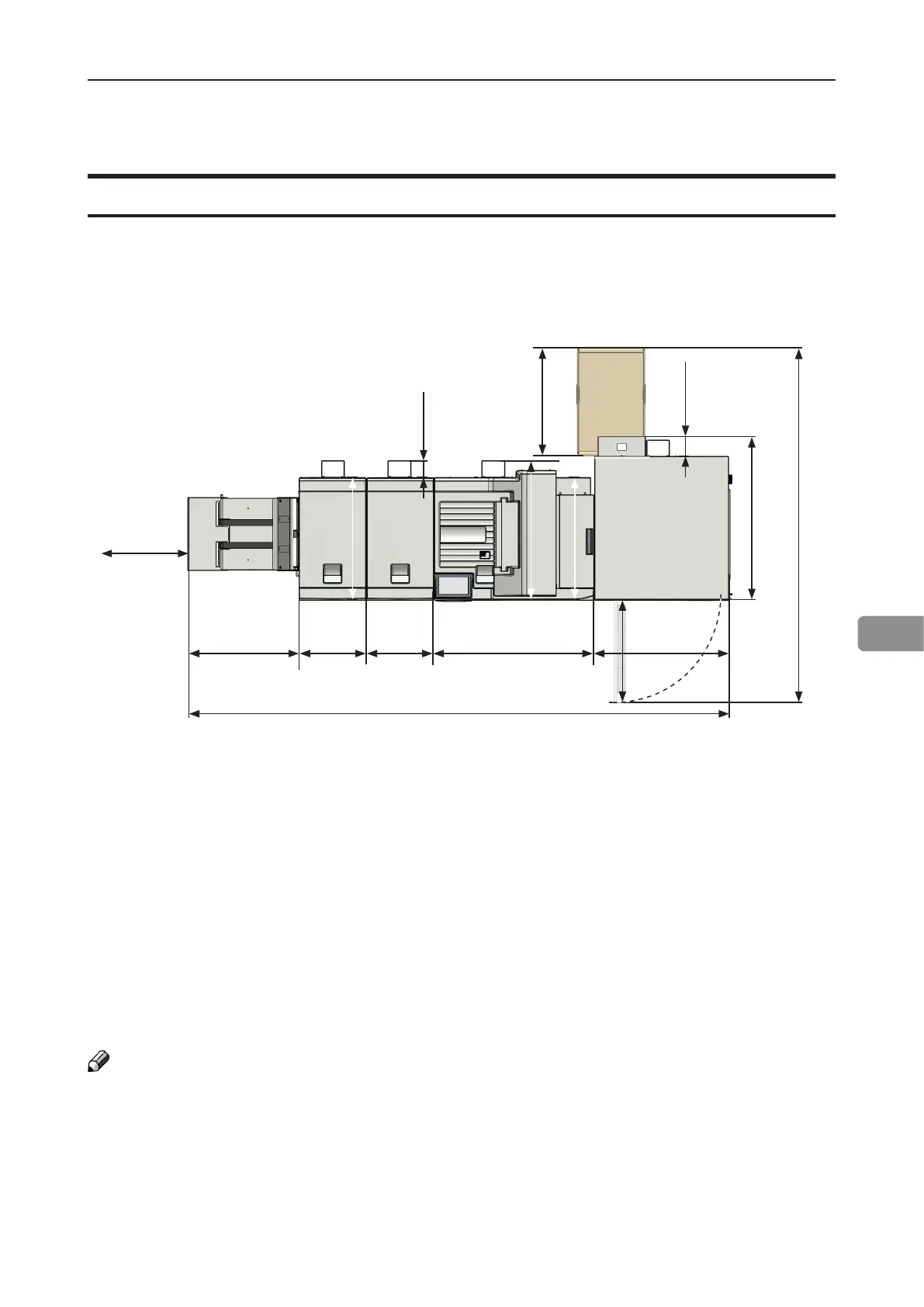

Access to machine
Place the machine near the power source, providing clearance as shown.
Ensure that the minimum required oor space is available for the system that you are
about to install (Figure 1).
The optional high capacity Belt Stacker BST4000-1 can be placed either in-line or angled
to the Booklet Making system. The BST4000-1 measures 1730x440 mm / 68x17”.
Approximate oor space requirements / conguration;
• BLM 35/50 + Stacker ~1480 mm / 58.2”.
• BLM 35/50 +FTR50 + Stacker ~ 1840 mm / 72.4”.
• BLM 35/50 + BF50 + FTR50 + Stacker ~ 2200 mm / 86.6”.
• RCT + BLM 35/50 + BF50 + FTR50 + Stacker = 2910 mm / 114.6”.
• RCT + BLM 35/50 + BF50 + FTR50 + BST4000-1 Stacker (straight) = 4430 mm / 174.4”.
• RCT + BLM 35/50 + BF50 + FTR50 + BST4000-1 Stacker (angled) = 3140 mm / 123.6”.
NOTE:
BLM 35/50 Upgrade kit and Cover Feeder Module does not impact oor space
requirements.
