Plockmatic BLM 35 - Clearing Misfeed in Folder Area

66
5
[A]
2
3
[B]
1

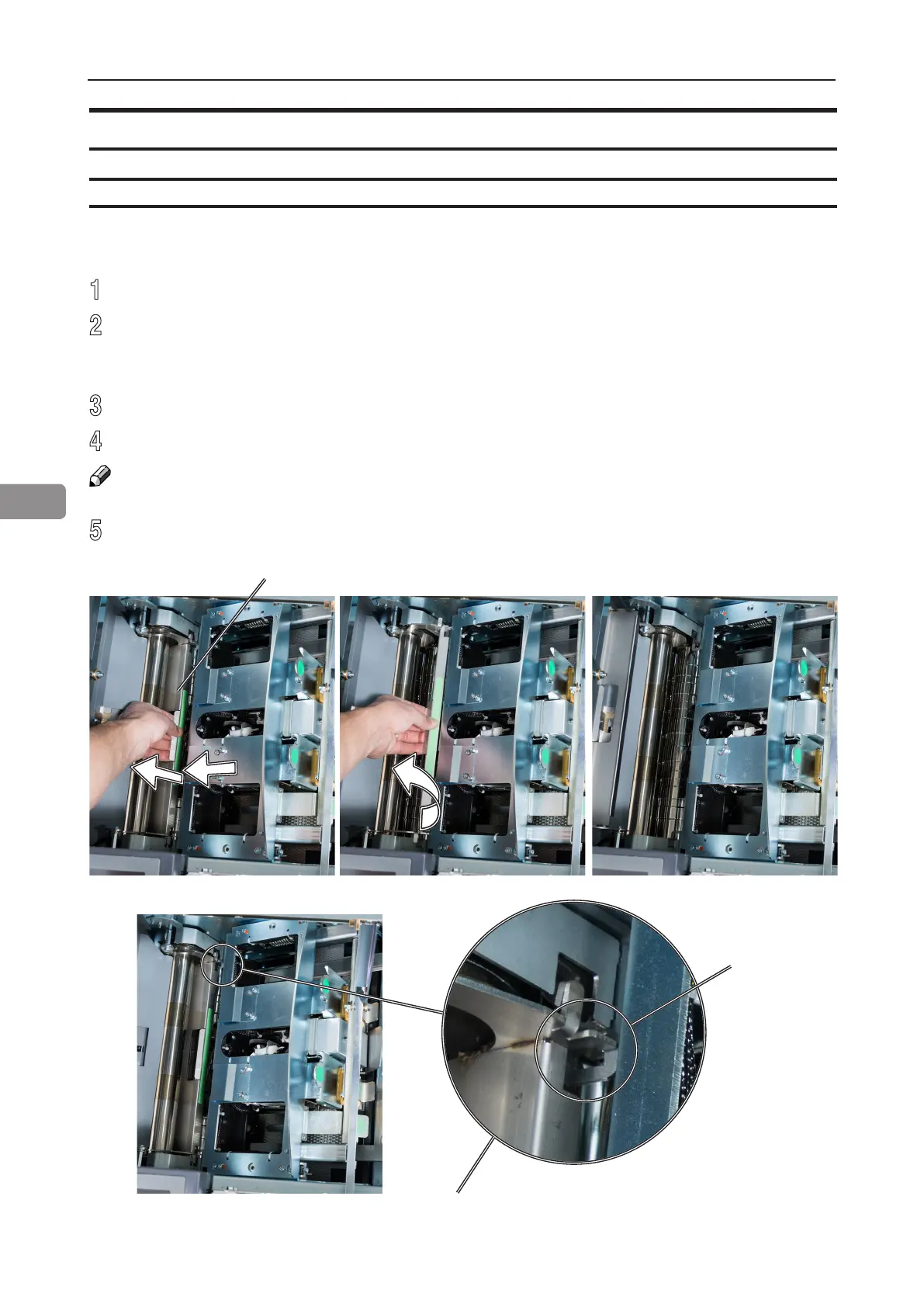

1 Open the top cover.
2 Open the fold roller paper guide [A] by pushing (arrow 1), lifting (arrow 2) and pivoting
(arrow 3) to access any misfed or jammed sheets/booklets between the lower and
upper pair of fold rollers.
3 Remove sheets/booklets in folder area between fold rollers.
4 In reversed manner, place the fold roller paper guide back in operating position.
NOTE:
Make sure the fold roller paper guide is locked in operating position [B] at both sides.
5 Close top cover.
Clearing misfeed(s), continued
Clearing misfeed in folder area
Fold roller
paper guide
locks here
