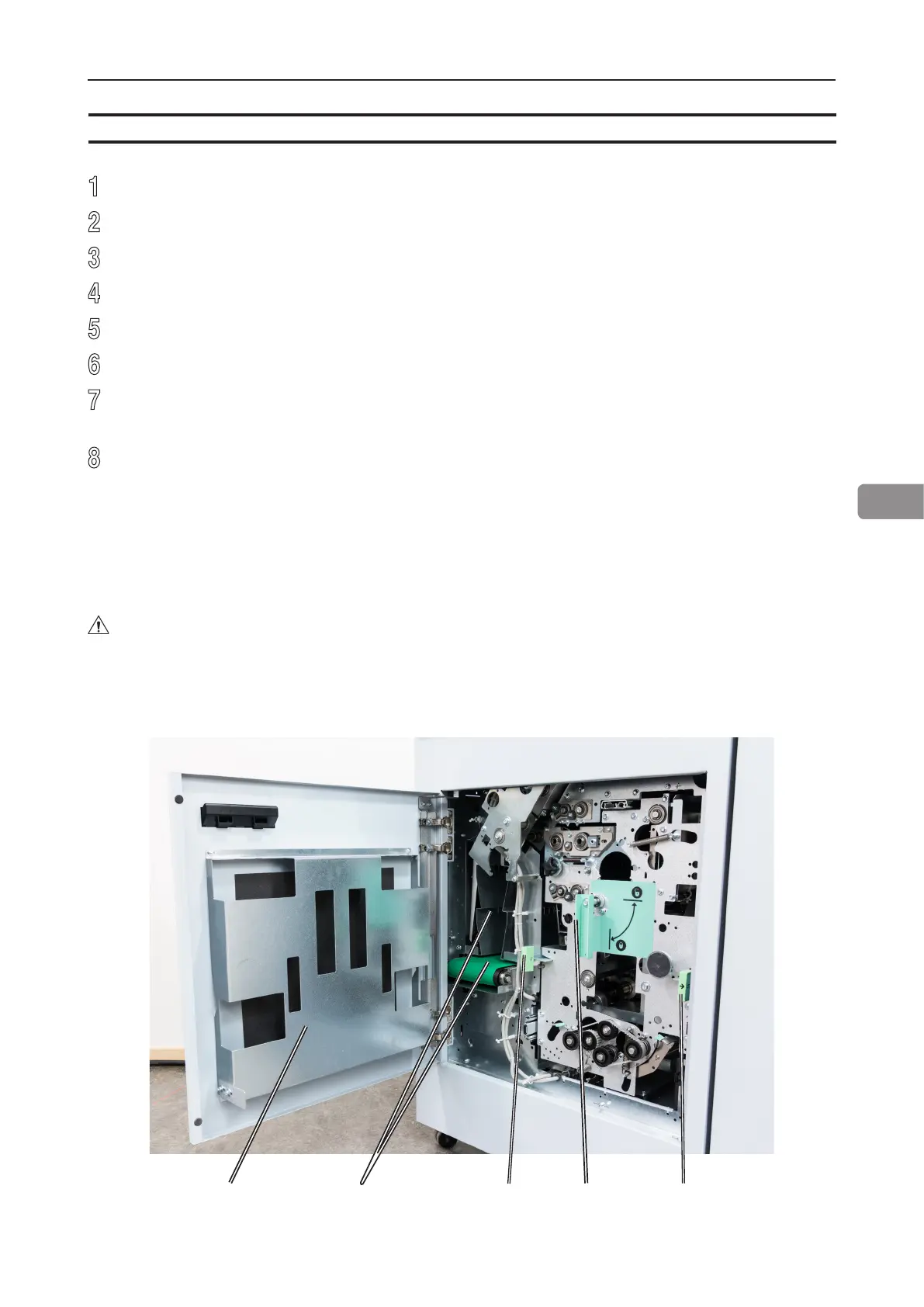

Registration and creaser area
1 Open the slide door [A].
2 Unlatch and pull out the slide [B].
3 Open bafes “B” and “C” if needed.
4 Remove any misfeed(s).
5 Close bafes “B” and “C”.
6 Push in and latch the slide.
7 Always remove any residual waste from waste channel and waste [C] belt before
closing the slide door.
8 Close the slide door.
Clearing jams in the waste transport
The waste transport is easily accessible through the slide door. Shreds jammed in or wrapped
around the knife assembly are also accessible through the slide door.
CAUTION
Under no circumstances should jams around the trimmer blades be cleared using metallic
tools. The edges are very fragile and easily damaged.
