BF9500 车载台使用说明书

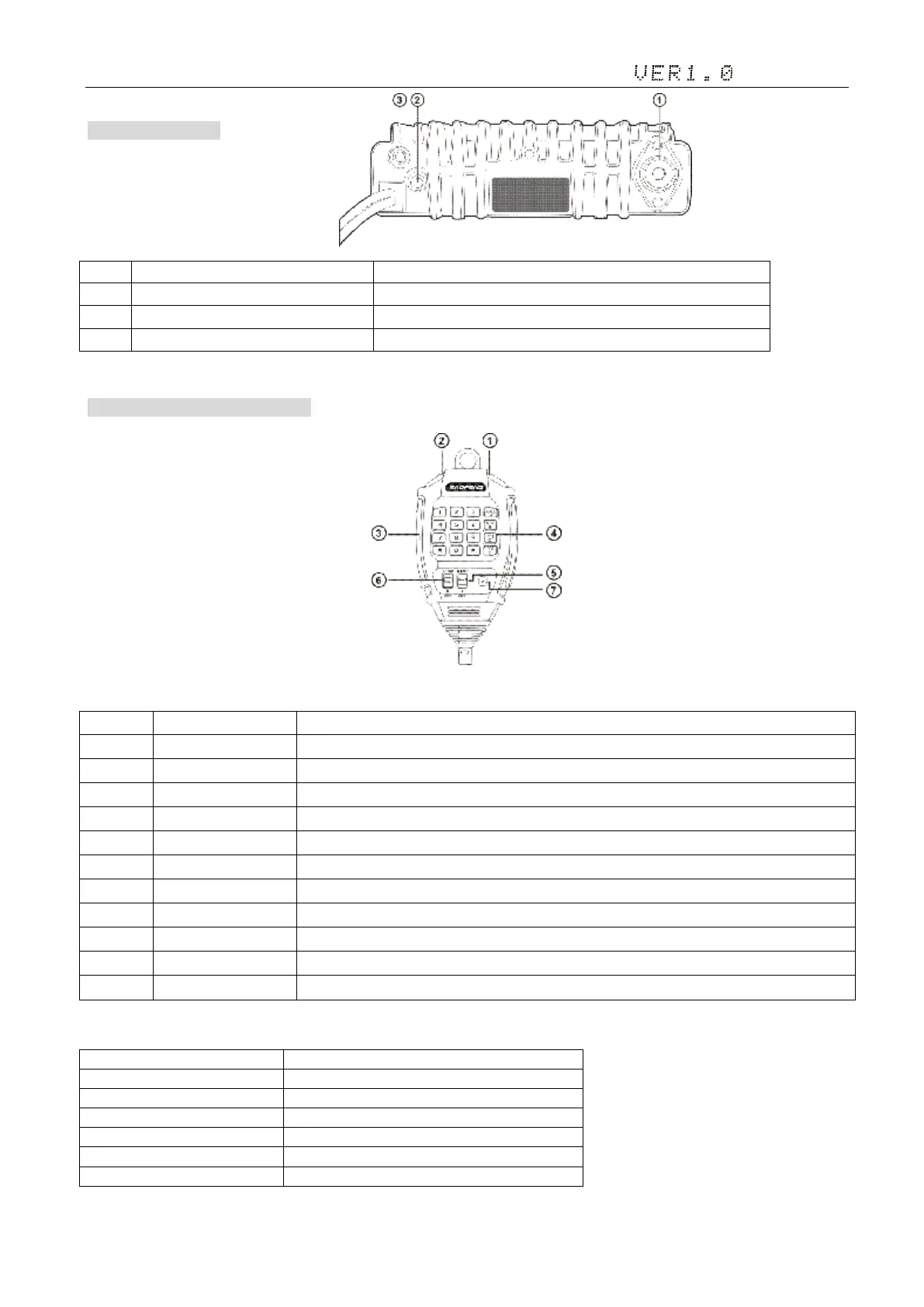

3. Rear Panel 后面板
No.
Port
FUNCTION
1
Antenna Connector
Connection for 50Ωcoaxial cable and antenna.
2
Ext.Speaker Terminal
Terminal for optional external speaker SP01
3
Adjustable measuring port
Production of set parameters when special port
4. DTMF Microphone DTMF 手咪
1) Basic Functions
No.
Key
FUNCTION
1
UP
Increase frequency ,channel number or setting value
2
DOWN
Decrease frequency, channel number or setting value
3
PTT
Press the PTT (Push-TO-Talk) key to transmit
4
PF1/A
Custom key 1.( Default: CALL）.Press the [PTT]then press the [PF1/A] transmit A.
5
PF2/B
Custom key 2. (Default:V/M). Press the【PTT] then press the [PF2/B] transmit B.
6
PF3/ C
Custom key 3. (Default:FM_RADIO). Press the [PTT] then press the [PF3/ C] transmit C.
7
PF4/ D
Custom key 4.( Default:BATTERY)。Press the [PTT] then press the [PF4/ D] transmit D.
8
Number Key
Input VFO frequency or DTMF dial out etc..
9
LOCK Switch
Locks out the UP/Down/Numerical keys and Function keys
10
D T M F O N /OFF
Switches between DTMF dialing or function operating
11
MIC
Speak here during transmission
2) 【PF1～PF4】Function List：
REV
Reverse Frequency
CALL
Optional signaling call
MONI
Monitor
MHZ
In Frequency mode, Adjust the high MHZ
SHIFT
Offset Direction
V/M
Frequency/Channel
CT/DT
OFF/CTCSS Code/CTCSS CODEC/DCS CODEC
