POFUNG BF9500 - DTMF Microphone Connection; PC Connection for Programming; Getting Acquainted with the Radio; Front Panel Overview and Controls

BF9500 车载台使用说明书
The speaker can not connect with the ground, otherwise the speaker will be fault.

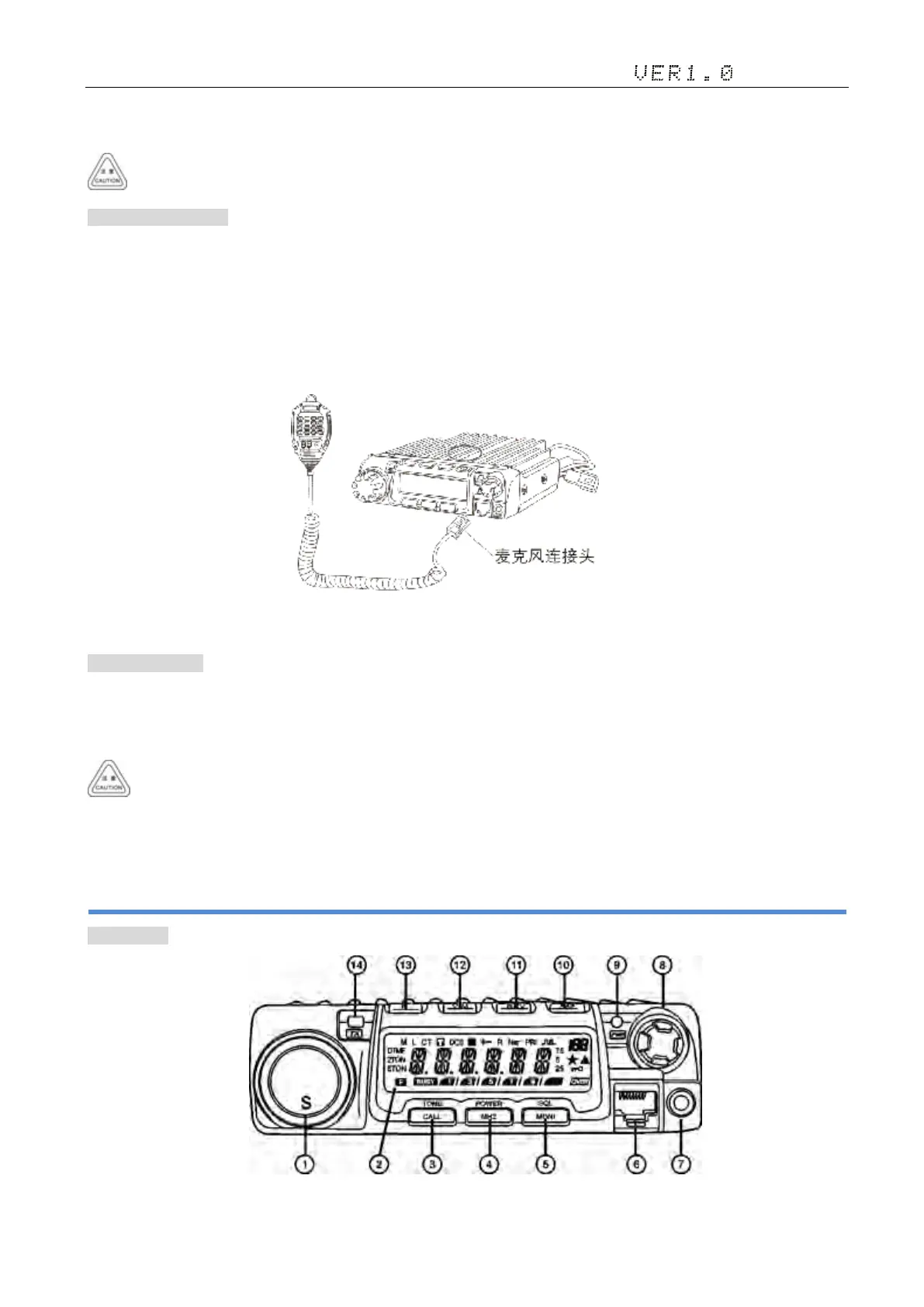

2. DTMF Microphone
For voice communications, connect a microphone equipped with an 8-pin modular plug into the modular socket on the front
of the main unit. Press firmly on the plug until the locking tab clicks. Attach the supplied microphone hanger in an appropriate
location using the screws included in the screw set.
麦克风连接头：Microphone connector
3. PC Connecting
To utilize the Programming software(BF-9500) , you must first connect the transceiver to your PC then using an optional
programming cable PC (via USB socket).
Programming software acquisition can contact your dealer or visit the official website :www.baofengradio.com. Ask your
dealer about purchasing a Programming Cable USB-PC-95.
■ Getting Acquainted
1. Front panel
