Point Grey Flea3 GigE Technical Reference 7 Image Acquisition
7.1.4 Skip Frames Trigger (Mode 3)
Trigger Mode 3 allows the user to put the camera into a mode where the camera only transmits one out of N specified
images. This is an internal trigger mode that requires no external interaction. Where N is the parameter set in the
Trigger Mode, the camera will issue a trigger internally at a cycle time that is N times greater than the current frame
rate. As with Trigger Mode 0, the Shutter value describes integration time.

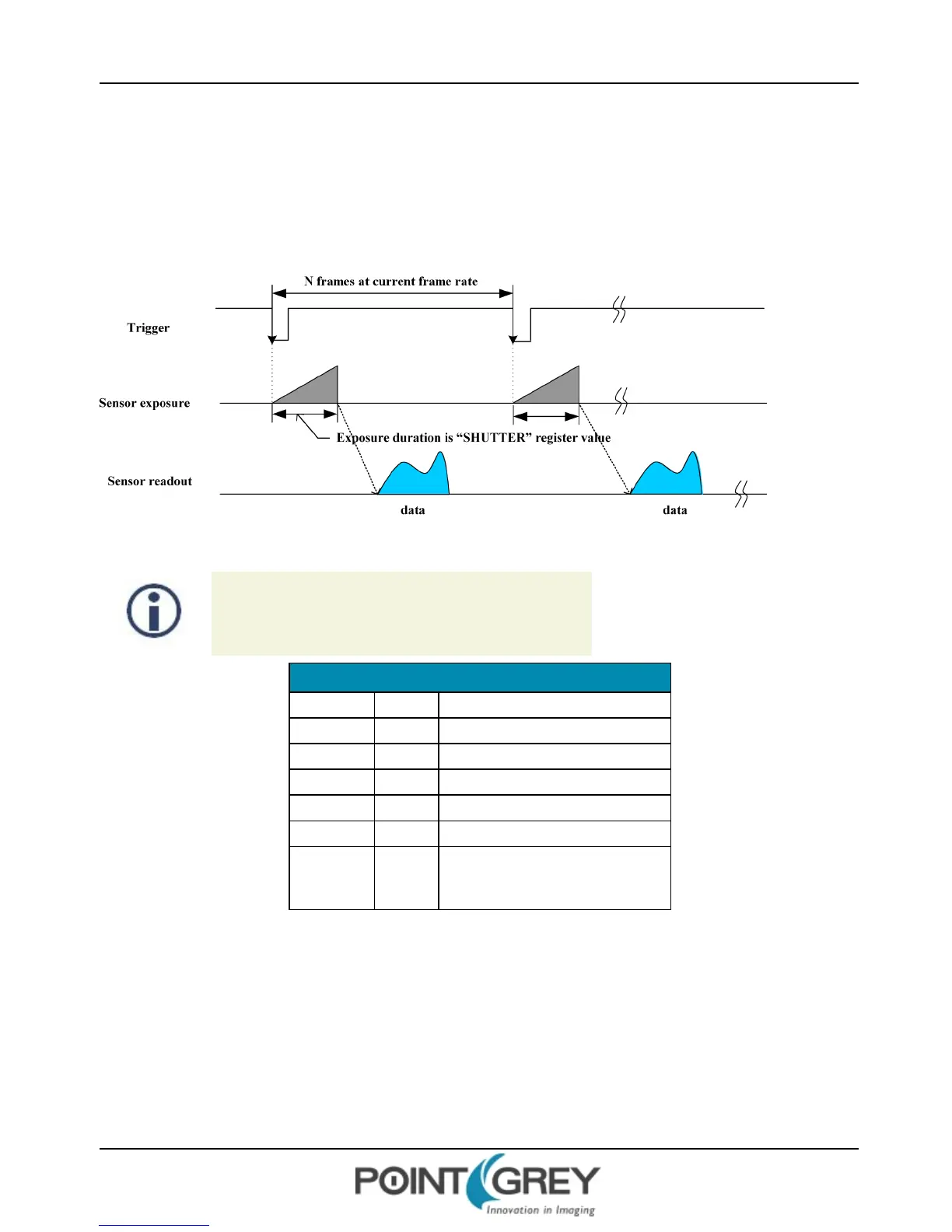

Figure 7.3: Trigger Mode 3 (“Skip Frames Mode”)
The debouncer (page 35) does not work in trigger mode
3.
Registers—TRIGGER_MODE: 830h
Presence [0] 1
ON [6] 1
Polarity [7] Low/High
Source [8-10] GPIOPin
Value [11] Low/High
Mode [12-15] Trigger_Mode_3
Parameter [20-31]
N 1 out of N images is transmitted.
Cycle time N times greater than
current frame rate
