CAMSHAFT TIMING - QUICK REFERENCE

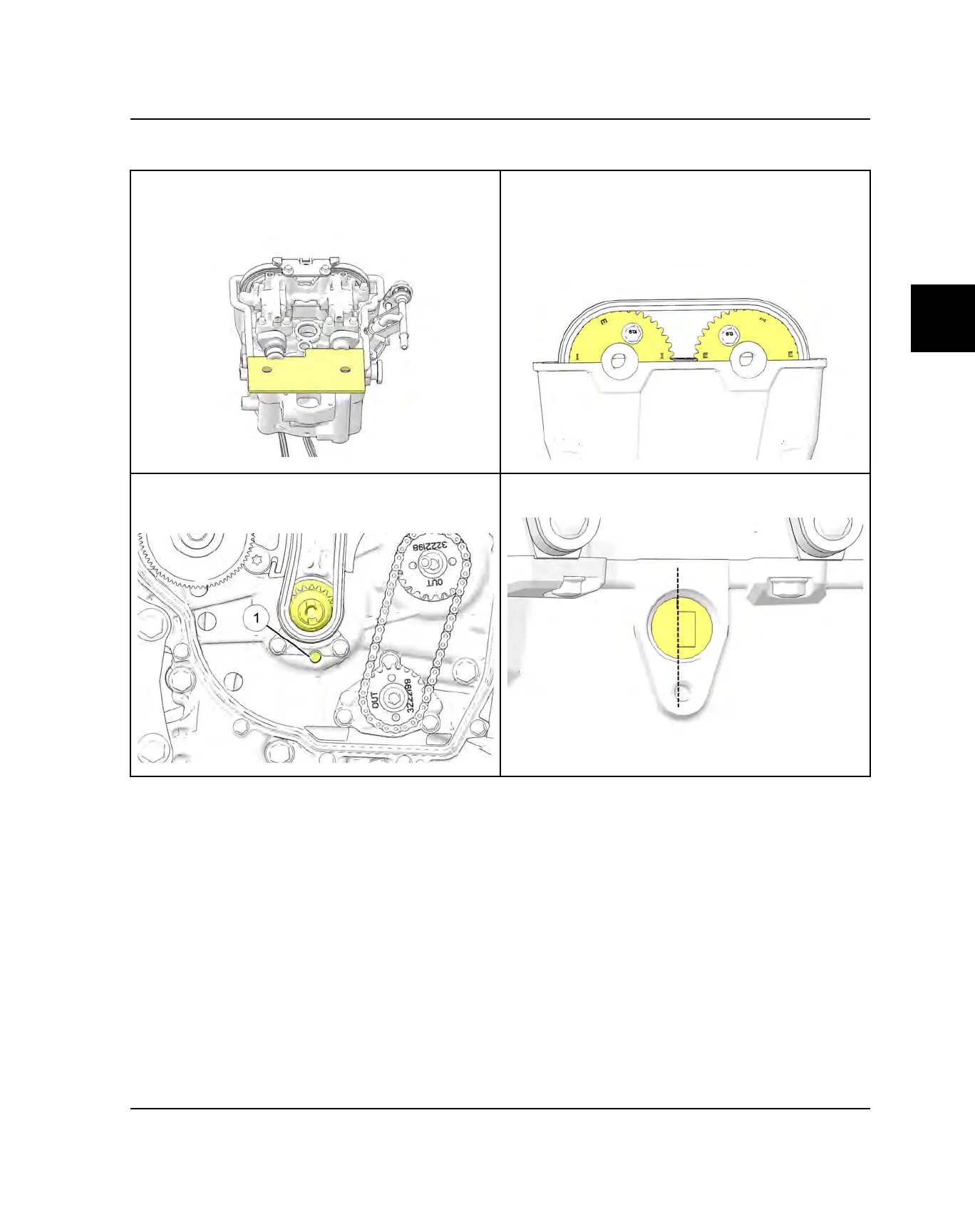

Rotate engine so the cam lobes are facing outward and
the Cylinder Holding and Camshaft Holding Plate can be
installed into the slots of the camshafts as shown.
Intake cam sprocket should have “I” marks aligned with
gasket surface and the exhaust cam sprocket should
have “E” marks aligned with gasket surface.
Stator Cover/Flywheel Removed. Flywheel Key faces
down and insert a 1/4” drive socket extension through
the crankcase and into the crankshaft locating hole
q
.
Stator Cover/Flywheel Installed. “V” marked on the
flywheel is aligned with the CPS mounting hole.
