9
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
9.19

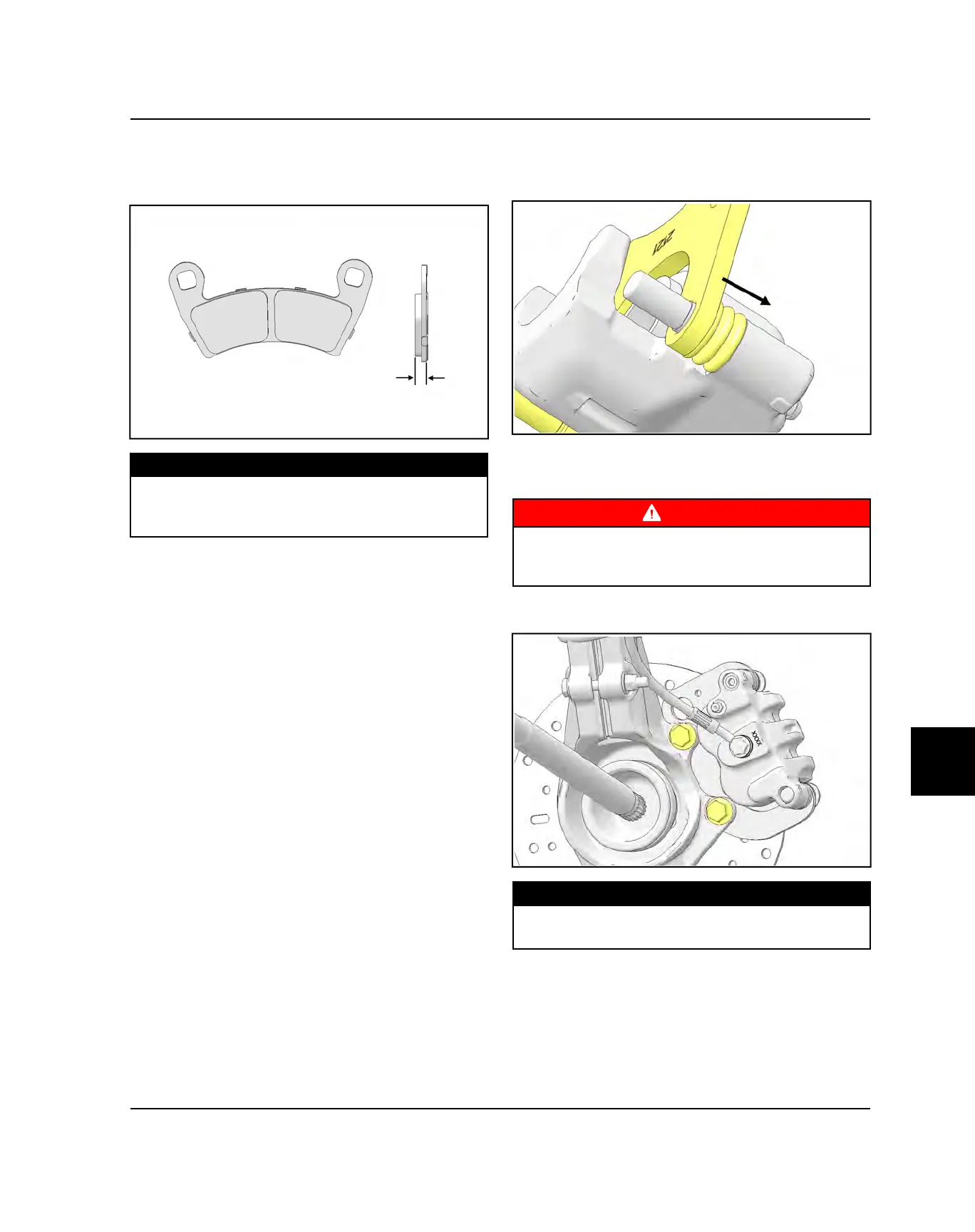

PAD INSPECTION
1. Measure overall thickness of brake pad with insulator
plate. Replace pads if worn beyond the service limit.
MEASUREMENT
Front Brake Pad Thickness:
New: .298 ± .007” (7.56 ± .178 mm)
Service Limit: .180” (4.6 mm)
PAD ASSEMBLY / INSTALLATION- CREW
1. Lubricate mounting bracket pins with a light film of
disc brake caliper lube, and install rubber dust boots.
2. Compress mounting bracket and make sure dust
boots are fully seated. Install pads with friction
material facing each other.
WARNING
If brake pads are contaminated with grease, oil, or
liquid soaked do not use the pads.
Use only new, clean pads.
3. Install caliper onto front hub and torque mounting
bolts.
TORQUE
Front Caliper Mount Bolt:
46 ft-lbs (62 Nm)
4. Slowly pump the brake pedal until pressure has been
built up. Maintain at least 1/2, (12.7 mm) of brake
fluid in the reservoir to prevent air from entering the
brake system.
BRAKE SYSTEM
