9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
5.7

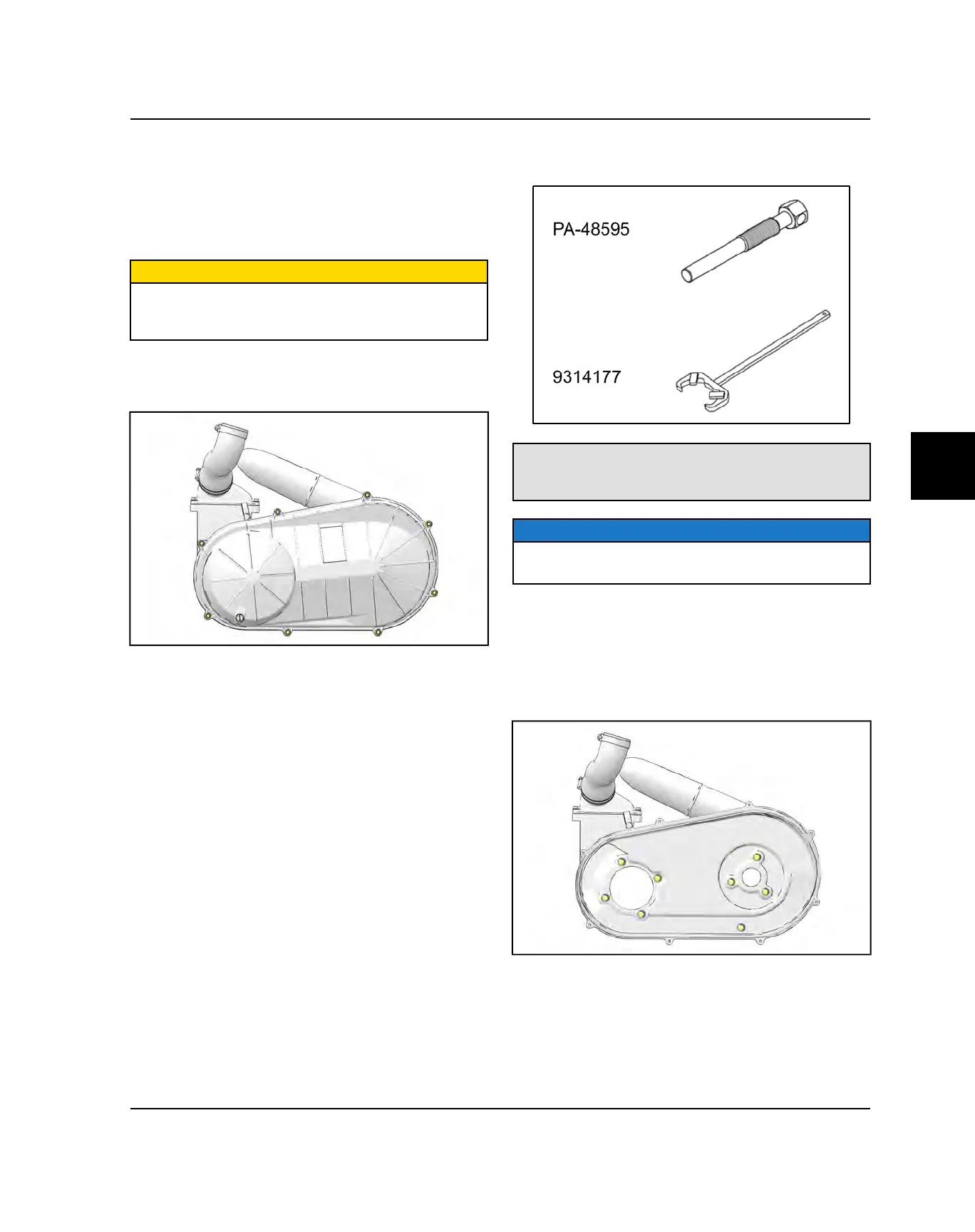

PVT DISASSEMBLY
1. Remove the seats.
2. Disconnect the (-) negative battery terminal.
3. Place transmission in neutral.
4. Raise and support the vehicle.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure.
5. Remove the left rear wheel.
6. Remove the eight clutch cover screws and remove
the outer clutch cover from the vehicle.
7. Mark the drive belt direction of rotation and remove
drive belt (see “DRIVE BELT - Belt Removal”).
8. Remove the driven clutch retaining bolt and driven
clutch assembly.
9. Install the Drive Clutch Holder.
10. Remove the drive clutch retaining bolt and remove
drive clutch using the Drive Clutch Puller.
Drive Clutch Puller PA-48595
Drive Clutch Holder 9314177
NOTE
Be sure to use the correct Drive Clutch Puller to prevent
damage to crankshaft.
11. Loosen hose clamp attaching the PVT inlet duct to
the inner clutch cover. Disengage hose from the
inner clutch cover.
12. Remove the (8) bolts that retain the inner clutch
cover to the engine and transmission. Remove inner
clutch cover. Make note of cable and hose routings
for assembly.
PVT SYSTEM
