9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
2.15
GENERAL MAINTENANCE
FRAME, NUTS, BOLTS, AND FASTENERS
Periodically inspect the torque of all fasteners in
accordance with the maintenance schedule. Check that
all cotter pins are in place. Refer to specific fastener
torques listed in each chapter.
SHIFT CABLE INSPECTION
Shift cable adjustment is necessary when symptoms
include:
• Noise on deceleration
• Inability to engage a gear
• Excessive gear clash (noise)
• Gear selector is moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged
SHIFT CABLE ADJUSTMENT
NOTE
The shift cable should be adjusted at the rear
adjustment point near the transmission. If further
adjustment is needed, remove dash panel to access the
shift cable adjustment point under the shift lever.
1. Place gear selector in neutral. Make sure the
transmission bell crank is engaged in the neutral
position detent.

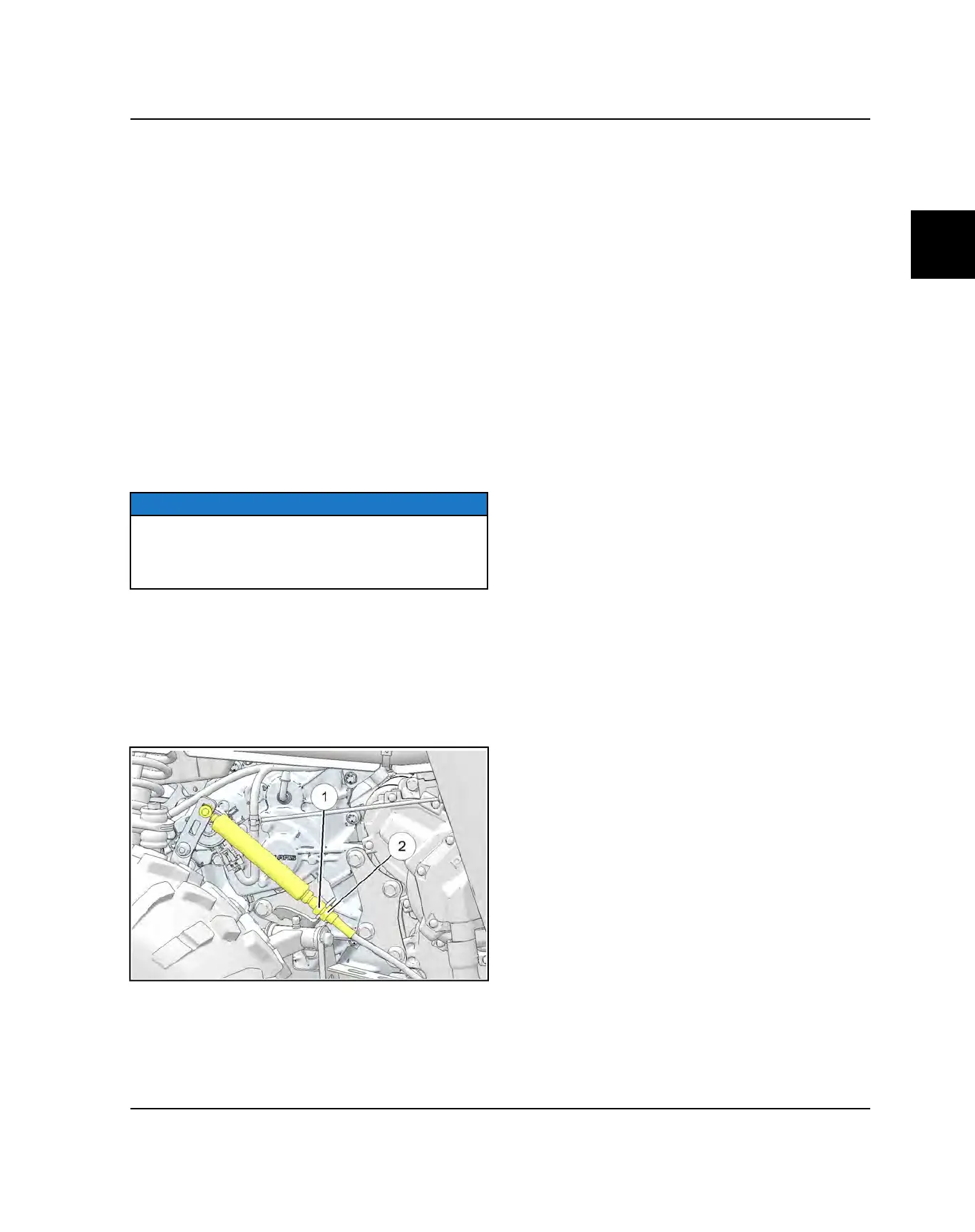

2. Locate the shift cable adjustment point at the engine-
to-transmission mount bracket.
3. With two open-end wrenches, loosen the outside jam
nut
q
counterclockwise. Turn outside jam nut 1 1/2
turns.
4. After turning the outside jam nut 1 1/2 turns, hold the
outside jam nut with a wrench and tighten the inside
jam
w
nut clockwise, until it is tight against the
bracket.
5. Repeat Step 3 and Step 4 until the proper
adjustment is made to the shift cable.
MAINTENANCE
