10.If continuity to ground on the shield is in specification,
inspect harness routing compared to a known good
vehicle, as well as for accessories that may create
interference. Routing close to ignition cables, stator
wires, or HID bulbs and other high voltage
accessories may cause issues.
NOTE
It should be noted that dynamic operation is what is
read by the ECU, not static testing like resistance
measuring as advised here. While the static tests
advised will lead to properly diagnosing almost all
situations, there are failure modes that will not be
noticed by resistance testing and still set trouble codes.
If there are concerns, please contact Technical Service
for guidance.
AIR GAP TEST
NOTE
The CPS air gap is non-adjustable, however
differences in air gap readings may indicate an
improper or damaged CPS sensor
q
or flywheel
w
. If
improper components are suspected, compare the
components to known good components.

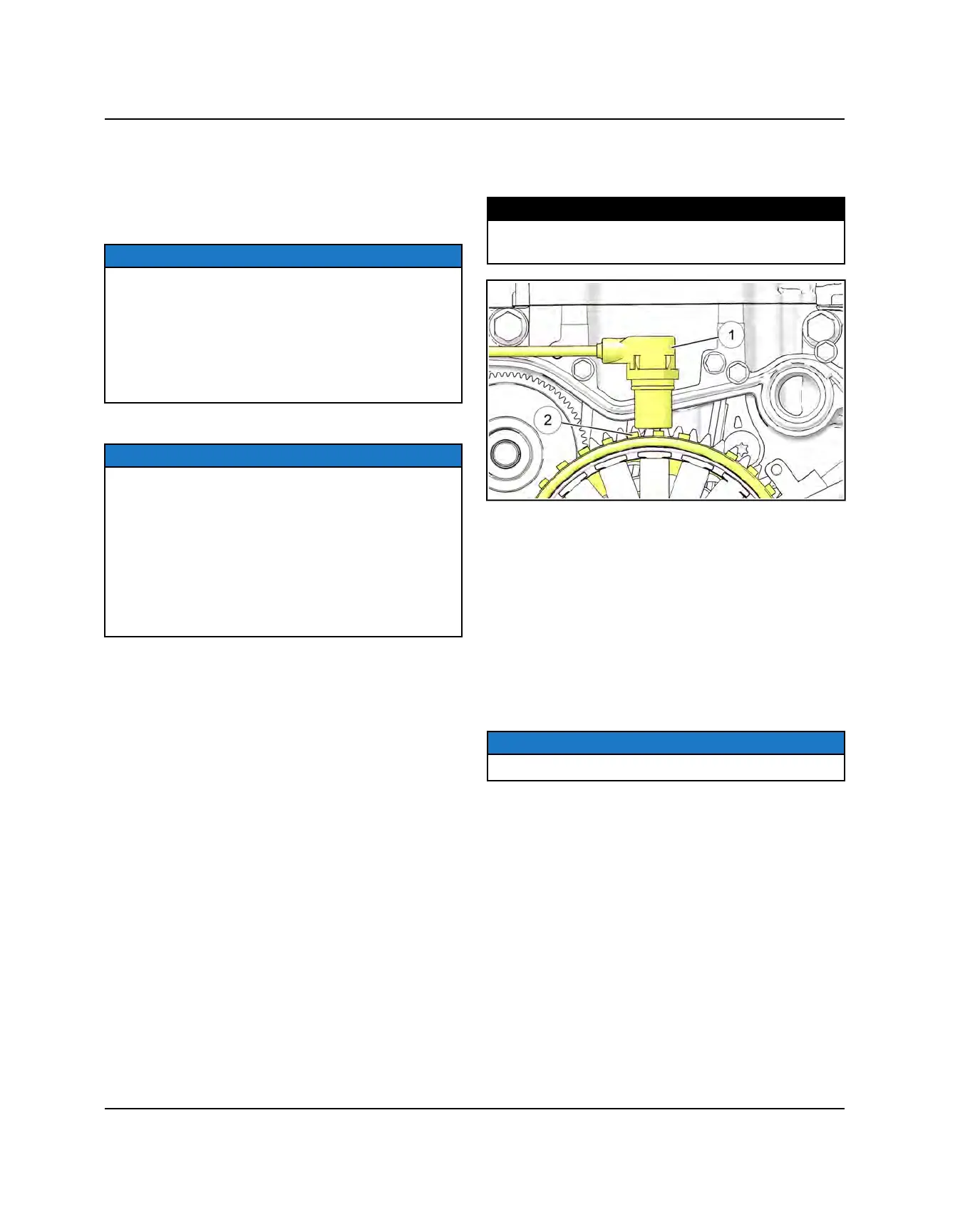

Measuring the air gap between the CPS sensor
q
and
flywheel encoder
w
must be done using multiple
measurements as the stator cover design does not
allow direct air gap measurement.
1. Disconnect the CPS
q
from the main harness.
2. Remove the CPS.
3. Measure the distance between the sensor mounting
flange and the bottom face of the sensor.
4. Rotate the engine until a tooth of the encoder
flywheel is positioned in line with the CPS mounting
location.
5. Using a depth gauge, measure the distance from the
encoder flywheel tooth to the mounting surface of the
CPS.
6. Subtract the sensor length from the sensor mounting
point to encoder flywheel measurement. Verify that
the calculated air gap is within specification.
MEASUREMENT
CPS Air Gap:
1.0 ± 0.26 mm (0.059 ± 0.010″)
• If the resistance and air gap is correct proceed to
Encoder Flywheel / Keyway Inspection.
• If the air gap is incorrect, compare the CPS flange
to sensor face measurement to a known good
sensor. If the sensor is correct proceed to Encoder
Flywheel / Keyway Inspection.
• Is the CPS sensor is incorrect, follow the “CPS
Replacement” procedure.
ENCODER FLYWHEEL / KEYWAY INSPECTION
1. Access the CPS.
2. Disconnect the CPS from the main wiring harness.
3. Drain the coolant.
NOTE
Properly dispose of the coolant.
4. Disconnect the coolant hose at the water pump.
5. Remove the fasteners retaining the stator cover.
