8.14
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
3. Remove upper strut pivot assembly.
4. Remove coil spring and collapse strut cartridge.
5. Remove two pinch bolts from strut casting.
6. Remove strut cartridge.
7. Install cartridge until bottomed in strut casting.
8. Install pinch bolts with wire clamp (s) and torque to
specification.
TORQUE
Strut Pinch Bolt:
26 ft-lbs. (35 Nm)
9. Reassemble spring and top pivot assembly. Be sure
all parts are installed properly and seated fully.
10. Torque strut rod nut to specification. Do not over
torque nut.
TORQUE
Strut Mounting Nut (top):
15 ft-lbs (21 Nm)

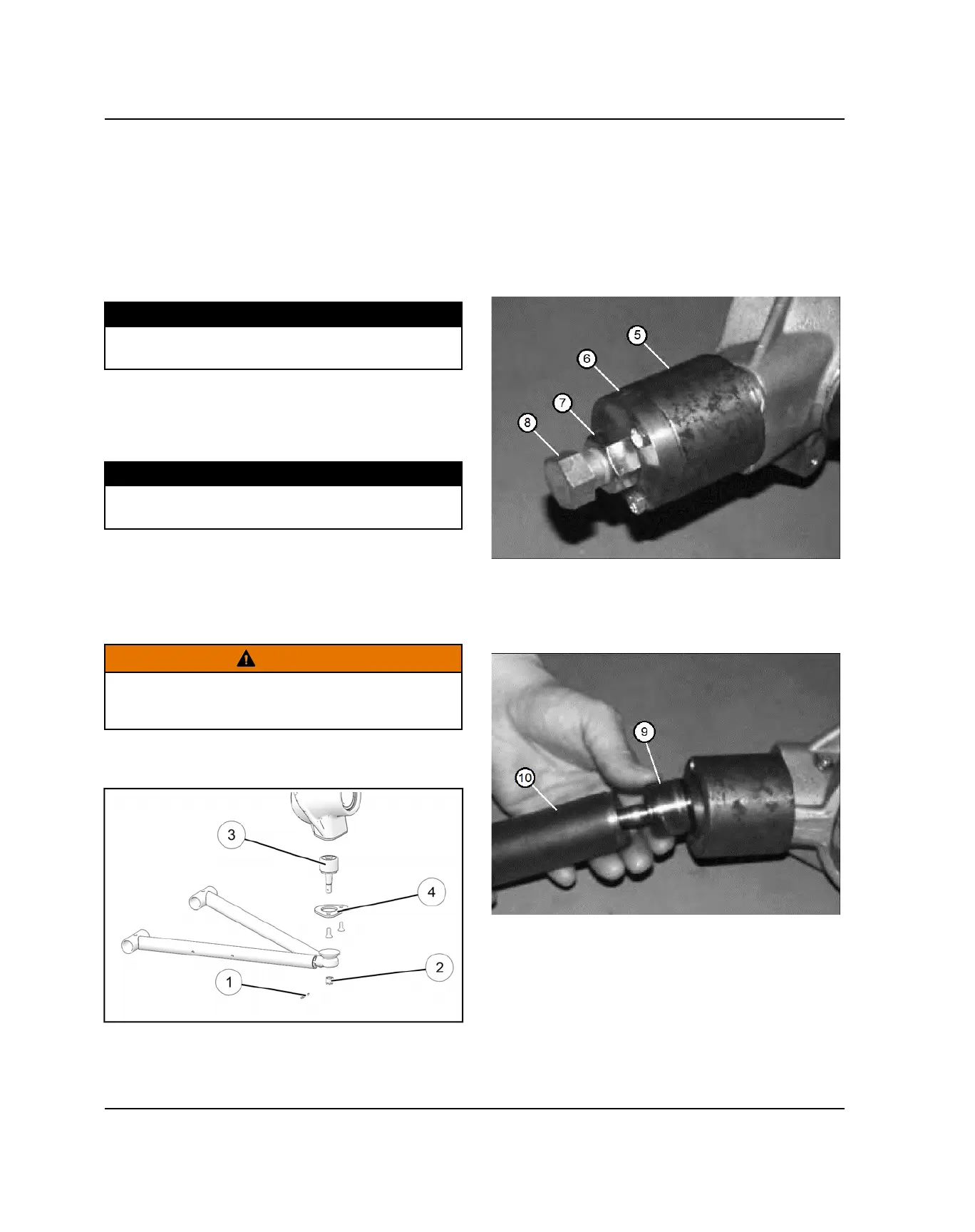

BALL JOINT REPLACEMENT
1. Loosen front wheel nuts slightly.
2. Elevate and safely support machine under footrest/
frame area.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure.
3. Remove wheel nuts and wheels.
4. Remove cotter pin
q
from ball joint castle nut.
5. Remove castle nut
w
and separate A-arm from ball
joint stud
e
.
6. Remove screws and ball joint retaining plate
r
.
7. Using ball joint removal/installation tool kit (PN
2870871), remove ball joint from strut housing.
• Install puller guide
t
with extension cap
y
.
• Apply grease to extension cap and threads of puller
bolt to ease removal.
• Thread bolt
u
with nut
i
onto ball joint stud as shown.
• Apply heat to ease removal.
• Hold bolt and turn nut clockwise until ball joint is
removed from strut housing.
8. To install new ball joint:
• Remove extension cap and attach puller guide using
short bolts provided in the kit.
• Insert new ball joint
o
into driver
a
.
• Slide ball joint / driver assembly into guide.
• Apply heat to ease installation.
• Drive new joint into strut housing until fully seated.
STEERING / SUSPENSION
