9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
7.11

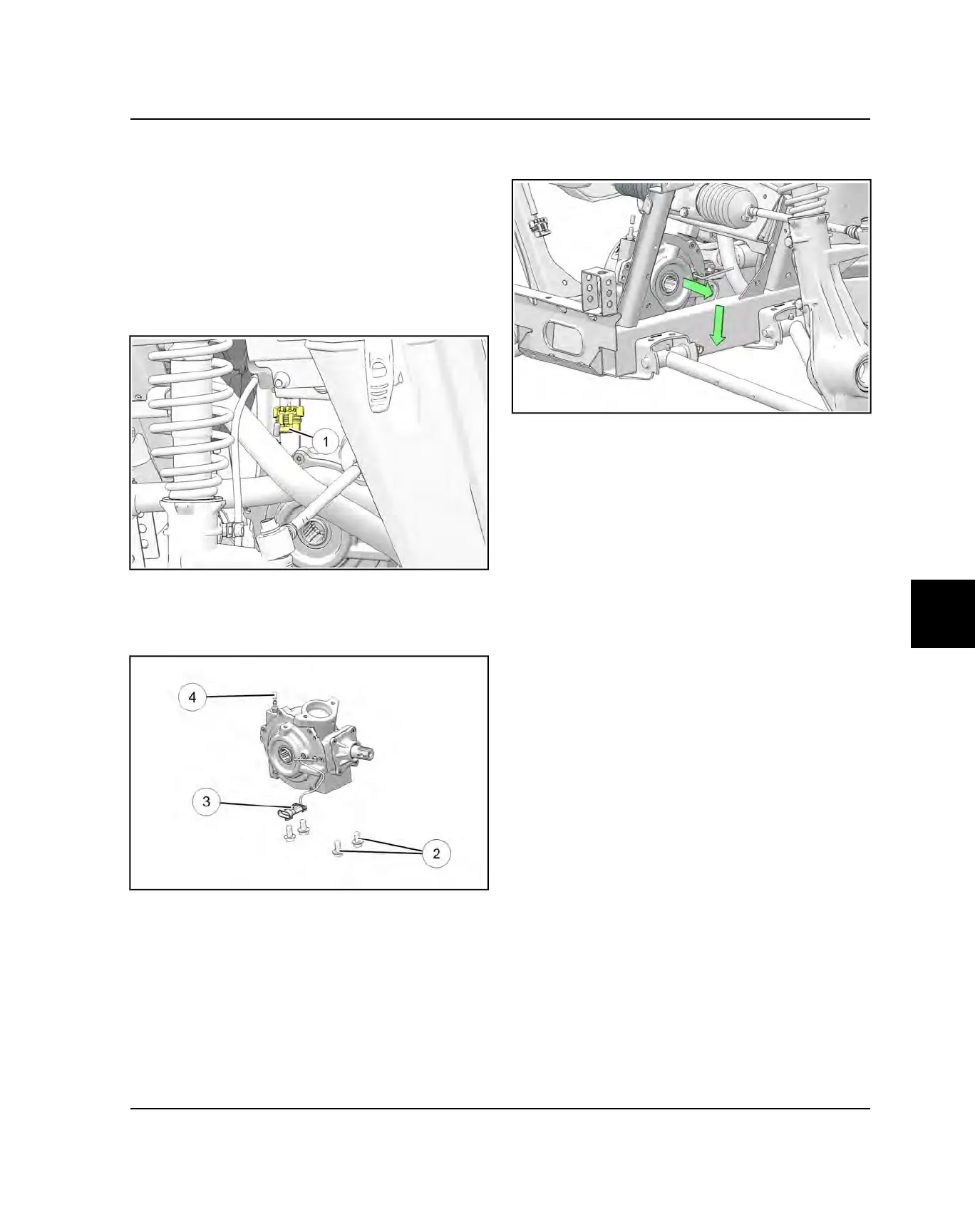

GEARCASE REMOVAL
1. Stop engine and place gear selector in Park.
2. Refer to “FRONT DRIVE SHAFT - Drive Shaft
Removal” and remove both front drive shafts from
the front gearcase.
3. Remove the propshaft from the front gearcase. (see
“PROPSHAFT SERVICE”).
4. Disconnect the wire harness above the front
gearcase (Item 1) and remove the harness (Item 3)
from the retaining dart.
5. Remove the vent line (Item 4) from the front
gearcase.
6. Remove the (4) bolts (Item 2) securing the front
gearcase to frame.
7. Remove the gearcase from the front LH wheel well
area and slide it between the upper and lower A-arm.
FINAL DRIVE
