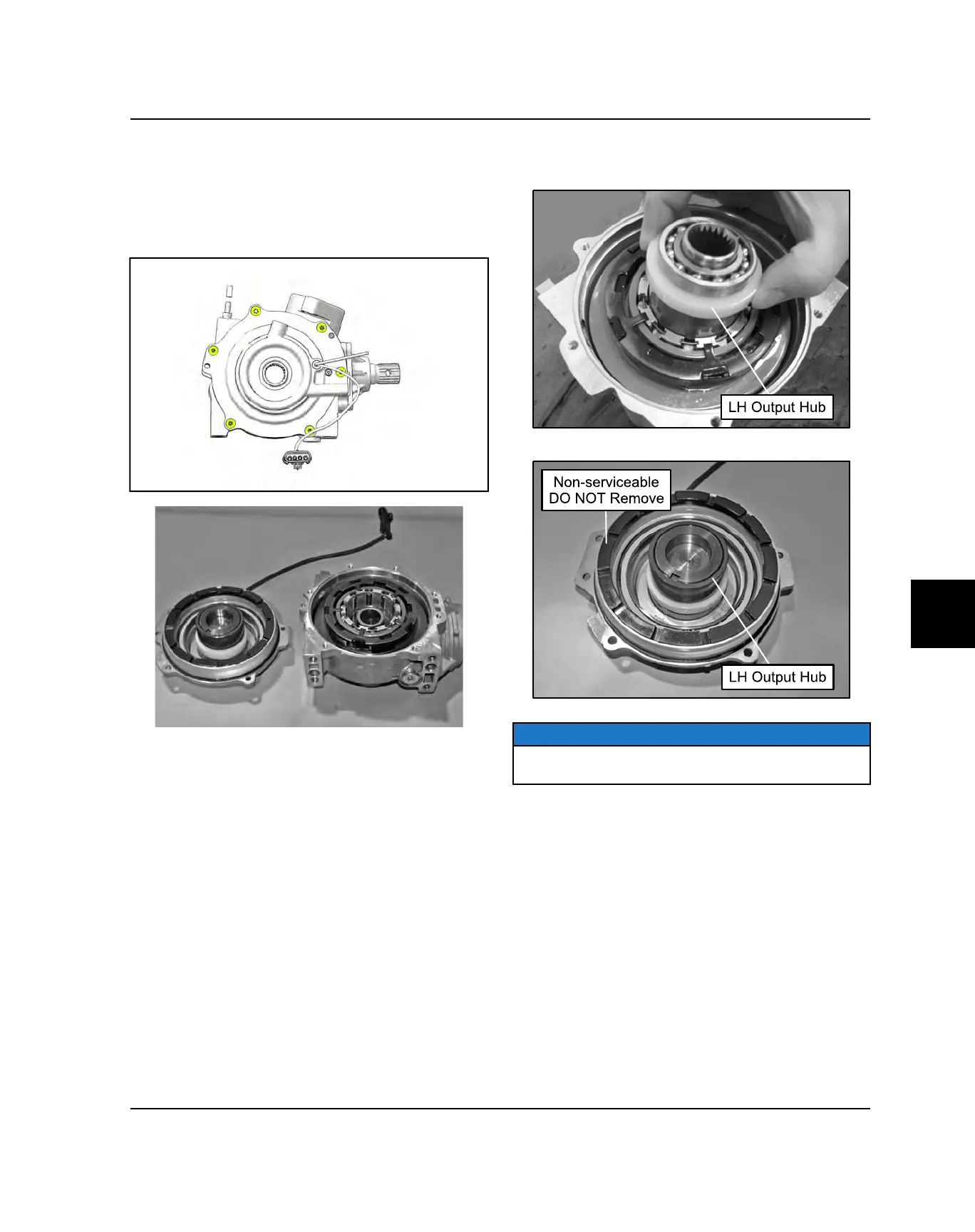

GEARCASE DISASSEMBLY / INSPECTION

1. Drain and properly dispose of gearcase fluid.

Remove any metal particles from the drain plug

magnet.

2. Remove the (7) cover screws and remove the cover

plate assembly.

3. Remove the LH output hub assembly from the clutch

housing or outer cover plate assembly.

NOTE

Nylon spacer is non-serviceable and should not be

removed.
