9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual

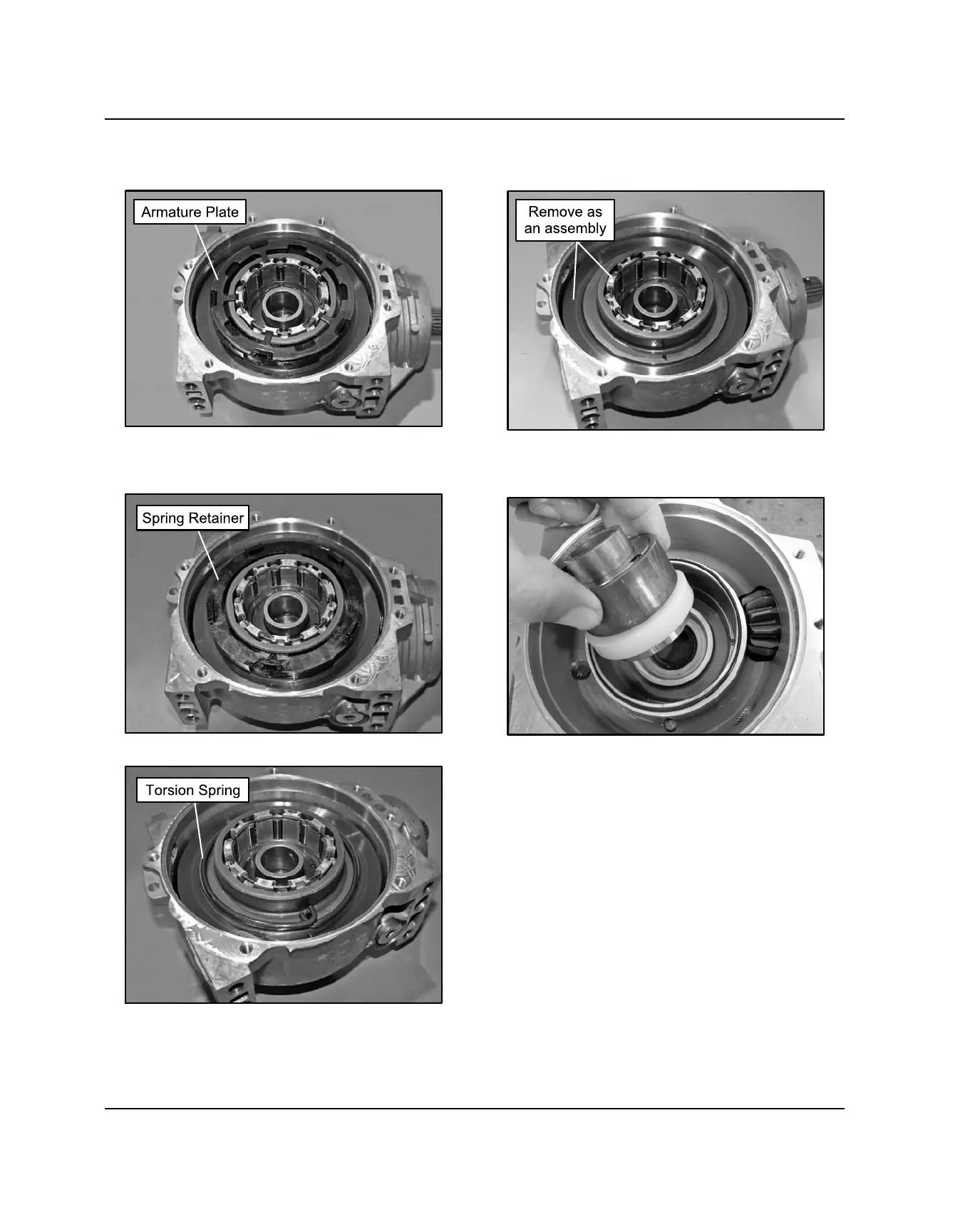

4. Remove and inspect the armature plate. Refer to

“AWD Diagnosis” for detailed inspection process.

5. Remove the torsion spring retainer and torsion

spring from the top of the ring gear.

6. Remove the clutch housing / ring gear and roll cage

assembly from the gearcase housing.

7. Remove the RH output hub assembly from the

gearcase housing.

FINAL DRIVE

Polaris RANGER ETX INTL 2015 - Page 410
