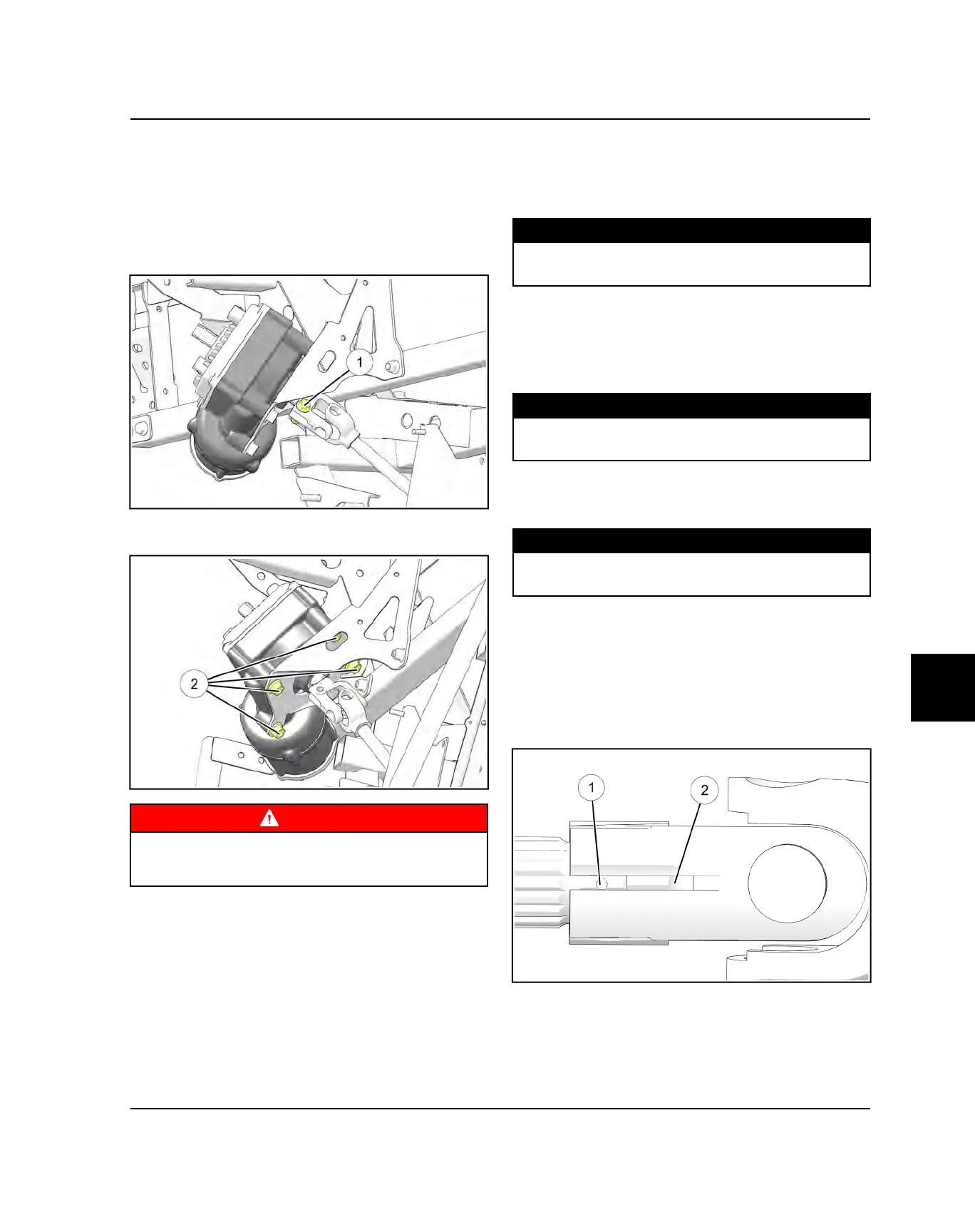

POWER STEERING UNIT REMOVAL
1. Remove upper steering shaft and steering wheel
(See Steering Wheel / Upper Steering Shaft
Removal (EPS), page 8.10).
2. Using a 15 mm socket, remove the fastener
q
retaining the lower steering shaft to the power
steering unit.
3. Remove the four fasteners
w
retaining the power
steering mount to the power steering unit.
WARNING
Electronic Power Steering (EPS) units are not
interchangeable between ATV and RANGER product
lines.
POWER STEERING UNIT INSTALLATION
1. Install the power steering unit onto the mount bracket
and torque power steering mounting bolts to
specification.
TORQUE
EPS Unit Mount Bolts:
30 lb-ft (41 Nm)
2. Align the skip-tooth spline on the power steering
output shaft with the opening in the lower power
steering shaft.
3. Install power steering to mount assembly and torque
fasteners to specification.
TORQUE
EPS Unit Frame Bolts:
14 lb-ft (19 Nm)
4. Install the pinch bolt retaining the lower power
steering shaft to the power steering unit. Torque to
specification.
TORQUE
EPS Unit Pinch Bolts:
15 lb-ft (20 Nm)
5. Position the steering wheel, pivot tube and upper
steering shaft assembly to the proper mounting
location.
6. Be sure the front wheels are pointing straight ahead
and that the steering wheel is straight. Align the skip-
tooth spline
q
on the power steering input shaft with
the opening
w
in the upper steering shaft and install
the upper shaft onto the power steering input shaft.
