9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
10.3
CHASSIS / BODY

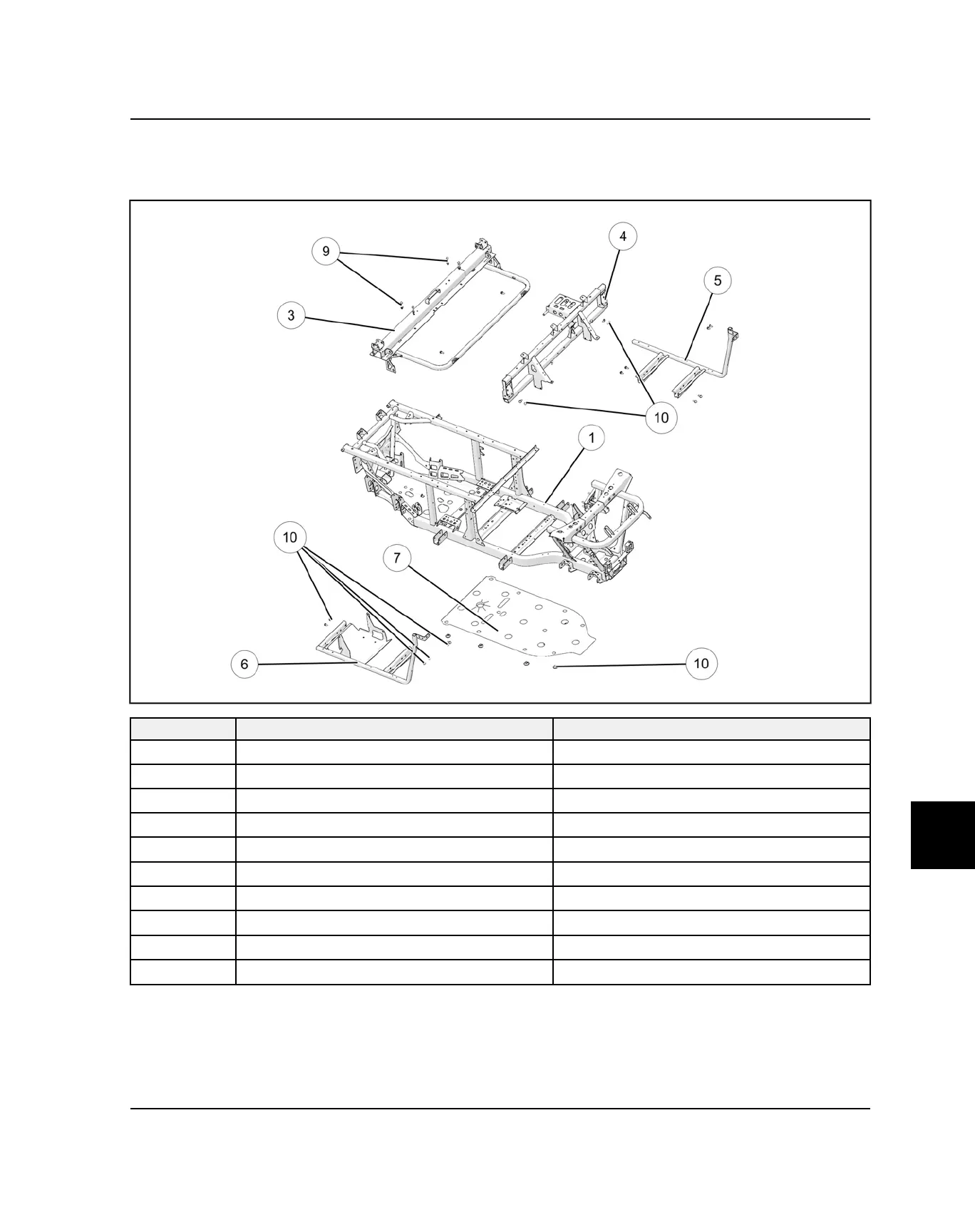

FRAME ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Main Frame
w
Front Bumper
e
Seat Base Frame
r
Dash Support
t
Left Floor Support
y
Right Floor Support
u
Skid Plate
i
Bumper Screen
o
Screws Torque to 22 ft-lbs (30 Nm)
a
Screws Torque to 8 ft-lbs (11 Nm)
BODY / FRAME
