FOOT BRAKE PEDAL
PEDAL REMOVAL

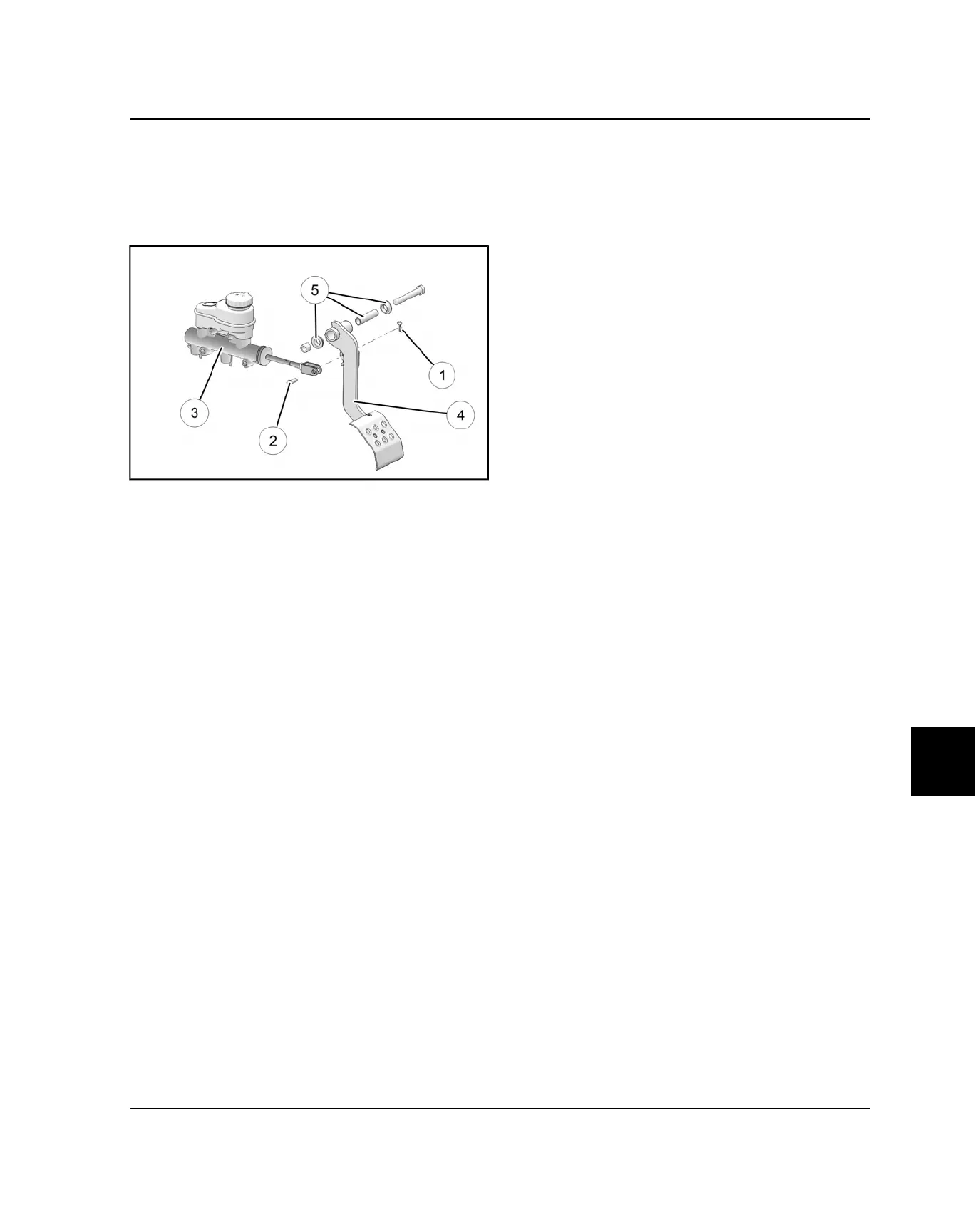

1. Remove the retaining clip
q
and clevis pin
w
from
the master cylinder
e
to free it from the brake pedal
r
.
2. Remove the brake pedal pivot fastener and bushings
t
off the mount bracket.
PEDAL INSTALLATION
1. Reverse steps for foot brake installation.
2. Tighten pivot bolt sufficiently. Refer to the general
torque specifications in Chapter 1.
