9.14
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
FRONT CALIPER - RANGER

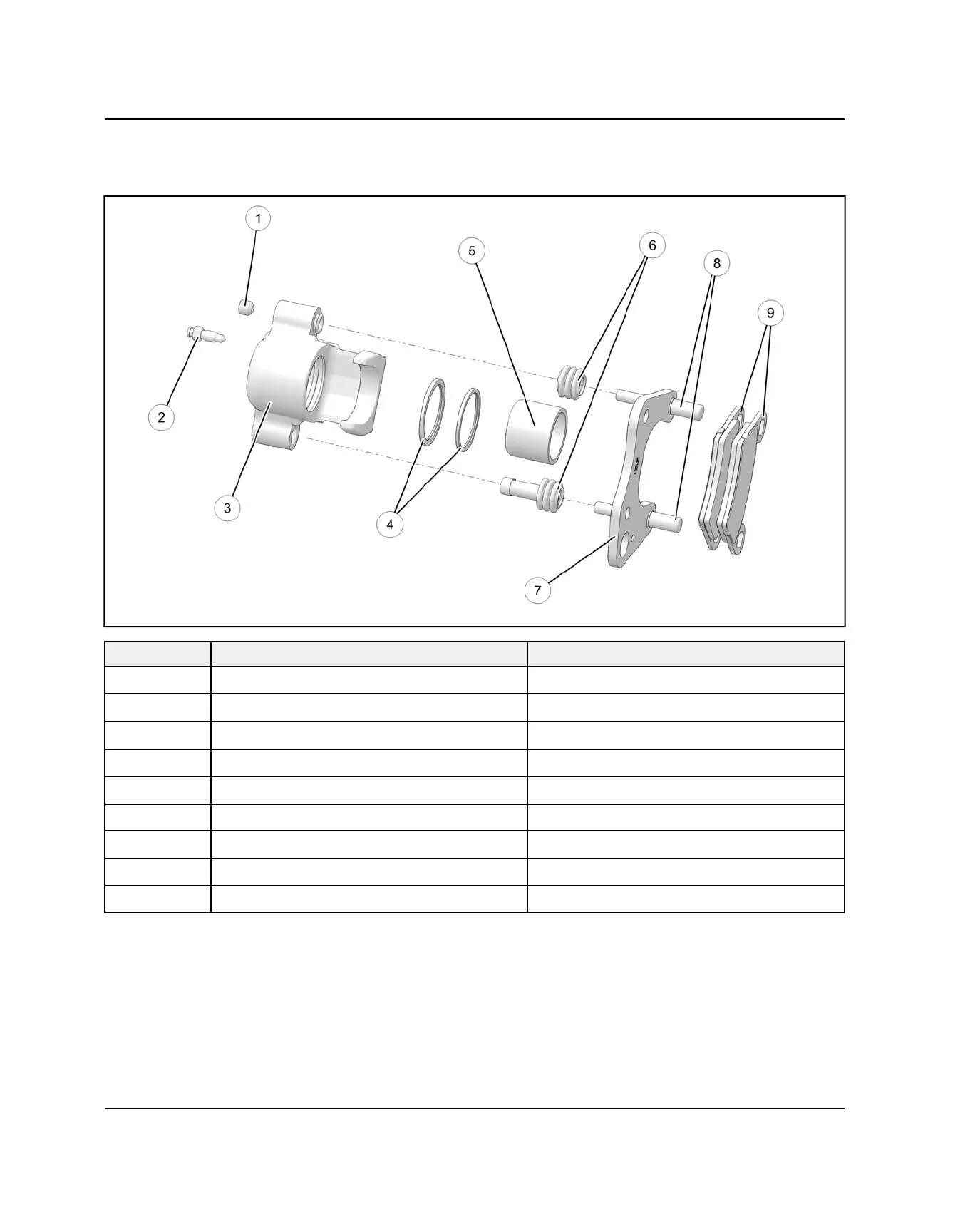

FRONT CALIPER ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Adjuster Screw
Finger Tighten
w
Bleeder Screw 30–60 in-lbs (3.4–6.8 Nm)
e
Caliper Body
r
Square O-Rings
Apply Polaris Dot 4 Brake Fluid
t
Piston Apply Polaris Dot 4 Brake Fluid
y
Dust Boots
u
Caliper Bracket
i
Caliper Pins Apply Brake Disc Caliper Lube
o
Pads
BRAKE SYSTEM
