BOX REMOVAL

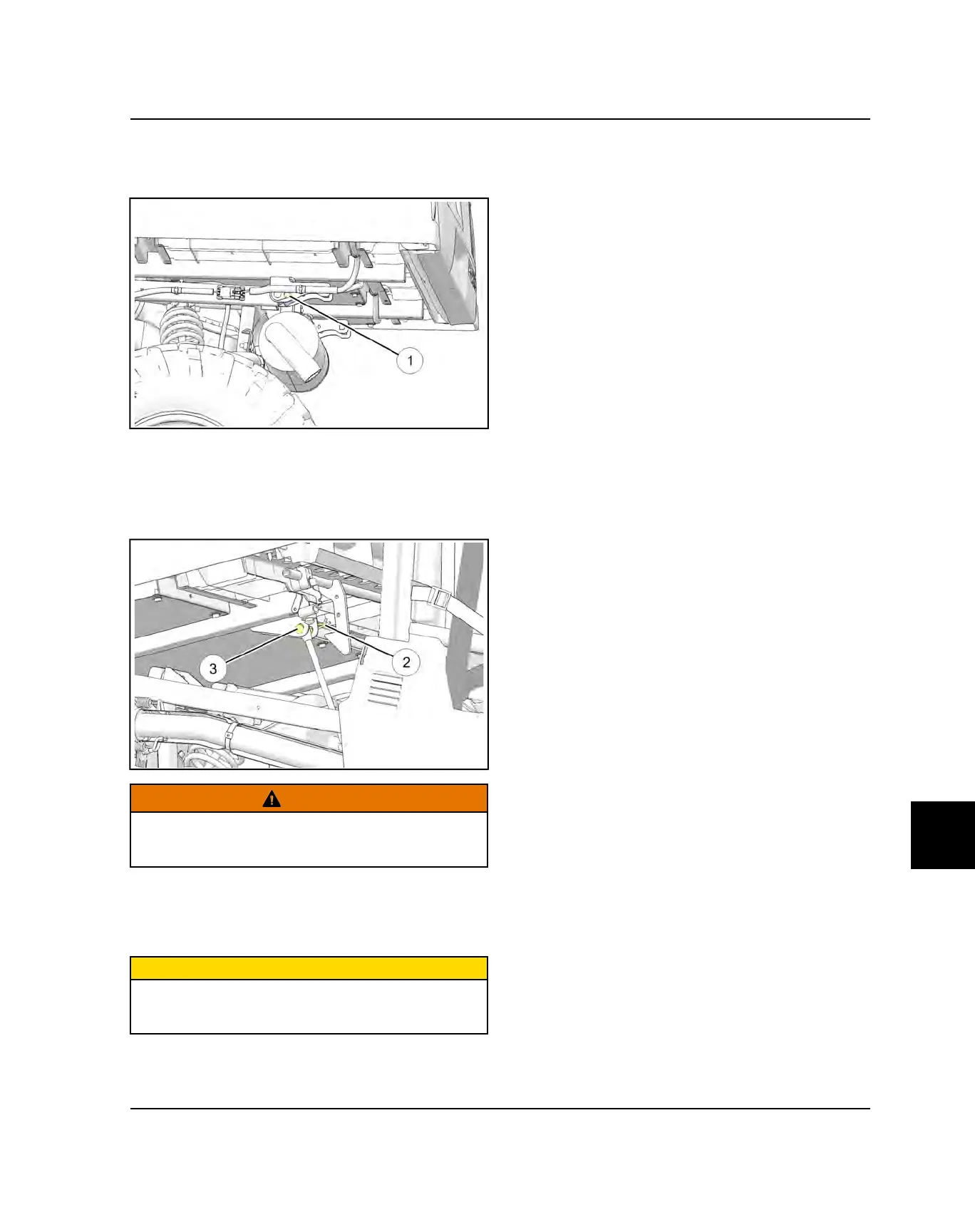

1. Remove the screw
q
that secures the hinge pin to
the frame on both sides.
2. Lift the cargo box into the dump position.
3. Disconnect the rear wire harness attached to the tail
lights.
4. Remove the upper clip
w
and pin
e
attaching the
shock to the cargo box.
CAUTION
Safely support the box during the remainder of the
removal process. The box is not as stable with the
shock removed.
5. Remove the hinge pin from both sides.
6. With both hinge pins removed, remove the box from
the frame. Two people may be needed to remove the
box from the frame.
CAUTION
Use caution when removing the box. It is recommended
to have two people carefully remove the box from the
frame.
BOX INSTALLATION
1. If the shock was replaced, install the lower portion of
the shock to the frame and secure it with the pin and
clip.
2. Place the cargo box onto the frame. Align the hinges
of the box with the bracket on the frame.
3. Install the box hinges on both sides.
4. Secure the box hinges with the hinge screws on both
sides.
5. With the hinges installed, attach the shock to the
cargo box by inserting the pin and clip.
6. Lower the box and secure the latch.
